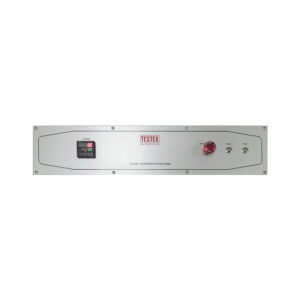

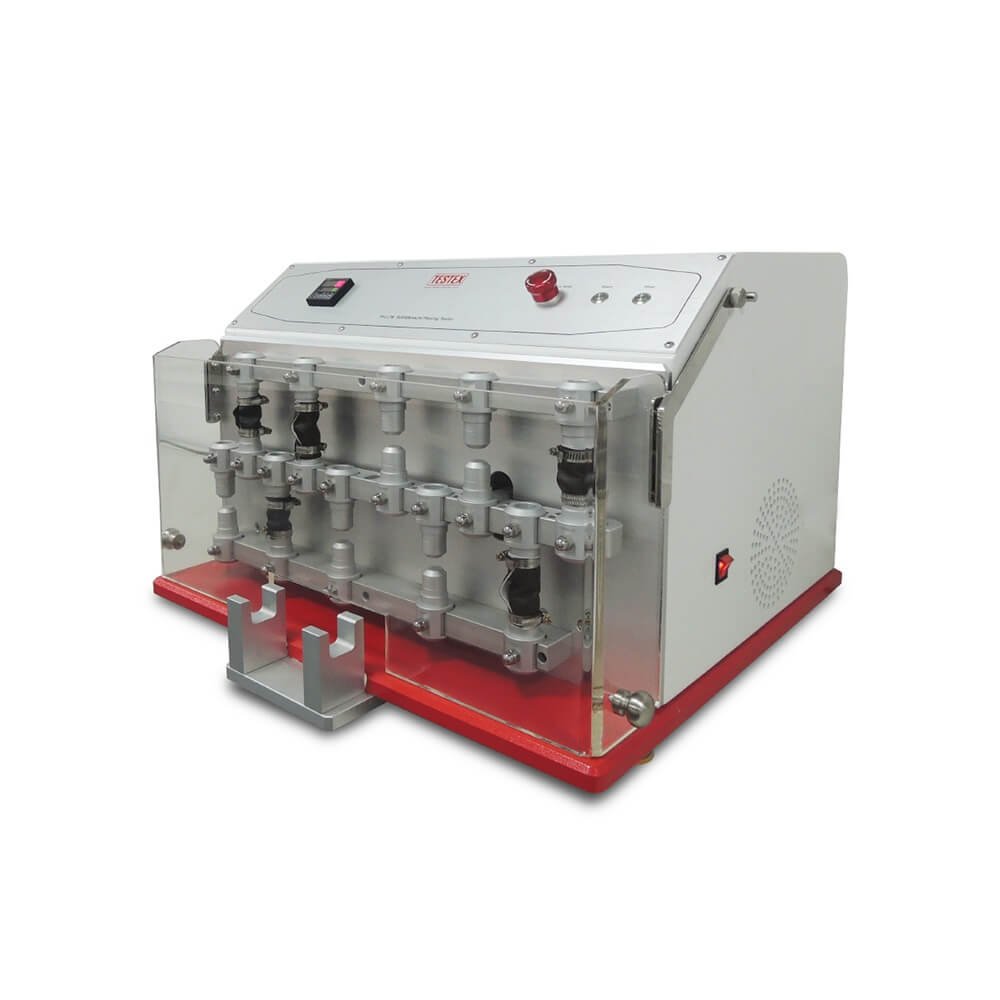

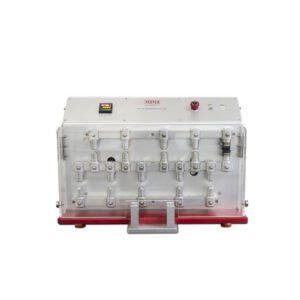

TF117B Schildknecht Flexing Tester

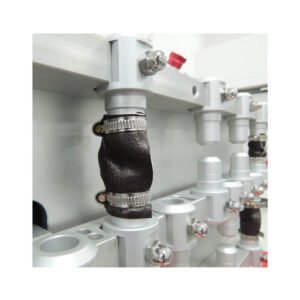

Description: The TF117B Schildknecht Flexing Tester evaluates the resistance of coated fabrics to damage from flexing at 500 cycles per minute. It accommodates 10 specimens and includes a resettable electronic counter to track cycles. It is also used to test compression-folding (Schildknecht) flex cracking resistance of medical protective clothing, followed by testing with the TF163C Hydrostatic Head Tester for water penetration under pressure.
Specifications:
- Counter: 1–999,999 times
- Power Supply: 220V, 50 Hz
- Gross Weight: 156 kg
- Dimensions: 890 x 810 x 690 mm (L x W x H)
Standards:
- EN 14325
- EN ISO 7854 Method B
- ISO 7854 Method B
- GB/T 12586 Method B
