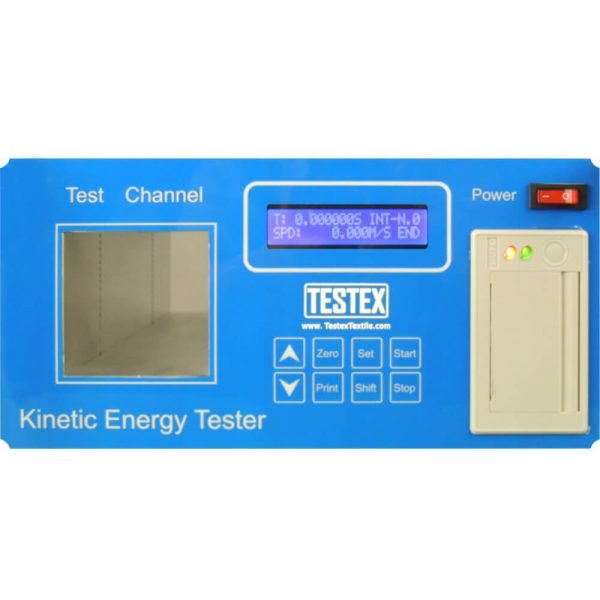

TT824 Toy Kinetic Energy Tester
Description: The TT824 Toy Kinetic Energy Tester evaluates the kinetic energy of toy projections that could cause injury if a child falls on them, such as unprotected axle ends, actuating levers, or decorative features. It is also used to test the speed of bullets discharged from toy guns or catapults, with kinetic energy values calculated and displayed after passing through internal or external testing channels.
Specifications:
- Display: 7 digits (0.000001 sec)
- Display Range: 0.000001 to 9.999999 sec
- Projectile Size:
- Larger than 1 mm diameter
- Smaller than 40 mm diameter (for internal sensor)
- Sensors Distance:
- Fixed: 100 mm (internal sensor)
- Adjustable: 40–400 mm (external sensor)
- Power Supply: 220V, 50/60 Hz, 3A
- Weight: 12 kg
- Dimensions: 490 x 450 x 300 mm (L x W x H)
Standards:
- ASTM F963 8.14
- ISO 8124-1 5.15
- GB 6675 A.5.15
