Yarn preparation & count testing

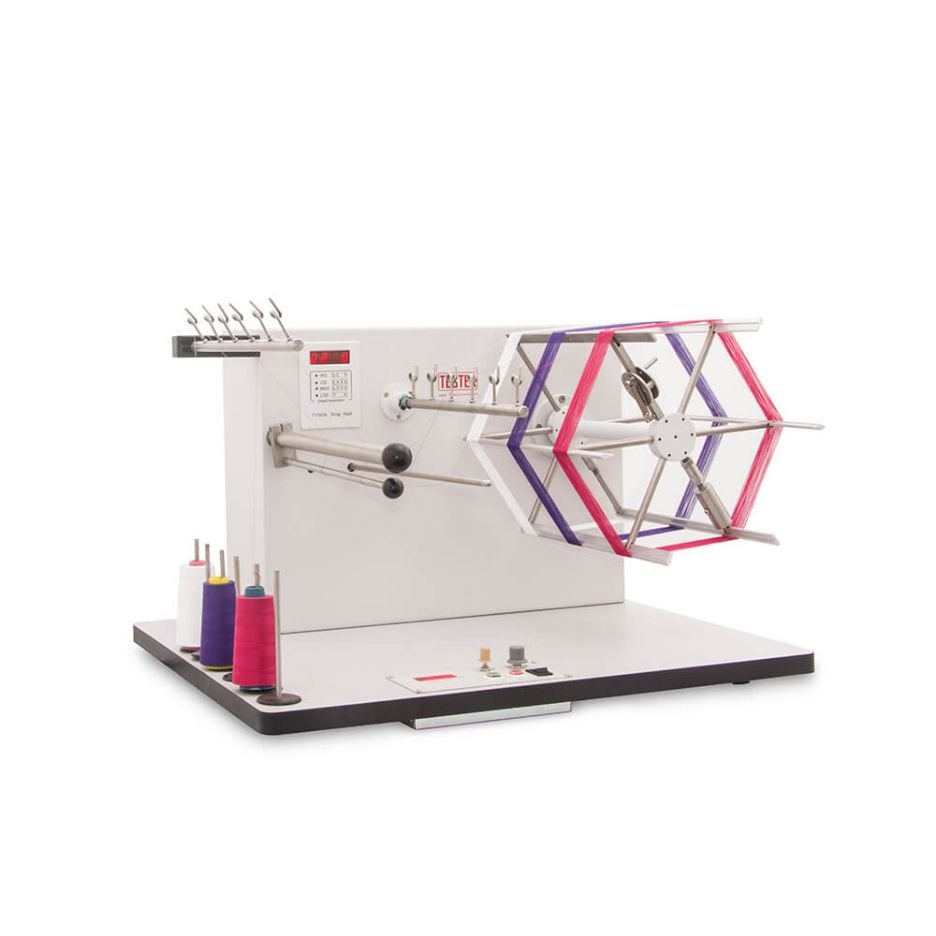

TY360A/B Wrap Reel
Produce consistent yarn skeins with a predetermined length and number of turns for accurate count and strength testing.

View Product Details →
Request a Consultation

TY360A&TY360B

6 stationsprepare multiple skeins efficiently
1–9,999adjustable number of wraps
Variable speedcontrolled winding for different yarns
35 mmreciprocating traverse distance

Purpose-built yarn preparation
Consistent skeins support reliable yarn testing
A collapsible swift, pre-tension device, yarn stand and digital counter help laboratories prepare repeatable specimens for count and strength analysis.

01Predetermined lengthPrepare skeins to the required circumference and turn count for standardized testing.
02Six-station productivityWind multiple yarn specimens in one controlled preparation cycle.
03Controlled tensionUse the integrated yarn stand and pre-tension device to support consistent specimen formation.

Choose the required reel
TY360A or TY360B
The two models share the same six-station platform while providing different reel circumferences for metric and imperial laboratory methods.
ISO 2060ASTM D1907GB/T 4743GB/T 14343GB/T 6838

ParameterTY360ATY360B
Circumference1000 ± 1 mm54 ± 1/16 inch
Wraps1–9,999 adjustable1–9,999 adjustable
Stations66
Reel speedVariableVariable
Spindle spacing60 mm60 mm
Gross weight68 kg75 kg
Dimensions940 × 770 × 680 mm1020 × 770 × 740 mm
Power220/110 V · 50/60 Hz220/110 V · 50/60 Hz

Laboratory applications
Prepare samples across common yarn programs
Designed for laboratories, mills, inspection teams and research facilities working with yarns and filament materials.

◉Yarn count determination
◎Strength-test skein preparation
◇Fiber filament evaluation
▦Routine mill quality control

Available equipment
Explore the TY360A/B Wrap Reel
Open the product page for complete specifications and consultation options.

Need the right reel configuration?Tell us your standard, yarn type and laboratory workflow.
Request a Wrap Reel Consultation →
