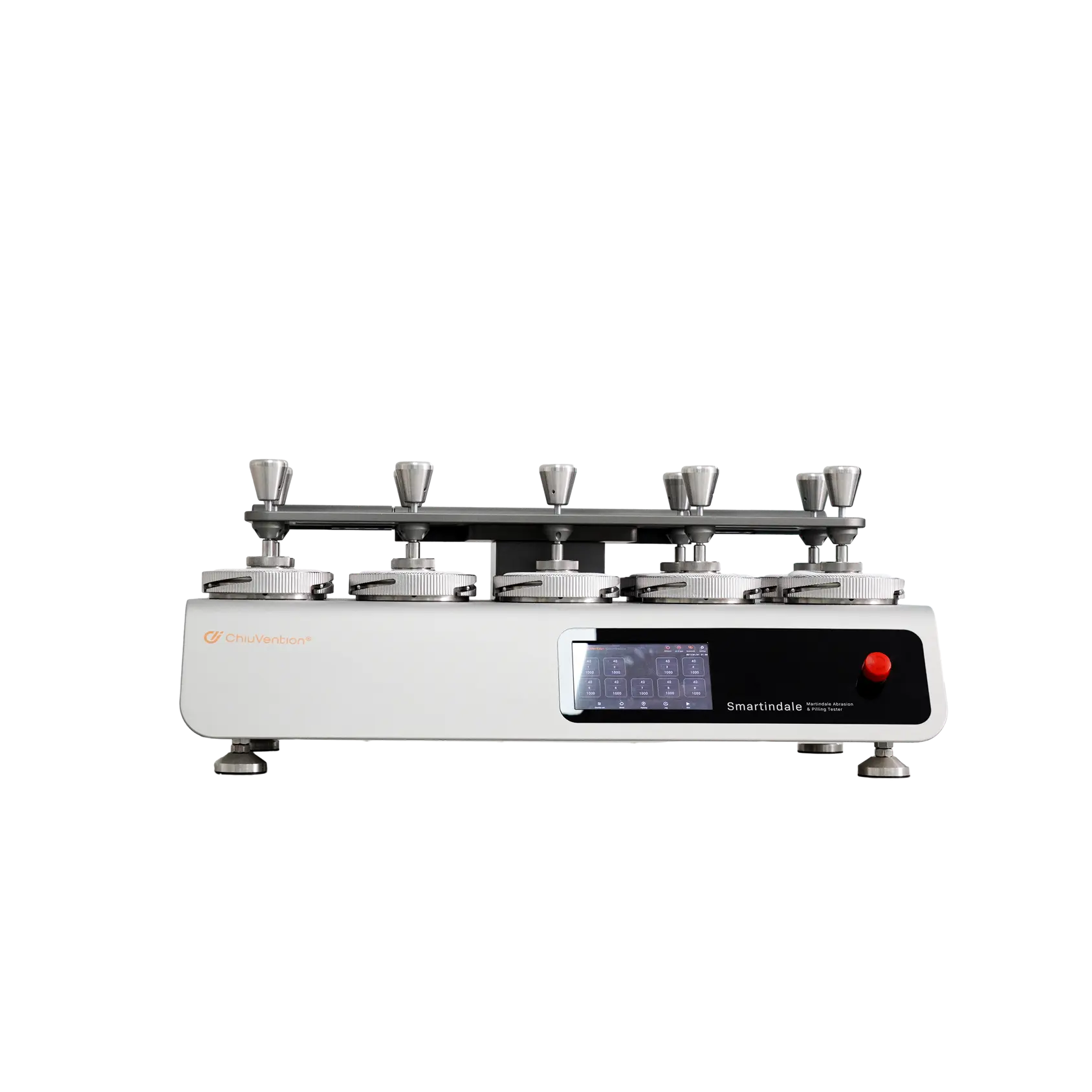

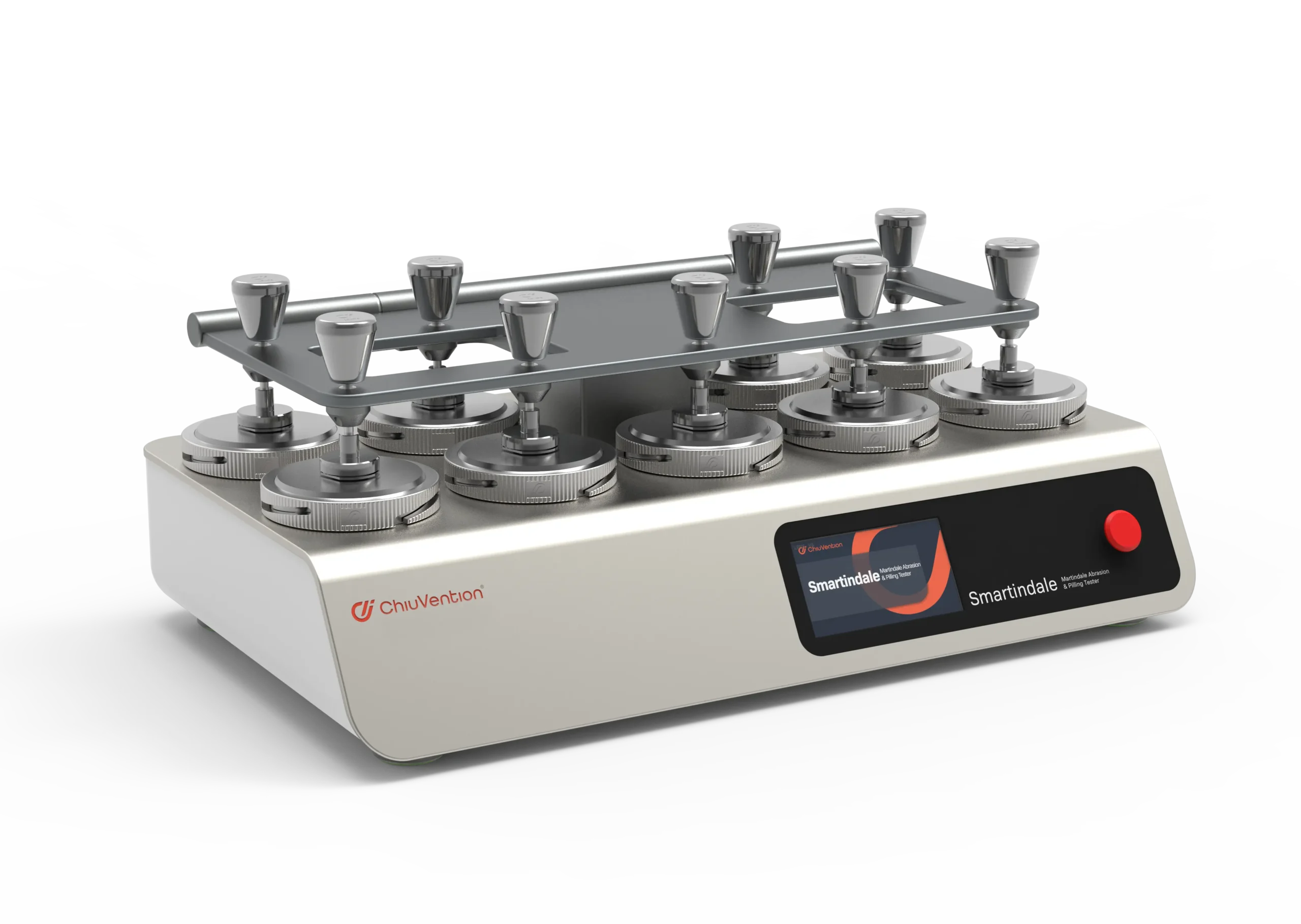

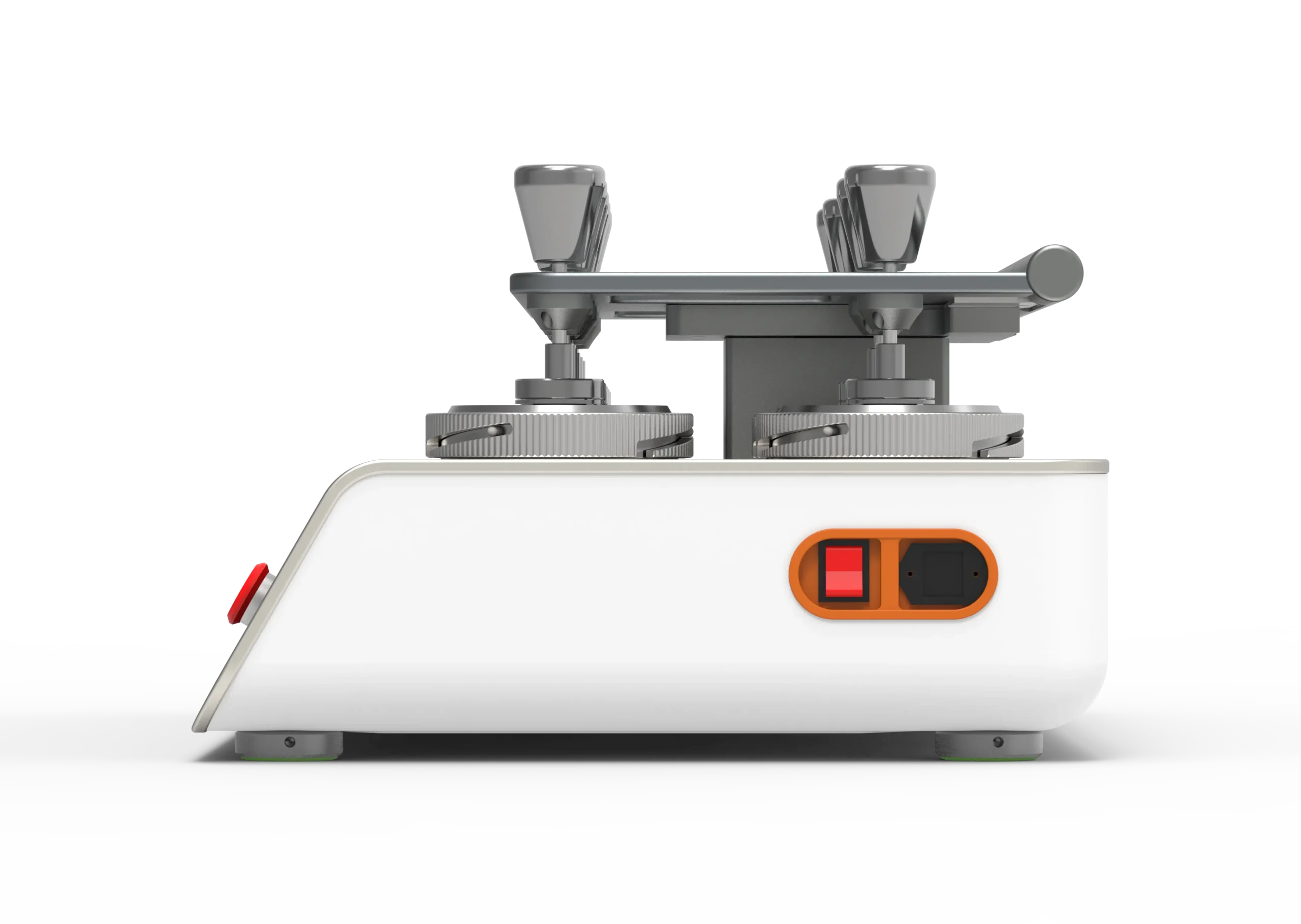

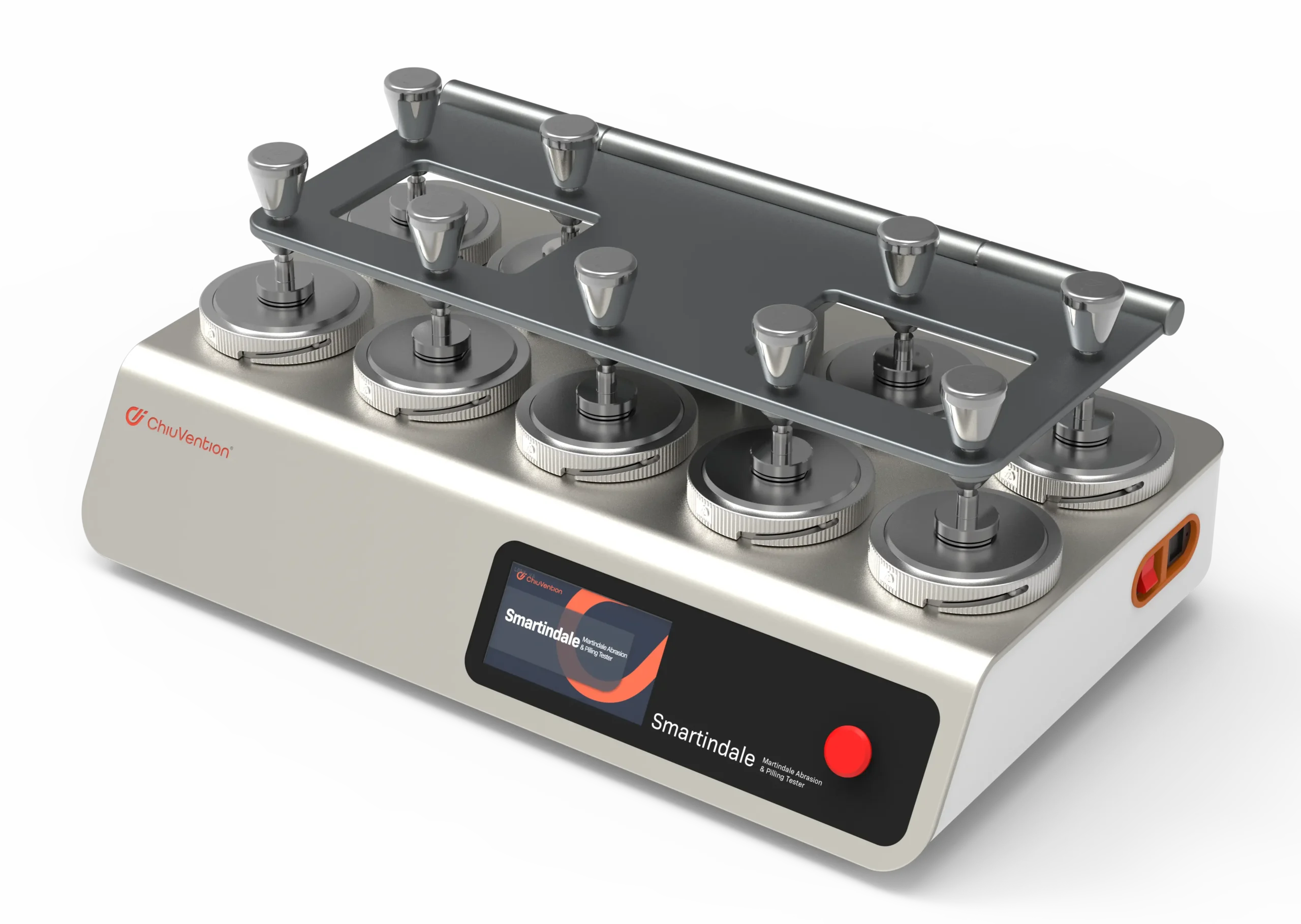

Smartindale: Smart Abrasion & Pilling Tester
Overview
An IoT-enabled instrument for precise abrasion, pilling, and straightness testing on fabrics. Uses patented digital algorithms to generate calibration-free Lissajous curves, ensuring reliability and efficiency.
Key Innovations & Benefits
-
Calibration-Free Precision:
Patented digital algorithm drives dual servo motors to generate perfect Lissajous curves. Maintains accuracy after 10+ million cycles (equivalent to 3 years nonstop operation under double-weight stress tests). -
One-Touch Efficiency:
Switch between abrasion, pilling, or straightness modes instantly via touchscreen – no mechanical pin changes required. -
Durable & User-Centric Design:
-
Flip-up cover with safety slow-close mechanism for easy sample observation/loading.
-
Validated by a world-class French testing lab for ease of use.
-
-
IoT Connectivity & Smart Management:
-
Integrates with SmarTexLab App (phone/PC) for remote control.
-
Direct API links to ERP/LIMS for automated data logging, reporting, and real-time collaboration.
-
OTA updates, maintenance alerts, and live chat support.
-
Technical Specifications
| Category | Details |
|---|---|
| Power | 110V/220V, 50/60Hz |
| Weight | 90 kg |
| Dimensions (W×L×H) | 510 × 850 × 300 mm |
| Motion Control | Lissajous curve via digital algorithm & precision slide rails |
| Durability | >10 million cycles (validated with rubber samples + double weights) |
| Connectivity | WiFi to SmarTexLab App → ERP/LIMS integration |
Included Accessories
| Item | Qty/Details |
|---|---|
| Fuse tube | 2 pcs |
| Foam wool (Φ38mm) | 9 pcs |
| Wool felt (Φ90/140mm) | 18 pcs |
| Wool abrasive (Φ140mm) | 9 pcs |
| Sampling plates | 3 sizes (Φ38/90/140mm) |
| Samplers | 1 (pilling) + 1 (abrasion) |
| Press (Φ126mm, 2.5kg) | 1 pc |
| Fixtures | 9 sets (pilling) + 9 sets (abrasion) |
| Weights | 9 sets (12Kpa) + 9 sets (9Kpa) |
| Rubber rings | 9 pcs |
| Connection shafts | 18 pcs (9 pilling + 9 abrasion) |
| Stainless steel rings | 9 pcs (260g) |
| Test pen | 1 pc |
Optional Accessories
| Item | Details |
|---|---|
| EMPA990 Rating Chart | 1 set (knitted + woven) |
| SM50 Rating Chart | 1 set (IWS + ASTM) |
| SM25 Abrasion-Resistant Cloth | 1.6m × 5m/pack |
| SM26 Woven Wool Felt | Φ140mm (24 pcs) / Φ90mm (24 pcs) |
| SM28 Polyurethane Foam | 250×200mm/pc (25 pcs/box) |
| Ball Plate | Φ120mm |
Compliance Standards
Included:
ISO 12945-2, ISO 12947-1/2/3/4, GB/T 21196.1-4, GB/T 4802.2, BS EN 530, ASTM D4970/D4966
Optional:
BS EN 388 (gloves), BS EN 16094 (flooring), ISO 17076-2, GB/T 39507
Summary: The Smartindale redefines fabric abrasion/pilling testing with calibration-free precision, one-touch versatility, and industrial durability. Its IoT integration streamlines data flow to ERP/LIMS systems, while user-centric design (flip cover, touchscreen) and third-party validation make it a top choice for modern textile labs seeking efficiency and reliability.
