TF117A De Mattia Flexing Tester

Request NowContinue on WhatsApp

Ask about specifications, quotation, delivery and technical support.

Specialist supportGuidance before and after purchase

Installation & trainingProfessional onboarding for your team

Reliable serviceOngoing technical care and maintenance

Technical details

Compare

Product intelligence

Specifications and technical resources

Review the core data, applicable standards and available resources before selecting your instrument.

Master Lab verified layout

Specifications

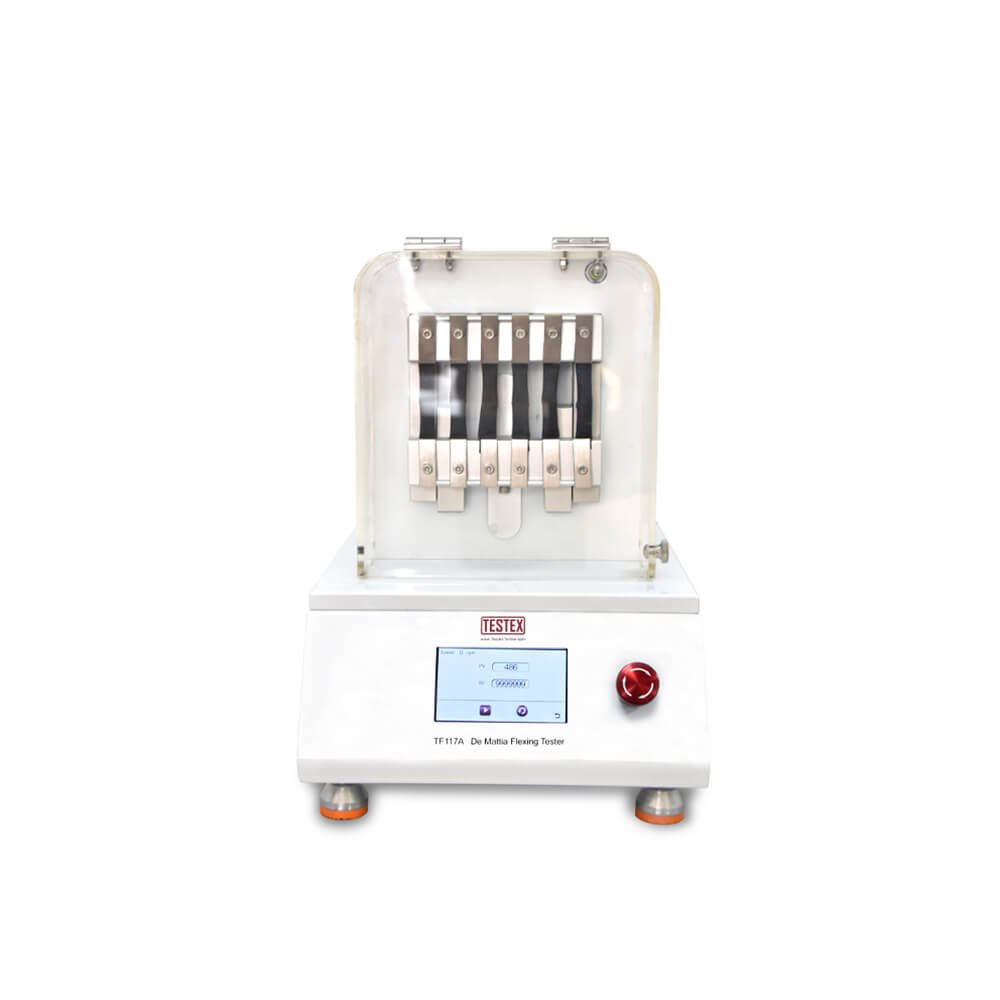

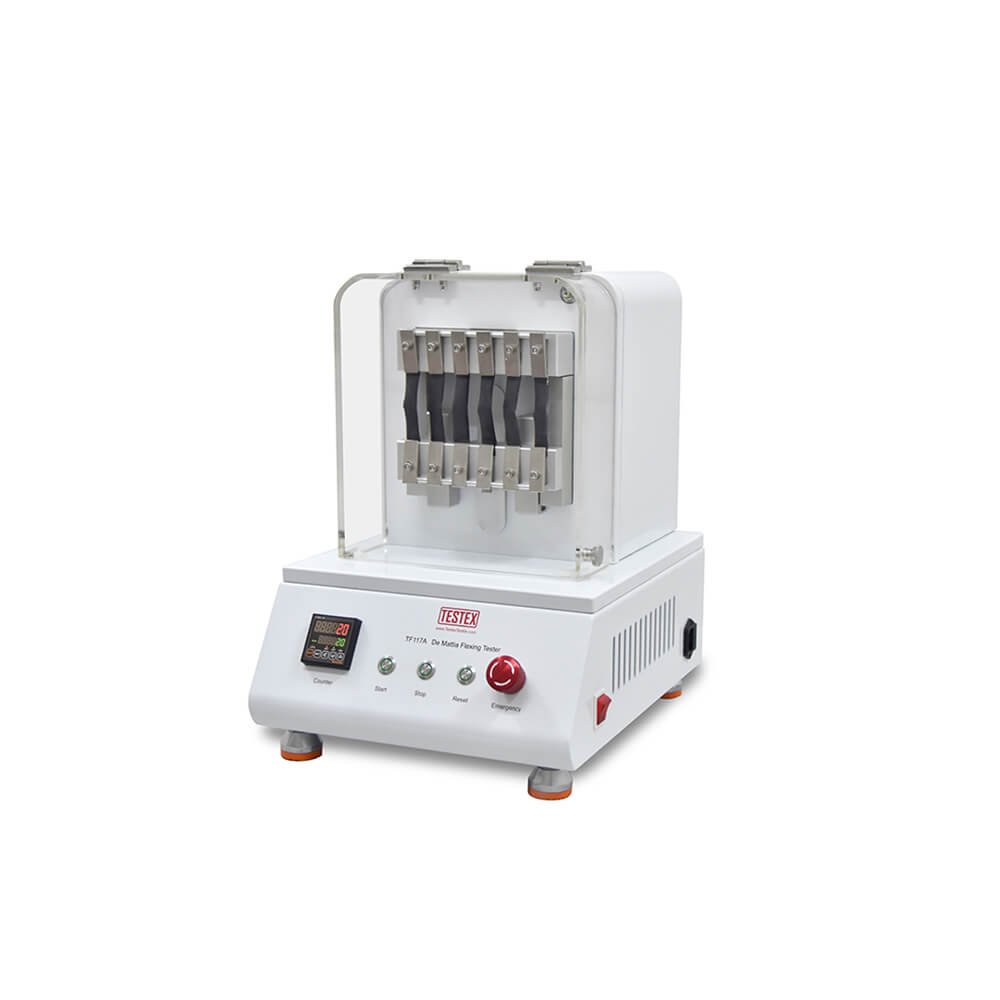

Description: The TF117A De Mattia Flexing Tester assesses the resistance of rubbers, leather, and coated fabrics to crack formation and growth due to repeated flexing. Specimens are clamped and flexed constantly, then observed for cracking to evaluate flex-endurance.

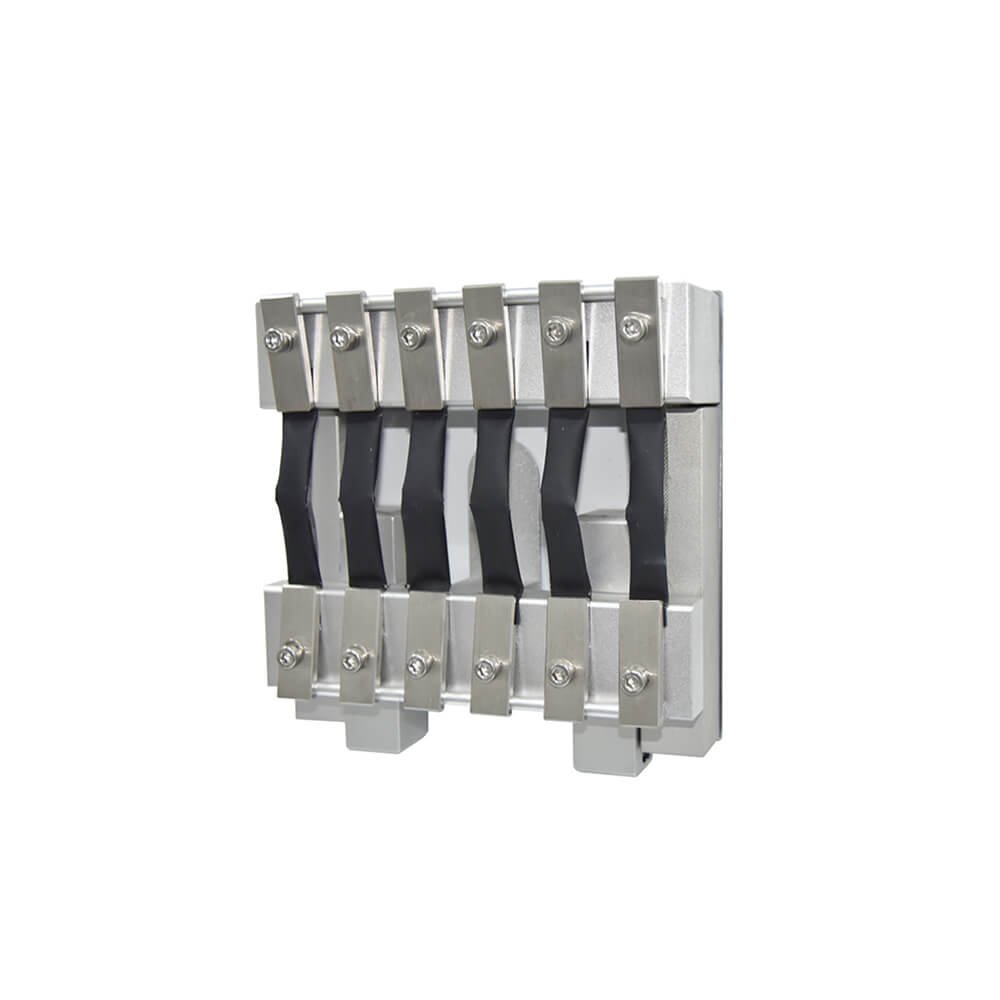

Specimens: 6 groups
Grip Distance (Open Position): 70 mm
Grip Distance (Closed Position): 13 mm
Stroke Length: 57 mm
Test Frequency: 300 cpm

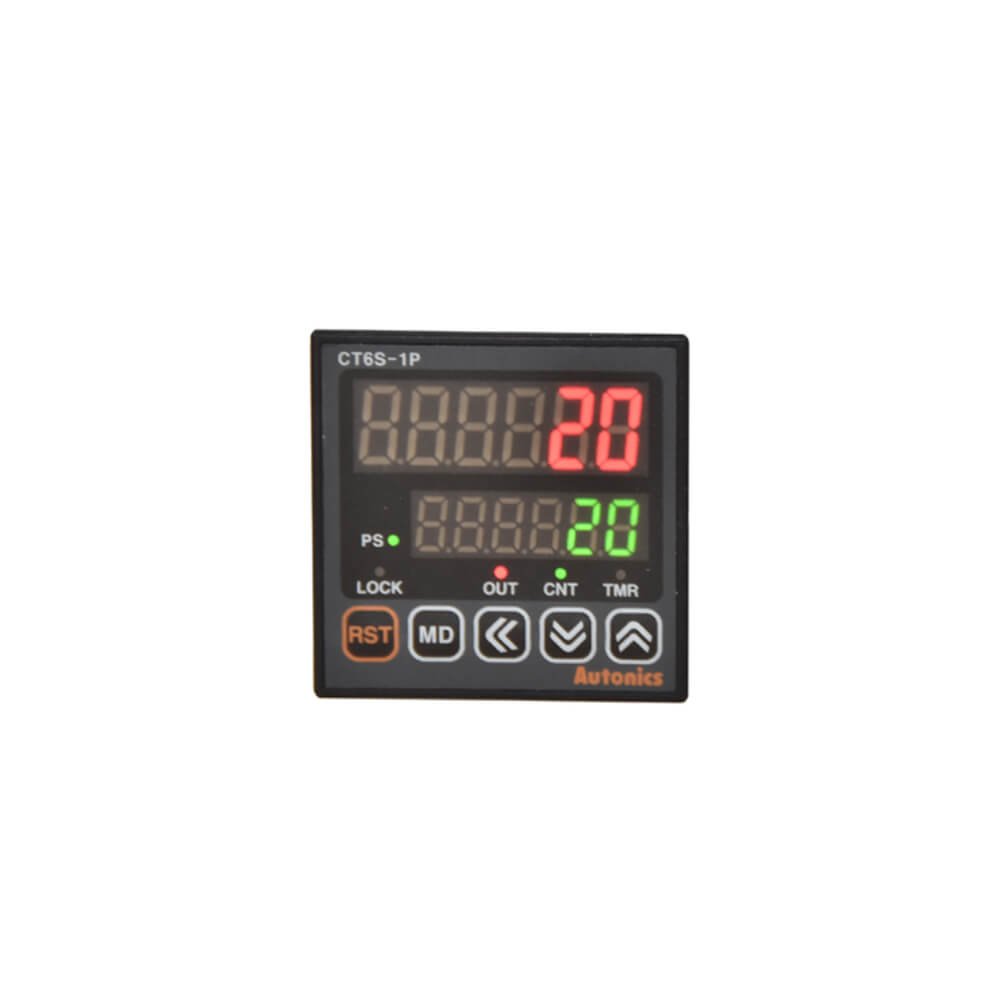

Counter: 1–9999
Power Supply: 220/110V, 50/60 Hz
Gross Weight: 63 kg
Dimensions: 570 x 530 x 600 mm (L x W x H)

Applicable standards

GB/T 12586ISO 7854

Brochure and video

Request brochureProduct PDF and technical information. Request a demonstration videoSee operation, workflow and applications.

Overview
Technical attributes

Overview

TF117A De Mattia Flexing Tester

Description: The TF117A De Mattia Flexing Tester assesses the resistance of rubbers, leather, and coated fabrics to crack formation and growth due to repeated flexing. Specimens are clamped and flexed constantly, then observed for cracking to evaluate flex-endurance.

Specifications:
