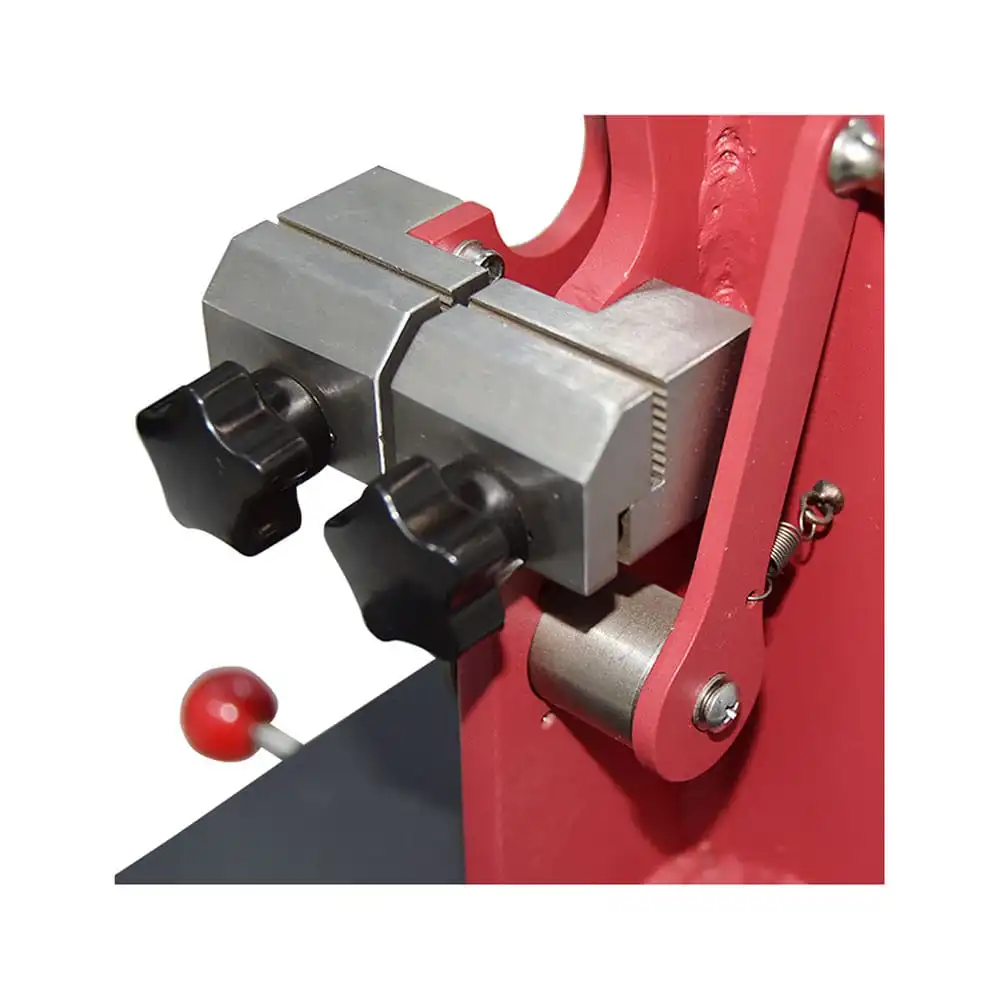

TF140A Elmendorf Tear Tester
Description: The TF140A Elmendorf Tear Tester is designed to measure the tearing strength of fabrics, paper, leather, film, non-woven materials, and other thin materials with a well-regulated tearing direction. It is not suitable for sparse fabrics or stretch materials where the tearing direction may shift during testing.
Specifications:
- Capacity: 0–6400 grams (0–64 N)
- Pendulum Range: 0–1600 cN, 0–3200 cN, 0–6400 cN
- Accuracy: ≤ ±1% F.S
- Tear Length: 43 mm
- Incision Length: 20 ± 0.2 mm
- Sample Size: 100 x 75 mm
- Power Supply: 220V, 50Hz
- Gross Weight: 43 kg
- Dimensions: 630 x 450 x 510 mm (L x W x H)
Included Accessories:
- 1 Cutting Blade
- 3 Pendulums: 1600 cN/g (3.5 lb), 3200 cN/g (7.0 lb), 6400 cN/g (14.0 lb)
Standards:
- ASTM D1424
- ISO 13937-1
