TF220 ICI Mace Snag Tester

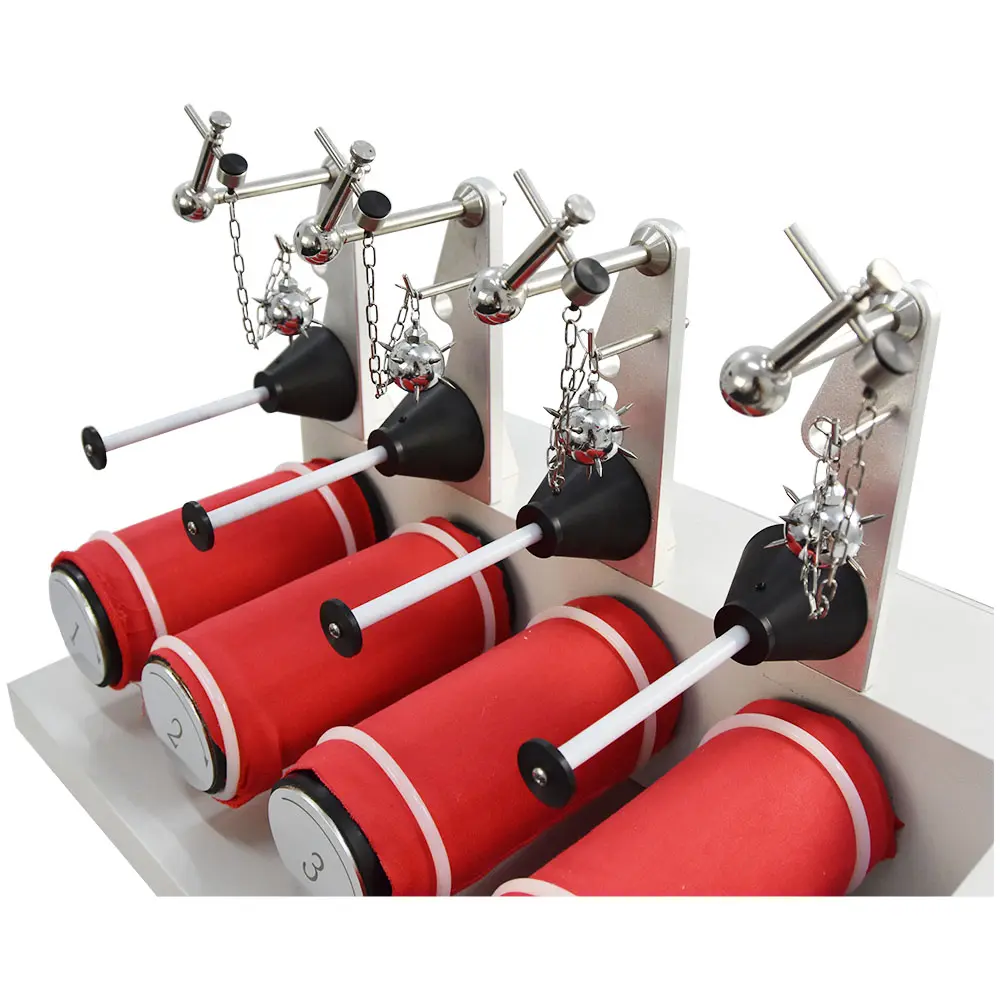

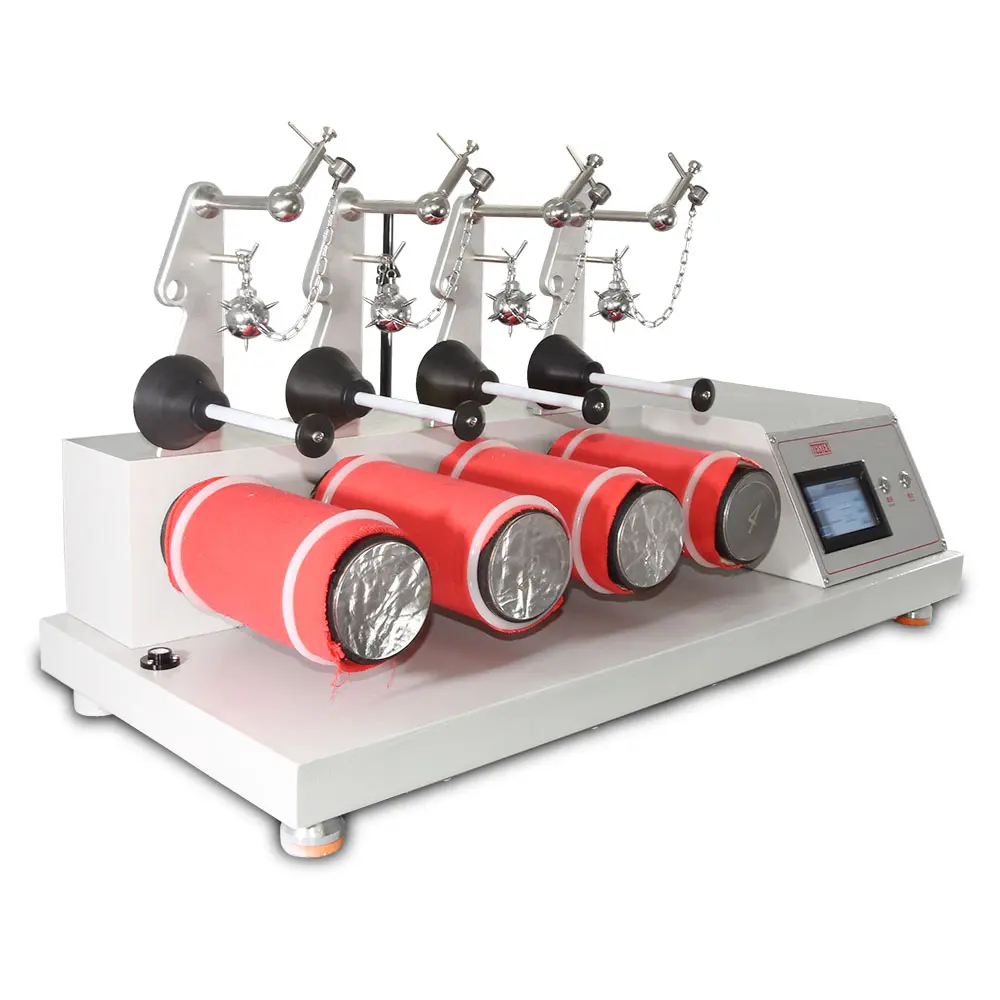

Description: The TF220 ICI Mace Snag Tester determines the tendency of fabrics to snag (pull yarn loops from the fabric) during normal wear. It features 4 rotating test cylinders fitted with test fabric sleeves and mace balls with tungsten carbide points, controlled by a predetermined electronic counter.
Specifications:
- Snag Mace Diameter: 31.75 mm
- Mace Weight: 160 g
- Mace Prominent Length: 10 mm
- Rotation Speed: 60 ± 2 rpm
- Power Supply: 220/110V, 50/60 Hz
- Gross Weight: 122 kg
- Dimensions: 1020 x 600 x 540 mm (L x W x H)
Standard Accessories:
- Measuring Tape (45 mm)
- Take Sample Plate
- Wool Felt Cover
- Nail Hammer
Optional Accessories:
- Tungsten Carbide Points (Pack of 12)
- Felt Sleeves (Pack of 4)
- Snagging Photographs
Standards:
- ASTM D3939
- GB/T 11047
- JIS L1058
