WashTrue: Smart Washing Color Fastness Tester
Overview: IoT-enabled tester for precise color fastness evaluation during washing. Features dual-cylinder models (independent control) and intelligent temperature algorithms for ISO, AATCC, GB compliance.
Key Innovations & Benefits
-
Precision Temperature Control
-
Smart algorithm maintains ±2°C accuracy (0–95°C range).
-
Solid-state relay heating: Stable temps + extended lifespan.
-
-

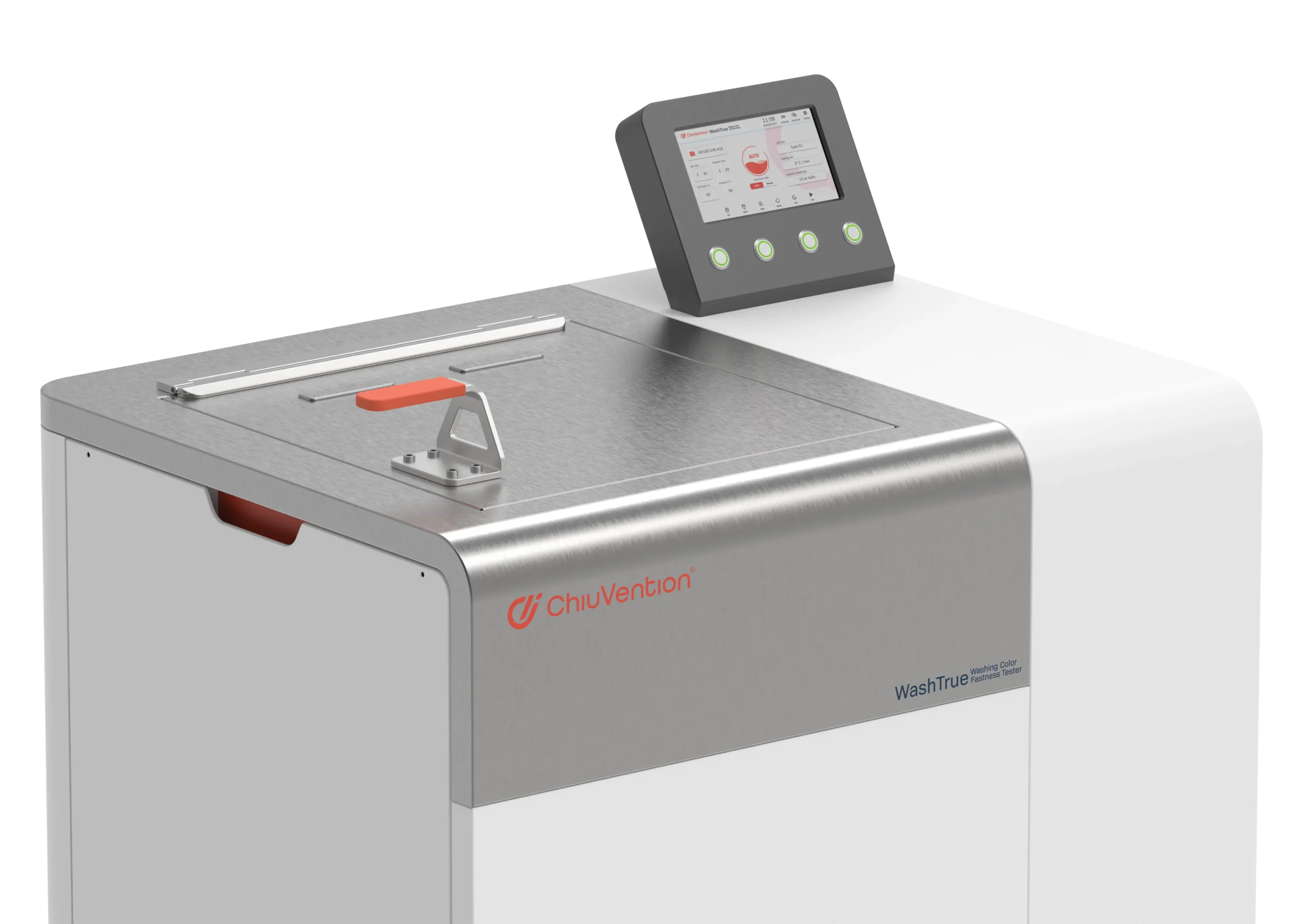

Efficient Touchscreen Operation
-
One-touch control: Set standards (ISO/AATCC/GB), parameters, time, heating rates.
-
Auto water add/drain + end-of-test buzzer alarm.
-
-
Industrial Durability
-
SUS 316 stainless steel tank (corrosion-resistant).
-
Anti-jamming frame + multi-safety protections (overheat/leak safeguards).
-
-
Flexible Configurations
-

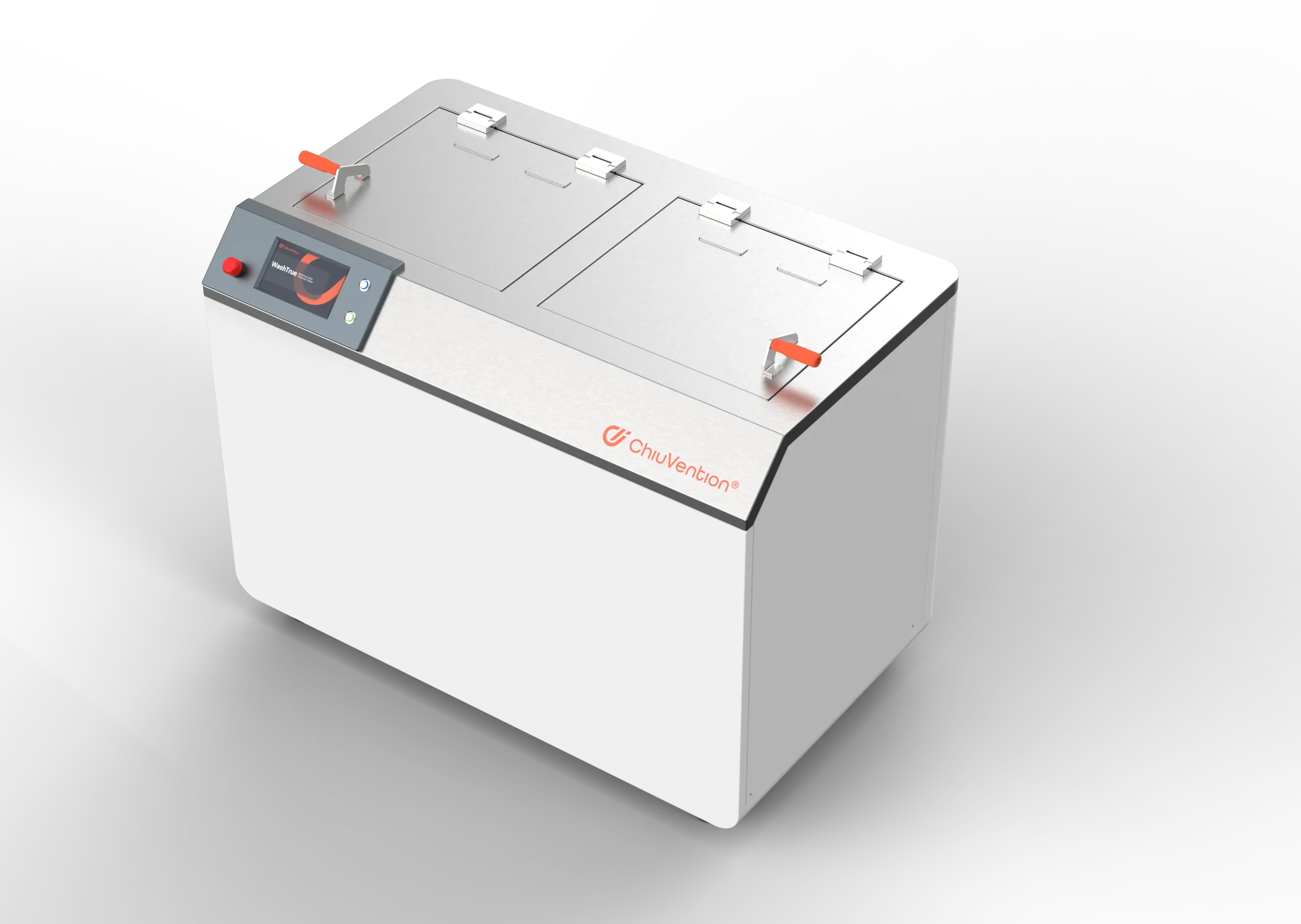

Single or double cylinder (independent operation for parallel testing).
-
Low-noise design for 24/7 lab operation.
-
-
IoT Integration
-
Connects to SmarTexLab App → ERP/LIMS for:
-
QR code sample tracking
-
Remote test control/modification
-
Automated digital reports (with temp/humidity logs)
-
OTA updates + maintenance alerts
-
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 220V/3N/50-60Hz (40A) or 380V/3N/50-60Hz (23A) |
| Weight | 150 kg |
| Dimensions (L×W×H) | 1060 × 720 × 860 mm |
| Temperature Range | 0–95°C (±2°C) |
| Heating Rate | 1.5±0.5°C/min |
| Rotation Speed | 40±2 rpm |
| Cup-to-Axis Distance | 45±10 mm |
Compliance Standards
Core:
-
ISO 105-C06/C08/C09/C10, E03/E12
-
AATCC 61, 132, 190
-
GB/T 12490, 29255, 3921
-
M&S C4A, NEXT TM 02
Optional:
-
ISO 105-D01, GB/T 5711
Standard Accessories
| Item | Qty | Details |
|---|---|---|

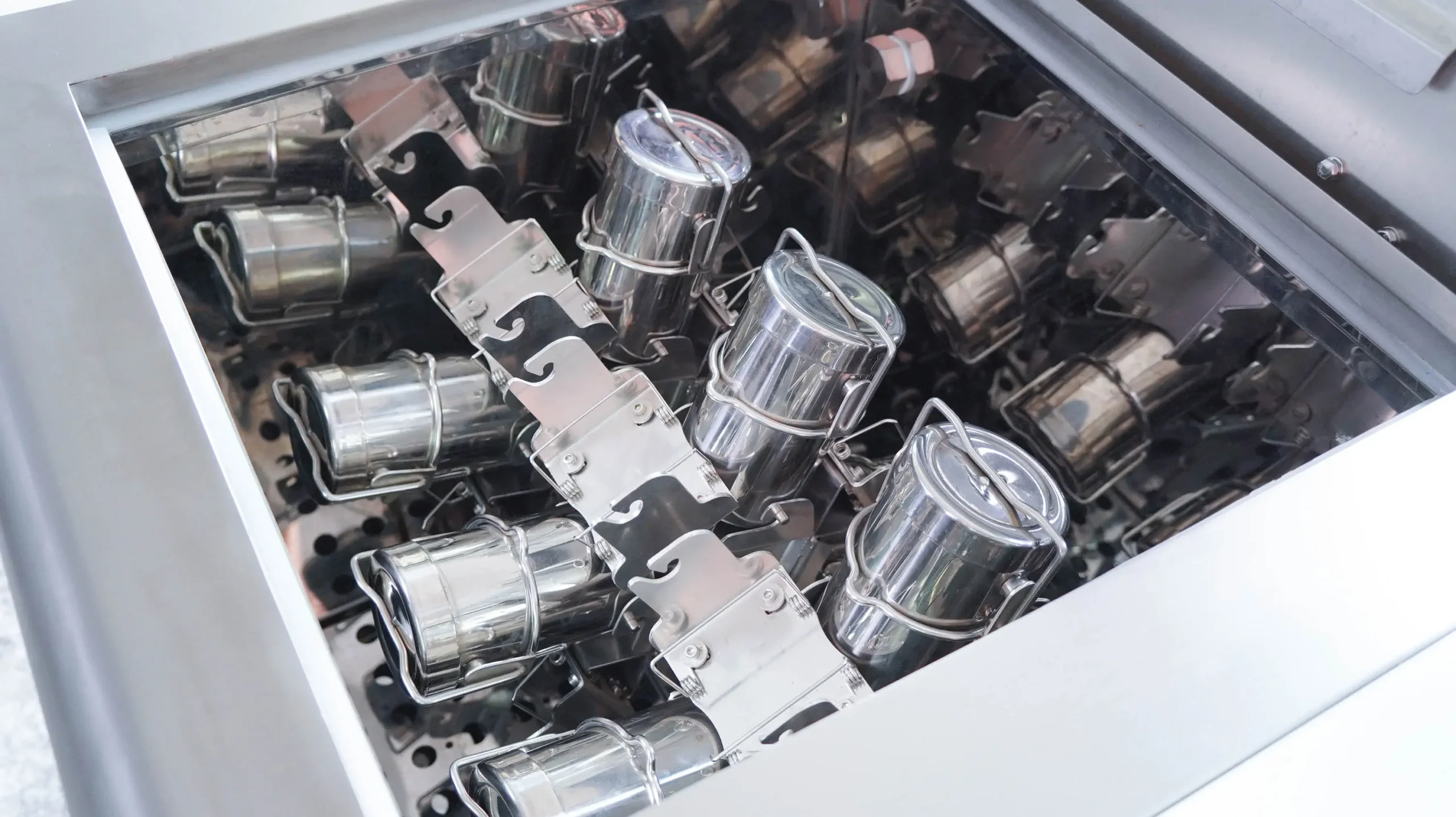

| Test Steel Cups | 12 pcs | 550±50mL or 1200±50mL |
| Stainless Steel Balls | 200 pcs | Φ6±0.5mm |
| Sealing Rings | 12 pcs | ISO/AATCC compliant |
| Sampling Plates | 3 pcs | 40×100mm, 50×100mm, 50×150mm |
| 100mL Measuring Cup | 1 pc |
(Includes pipes, gloves, tools, fuses)
Optional Accessories
| Item | Details |
|---|---|
| Extra Steel Cups | 550mL/1200mL |
| Gray Cards | ISO/AATCC color change |
| Multi-Fiber Cloth | DW (50m/box) or AATCC No.10 (25m/roll) |
| Stainless Steel Sheet | Φ30±2mm, 3±0.5mm thick |
Smart Lab Workflow
-
Scan Sample → Auto-select test program.
-
Real-Time Monitoring: Adjust parameters remotely via app.
-
Auto-Report: Generates digital records with:
-
Test conditions (temp/humidity)
-
Process data + results
-
-
Data Sync: Push reports to LIMS/ERP in real-time.
-
Support: Live chat with ChiuVention engineers + calibration reminders.
Summary: The WashTrue replaces manual color fastness testing with algorithm-driven precision, dual-cylinder efficiency, and full IoT integration. Trusted by labs for unmatched reliability (SUS 316 construction) and compliance with 15+ global standards (ISO/AATCC/GB). Reduces human error while enabling remote-controlled workflows.
