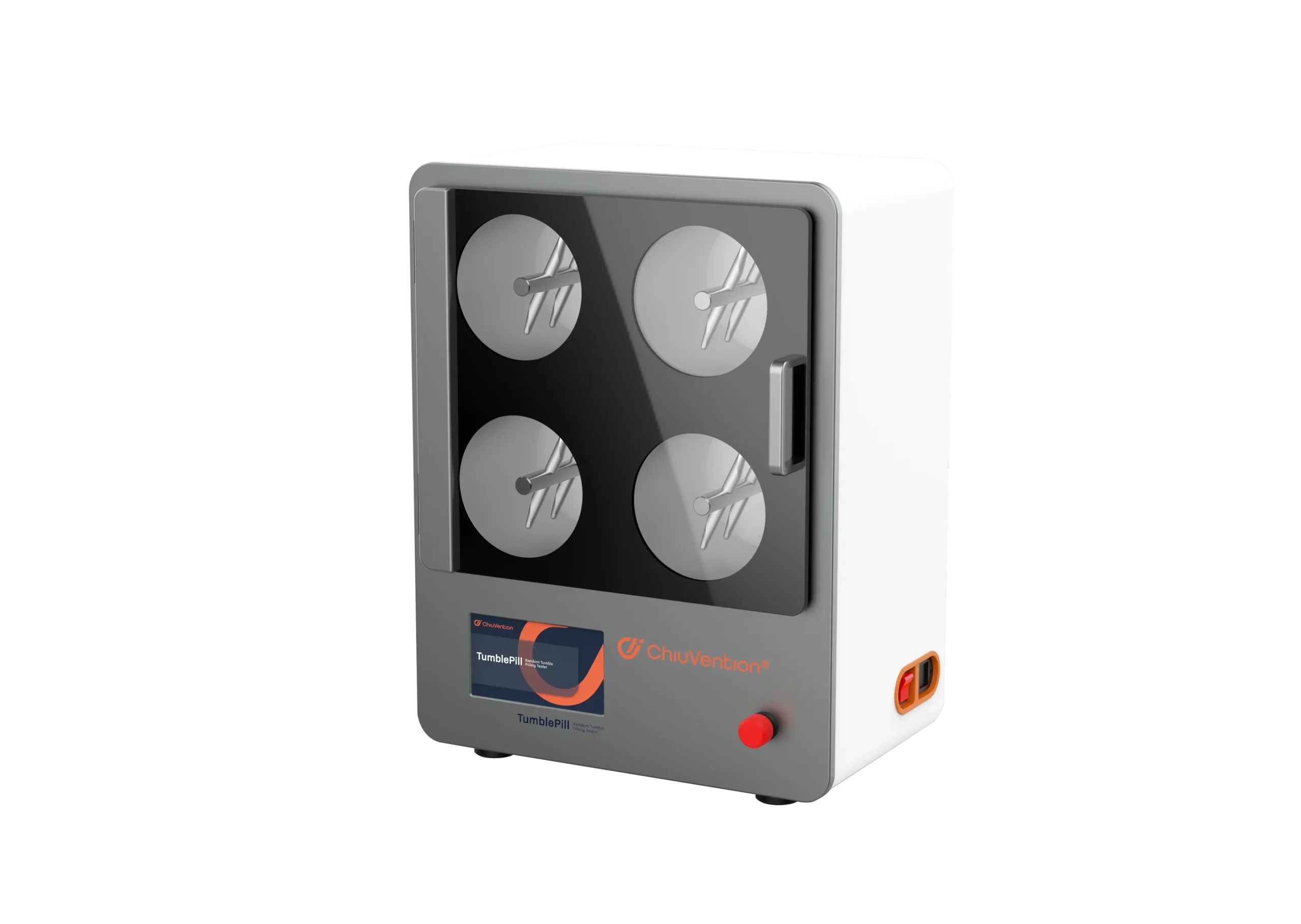

TumblePill: Random Tumble Pilling Tester
Purpose: Evaluates textile pilling/felting resistance by simulating real-world friction and tumbling. IoT-connected for automated reporting.
Key Innovations & Benefits
-
Realistic Simulation
-
Rotating impeller tumbles samples against standardized liners (cork/cotton), replicating wear-and-tear friction.
-
Adjustable speed (up to 1200 rpm) + compressed air (14–21 kPa) prevents sample sticking.
-
-
Modular Impeller System
-
Swap impellers in seconds to comply with:
-
ASTM, ISO, JIS, GB/T standards.
-
-
Included: *Impeller 1 (ASTM/JIS)* | Optional: Impeller 2 (JIS), *Impeller 3 (ISO/GB/T)*.
-
-
Precision & Reliability
-
Flat, adhered liner surfaces + smooth airflow ensure consistent results.
-

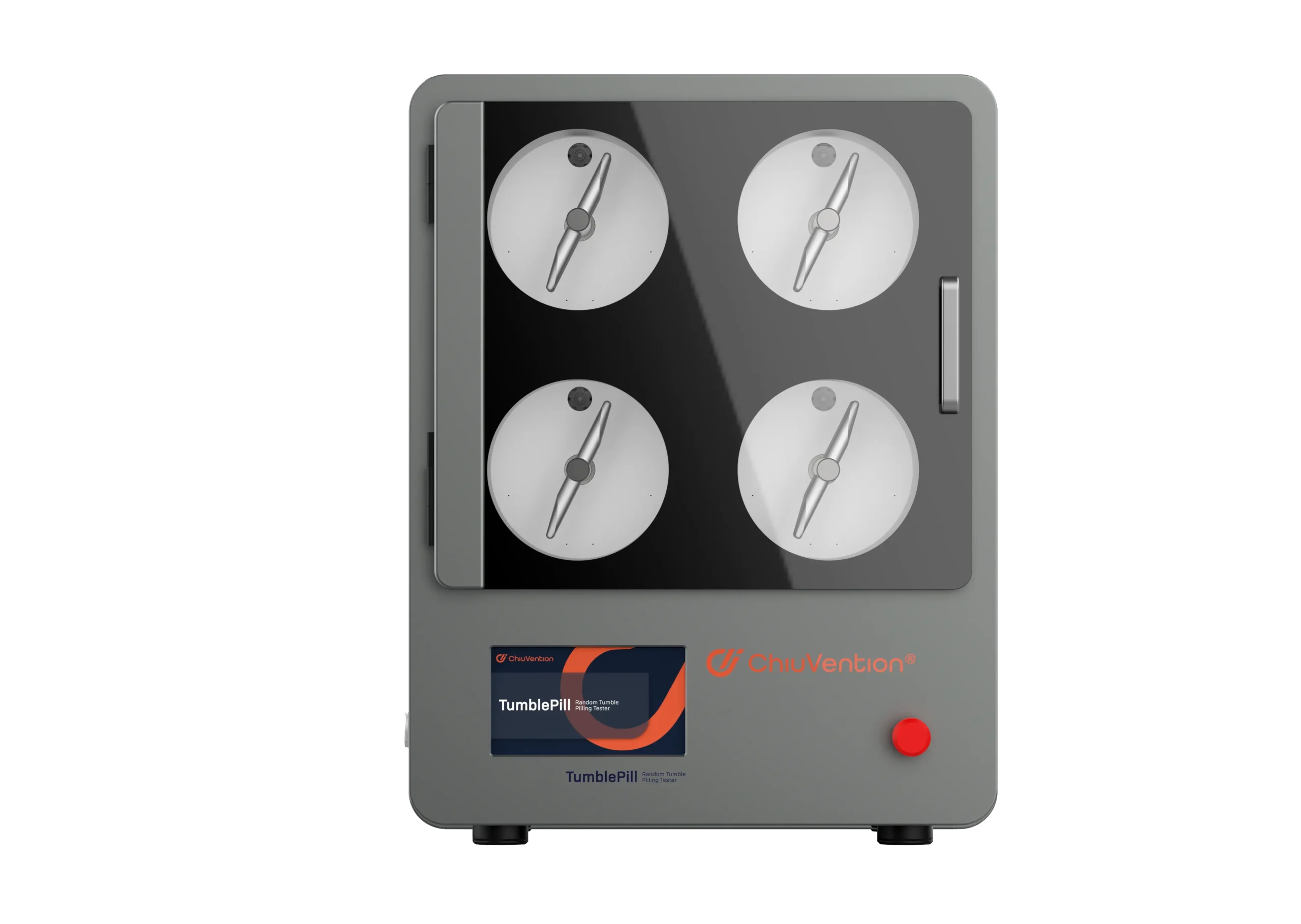

Transparent acrylic windows + per-chamber lighting for real-time observation.
-
-
IoT Integration
-
Connects to SmarTexLab App (phone/PC) and LIMS/ERP for:
-
Remote test control (start/pause/repeat)
-
Automatic report generation
-
Calibration/maintenance alerts
-
OTA updates
-
-
-
Quiet & User-Friendly
-
Noise-optimized operation (lab-friendly).
-
Processes 4 samples simultaneously.
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 110V/220V, 50/60Hz |
| Weight | 70 kg |
| Dimensions (L×W×H) | 560 × 360 × 620 mm |
| Test Chambers | 4 |
| Chamber Size | Ø146±1 mm × 152.4±1 mm depth |
| Sample Size | 100×100 mm (square) or 100 cm² (round) |
| Impeller Shaft | Ø12.7 mm × 121 mm length |
| Rotation Speed | 1200 rpm (adjustable) |
| Air Pressure | 14–21 kPa |
Included Accessories
| Item | Qty/Details |
|---|---|
| Sampling Board | 1 pc (105×105 mm) |
| Gas Pipe | 1 pc (Ø8 mm × 2m) |
| Leather Belts | 2 pcs |
| Impeller Set 1 | 4 sets (ASTM/JIS compliant) |
Optional Accessories
| Item | Compliance |
|---|---|
| Impeller Set 2 | JIS L 1076 D |
| Impeller Set 3 | ISO 12945-3, GB/T 4802.4 |
| Cork Liners | 50 pcs/pack |
| Cotton Slivers | 1 yd/pack |
| Pilling Standard Photographs | 5 pcs/pack (rating reference) |
| Dust Collector | 1 pc |
Compliance Standards
Standard:
-
ASTM D3512: Standard Test Method for Pilling Resistance (Random Tumble)
Optional:
-
ISO 12945-3: Pilling resistance (Random Tumble)
-
JIS L 1076 D: Pilling test for woven/knitted fabrics
-
GB/T 4802.4: Textiles – Pilling resistance (Random Tumble)
Summary: The TumblePill delivers lab-accurate pilling/felting tests via modular impellers and controlled tumbling. Its 4-chamber throughput, IoT connectivity (LIMS/ERP integration), and compliance with global standards (ASTM/ISO/JIS/GB) make it ideal for textile R&D and QA labs prioritizing efficiency and data traceability.
