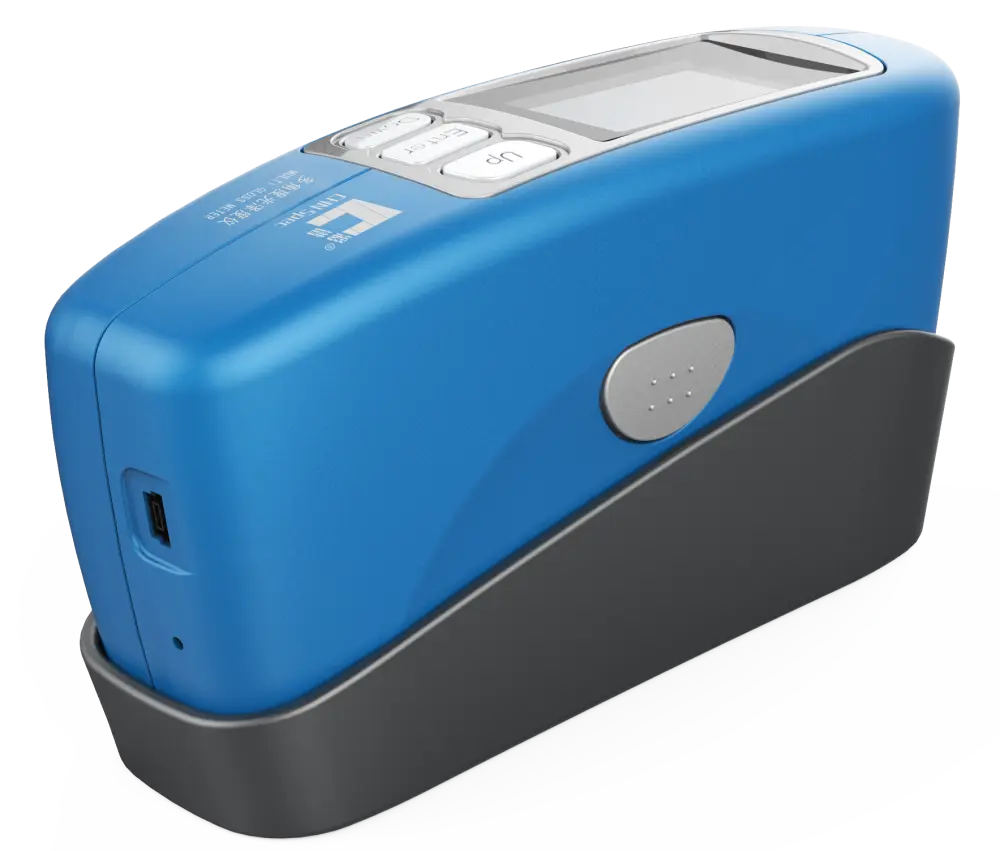

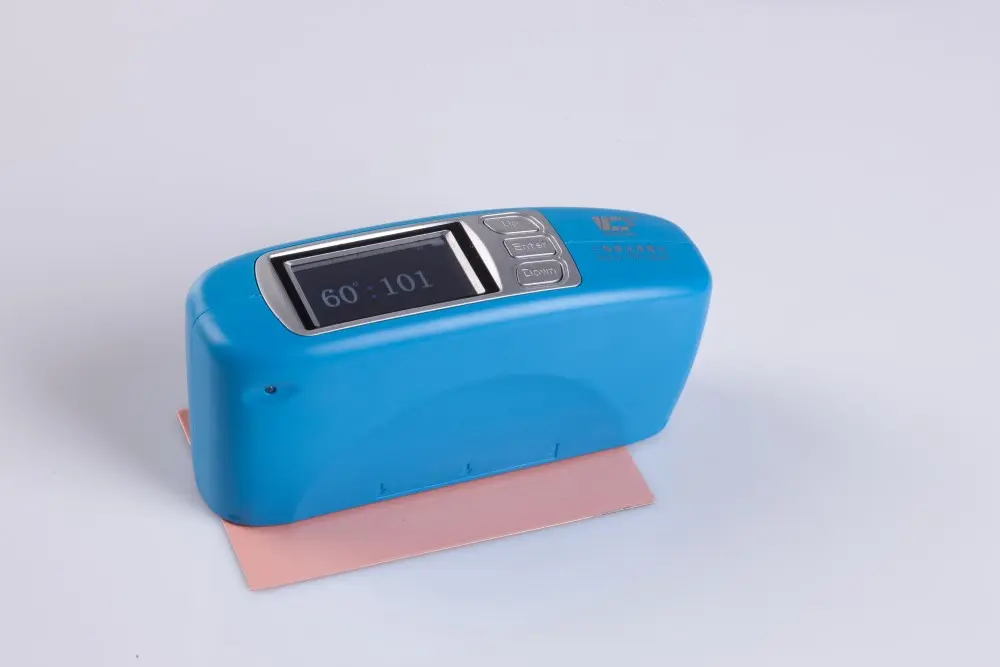

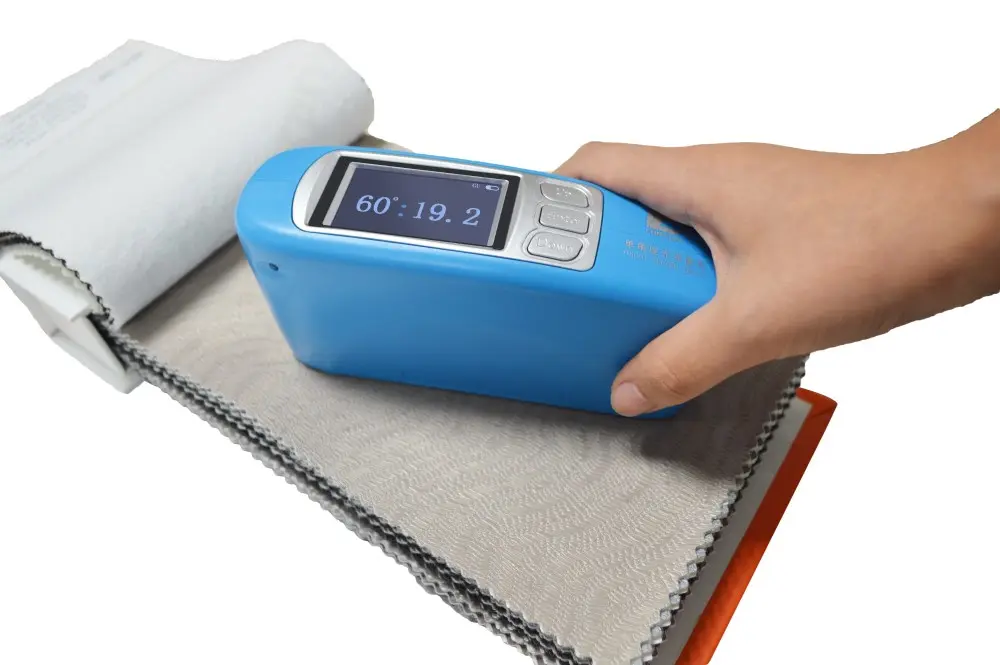

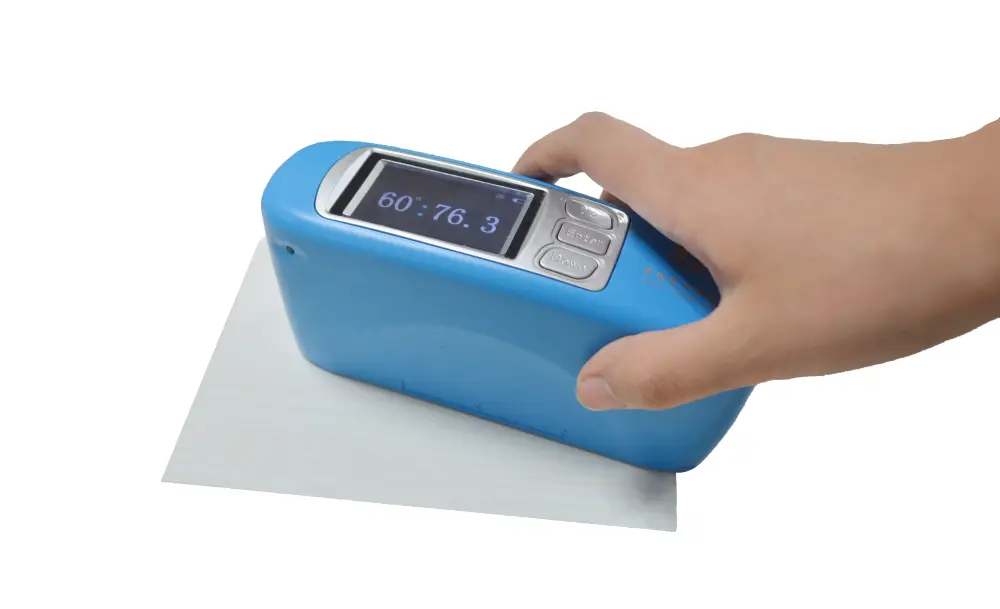

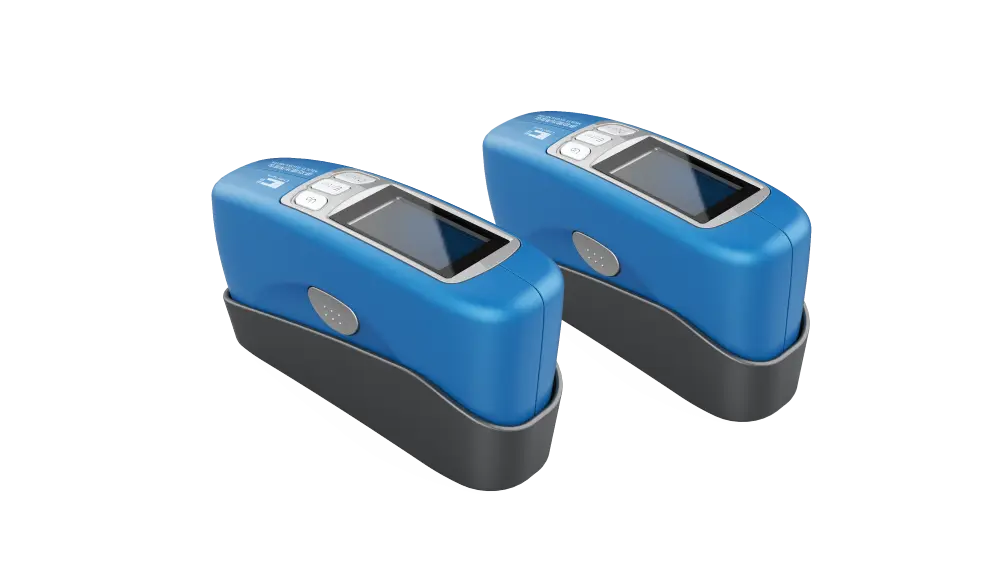

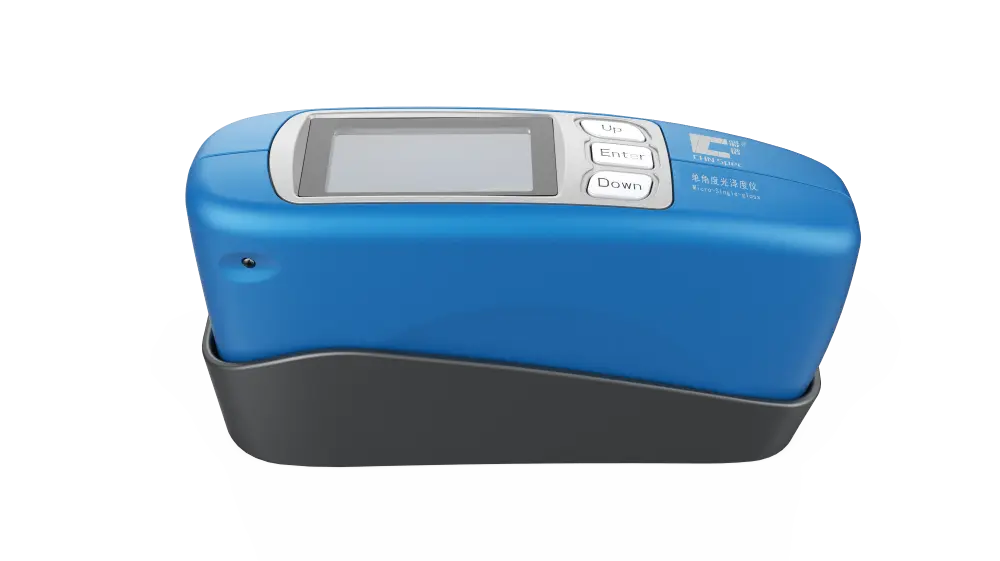

Gloss Meter CS-300/380/300S
Product Features
-
High Precision:
Each unit includes verification certification from National Modern Metrology and Instrument Testing Laboratory.
Compliant with: ASTM D 523, D2457, DIN 67530, ISO 2813, ISO 7668, JIS Z8741, BS3900, BS6161. -
Ergonomic Design:
Shell crafted from Dow Corning TiSLV material (elastic, UV/bacteria-resistant, hypoallergenic). -
High Stability:
Rigorously tested per unit:-
412 calibration tests
-
43,200 stability tests
-
110-hour accelerated aging
-
17,000 vibration tests
-
-
Extended Battery:
3,000mAh high-density lithium battery (54,300 continuous tests).
Model Specifications

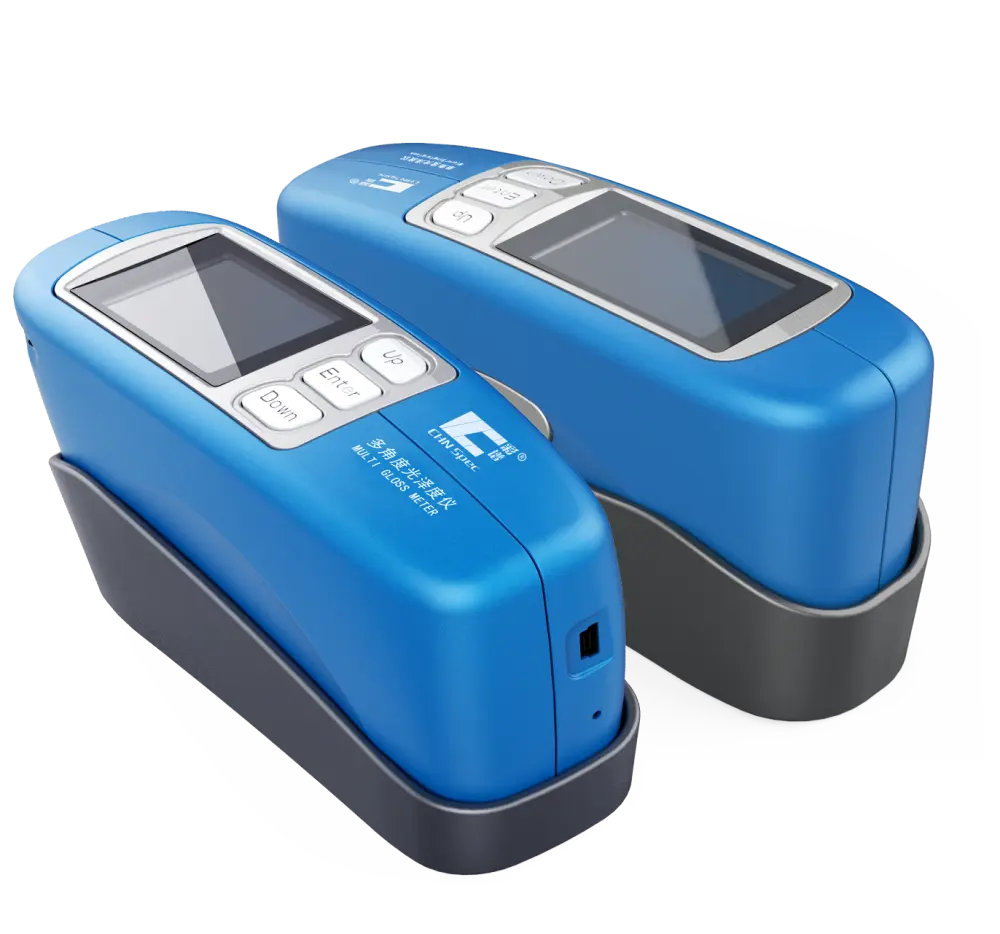

| Feature | CS-380 | CS-300 | CS-300S |
|---|---|---|---|

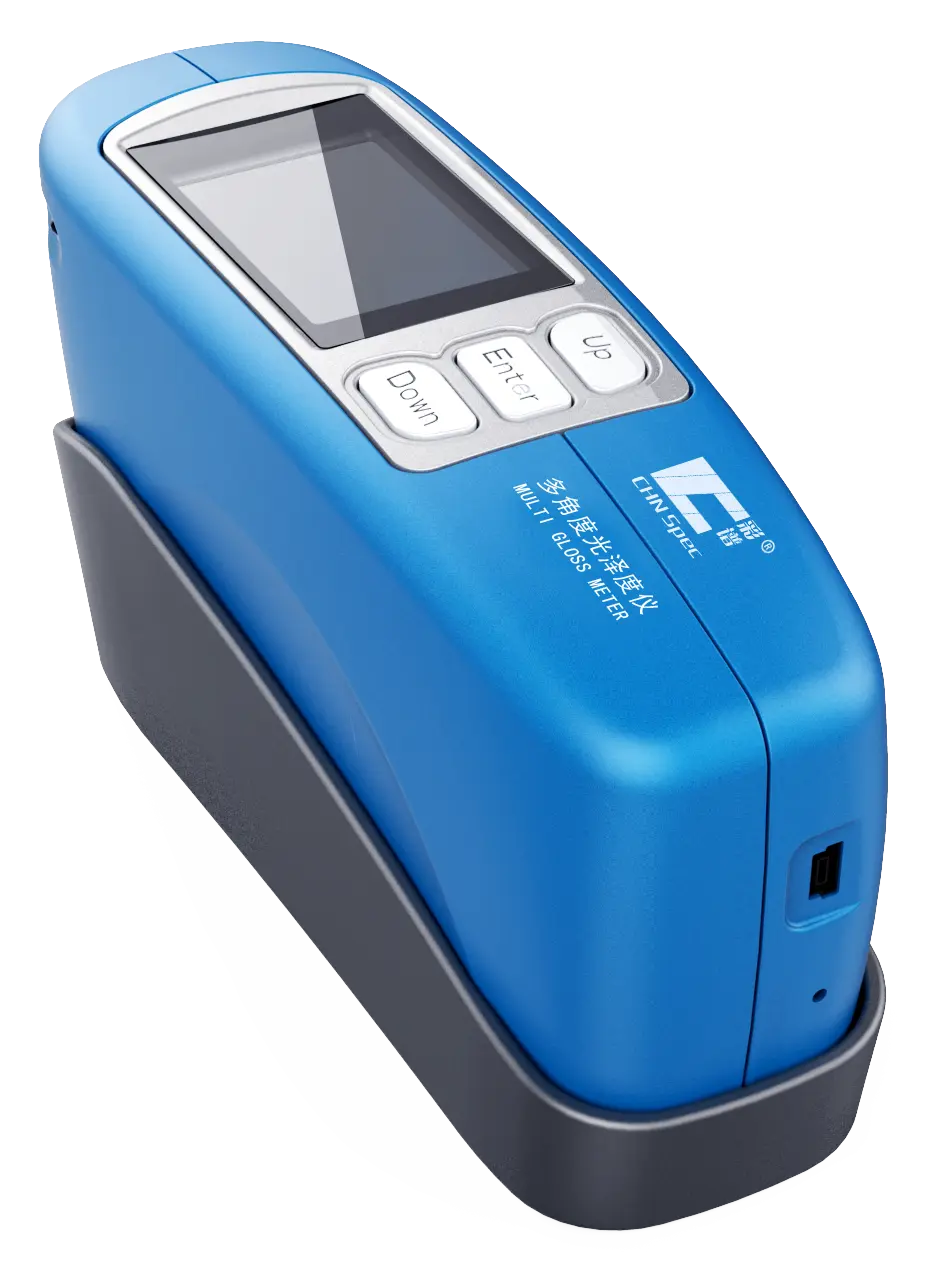

| Test Angle | 20°, 60°, 85° | 60° | 60° |
| Light Spot | 20°: 10×10mm 60°: 9×15mm 85°: 5×38mm |

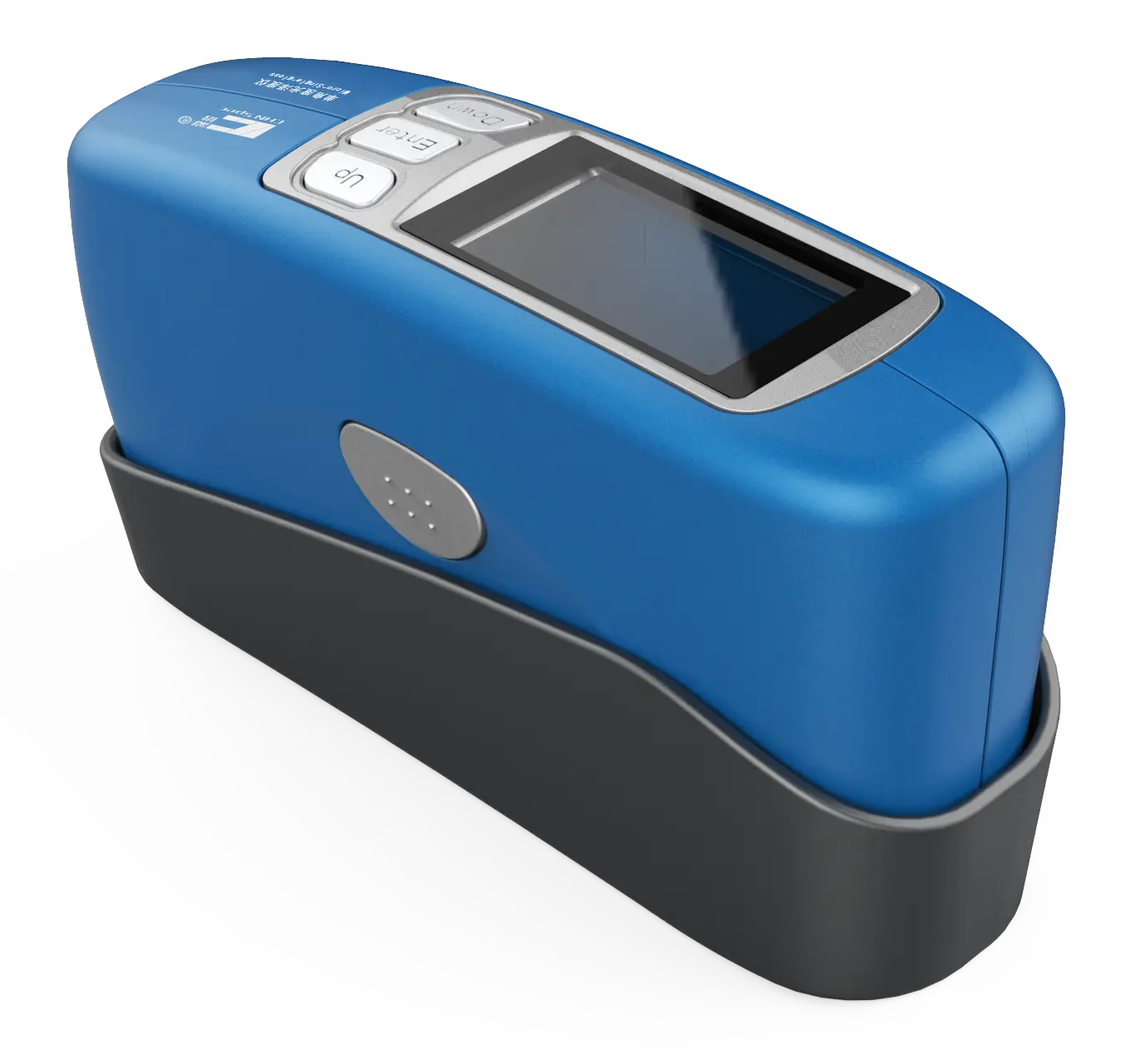

60°: 9×15mm | 60°: 2×3mm |
| Range | 20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU |
60°: 0-1000GU | 60°: 0-600GU |
Technical Specifications
-
Accuracy:
-
0-100GU: 0.1GU
-
100GU: 1GU
Additional ranges: -
0-100GU: 0.2GU; 100-2000GU: 0.2%
-
0-100GU: 0.2GU; 100-1000GU: 0.2%
-
0-100GU: 0.2GU; 100-600GU: 0.2%
-
-
Repeatability:
Meets JJG 696-2002 First Class Gloss Meter standard -
Test Modes: Simple, Statistics
-
Measurement Time: <1s
-
Data Storage: 100 targets, 10,000 samples
-
Interface: USB, Bluetooth (optional)
-
Battery: 3,000mAh (54,300 tests)
-
Languages: English, Chinese
-
Dimensions: 165 × 51 × 77mm (L×W×H)
-
Weight: ≈400g
-
Operating Temp.: 0-40°C
-
Operating Humidity: <85% RH (no condensation)
Accessories
-
All Models:

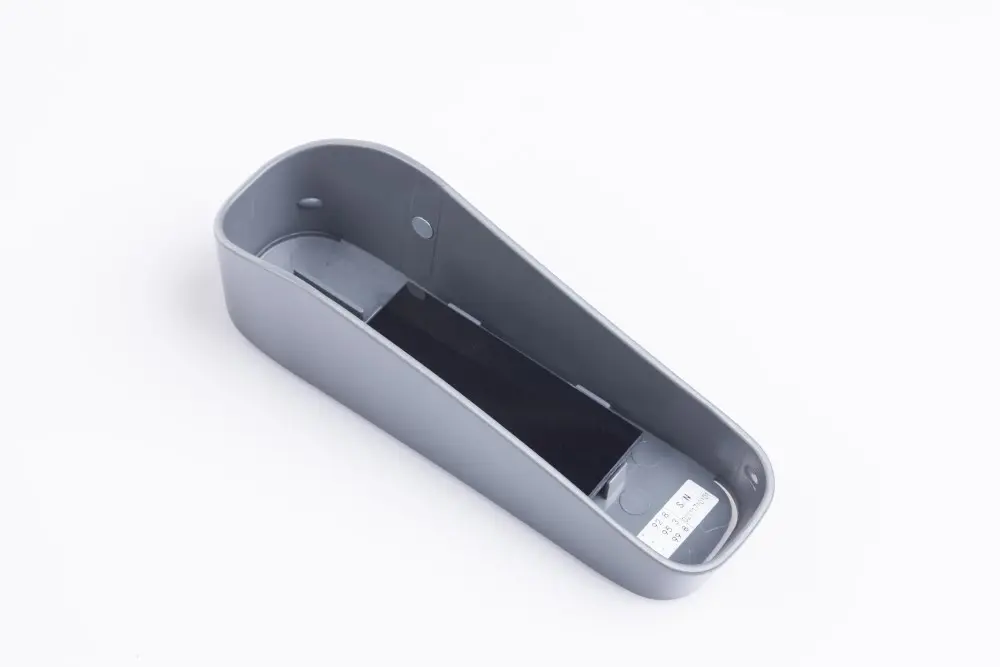

5V/2A charger, USB cable, Operating manual, PC software CD, Calibration tile -
CS-380 Only:
Verification certification
