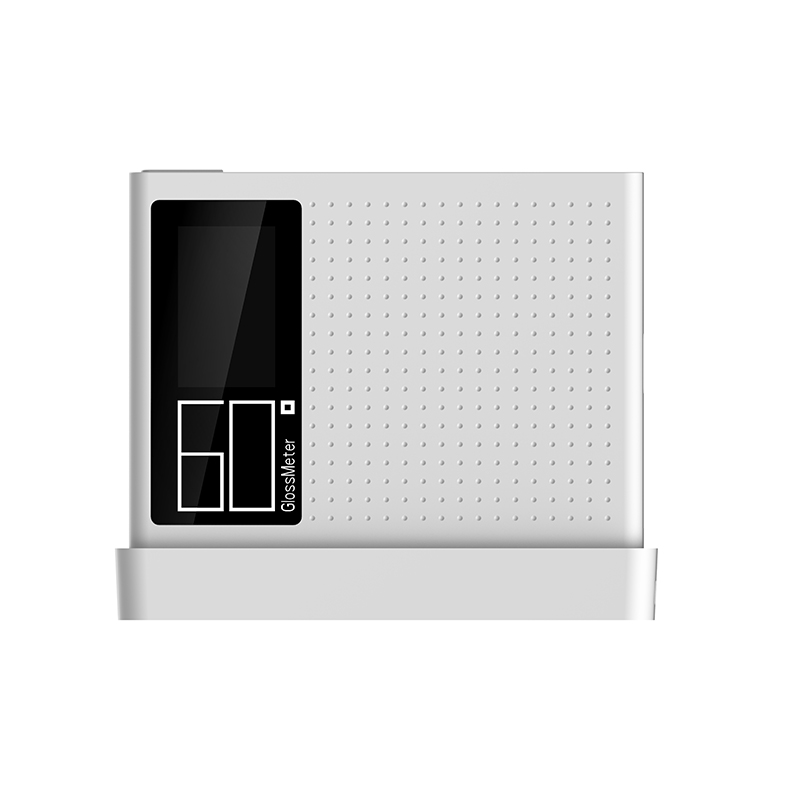

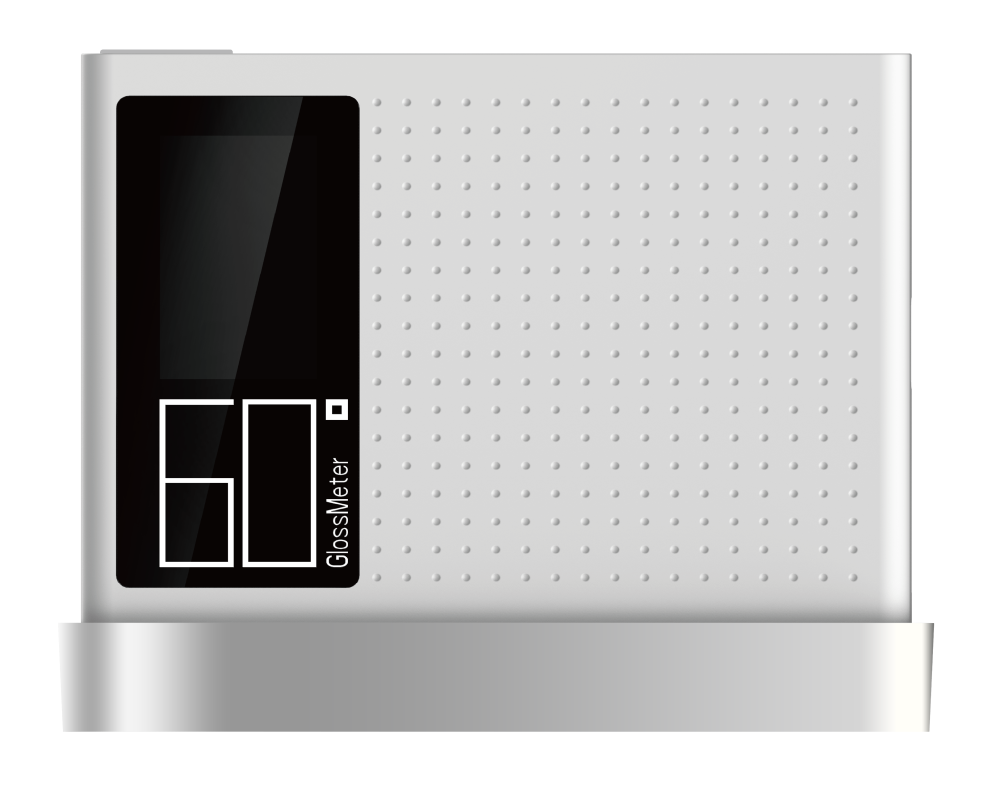

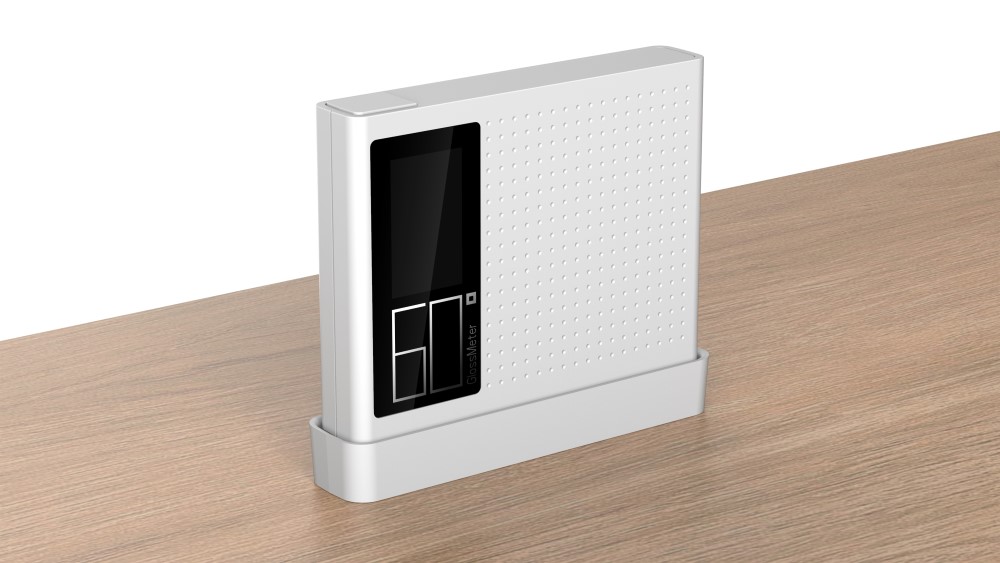

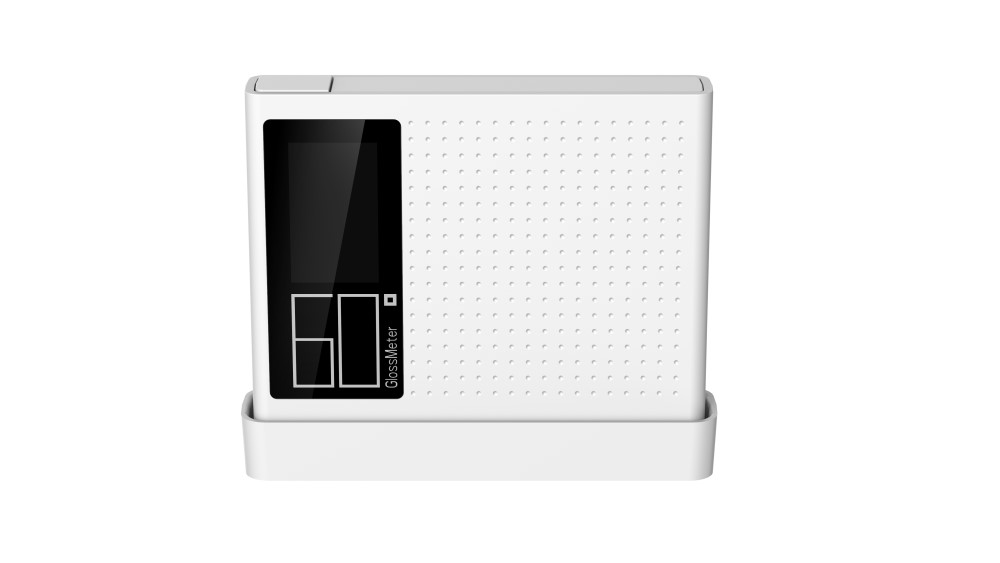

Gloss Meter DG60 Series
Product Features
-
Compact: 80g weight, name card-sized (84×70×17mm)
-
Accurate: Metrological certification compliant
-
Fast: <1s measurement time
-
Long-lasting: Up to 30,000 continuous measurements
-
Auto Calibration:
-
No manual calibration required
-
Anti-pollution calibration base
-
Immediate measurement after power-on
-
Application Examples
Building Materials, Automotive Glass, Hardware, Smartphones, Ceramics
Model Comparison
| Feature | DG60 SE (Basic) | DG60 Pro (Professional) | DG60 Max (Enhanced) |
|---|---|---|---|
| Measurement Range | 0-200 GU | 0-1200 GU | 0-2000 GU |
| Accuracy | 0-100GU: 0.1GU >100GU: 1GU |
– | – |
| Repeatability* | ±0.1 GU / ±0.1% | ±0.1 GU / ±0.1% | ±0.1 GU / ±0.1% |
| Battery | 5,000 tests | 15,000 tests | 30,000 tests |
| Interface | USB | USB, Bluetooth | USB, Bluetooth |
Common Specifications
-
Measurement Angle: 60°
-
Illumination Area: 5×10mm
-
Measurement Modes: Simple, Statistics
-
Display: 1.14-inch IPS full color (135×240 resolution)
-
Calibration: Automatic
-
Data Storage: 100 targets, 10,000 samples
-
Working Temperature: 0-40°C
-
Humidity: <85% RH (no condensation)
-
Accessories:
USB cable, Straps, Manual, Calibration base, Cleaning cloth -
Weight: 116g 80g 133g
-
Size: 84 × 70 × 17mm (L×W×H)
*Repeatability measured via 30 consecutive tests:
-
Absolute value evaluation (<100GU)
-
Percentage evaluation (≥100GU)
