Key Product Features
-
Multi-Parameter Measurement
-
Haze, Transmittance (T), Spectral Transmittance, Clarity.
-
-
Color Analysis
-
Supports CIE Lab, LCh, Luv, XYZ, Yxy, Hunter Lab, Munsell MI, CMYK.
-
-
Compliance & Standards
-
ASTM D1003/D1044, ISO 13468/14782, JIS K 7105/7361/7136, GB/T 2410-08, CIE No.15, DIN 5033.
-
-
Advanced Light Sources
-
20+ illuminants (A, C, D50-D75, F1-F12, U30, TL83/84, etc.).
-
-
Accuracy Enhancements
-
Compensation measurement for improved results.
-
-
Software & Interface
-

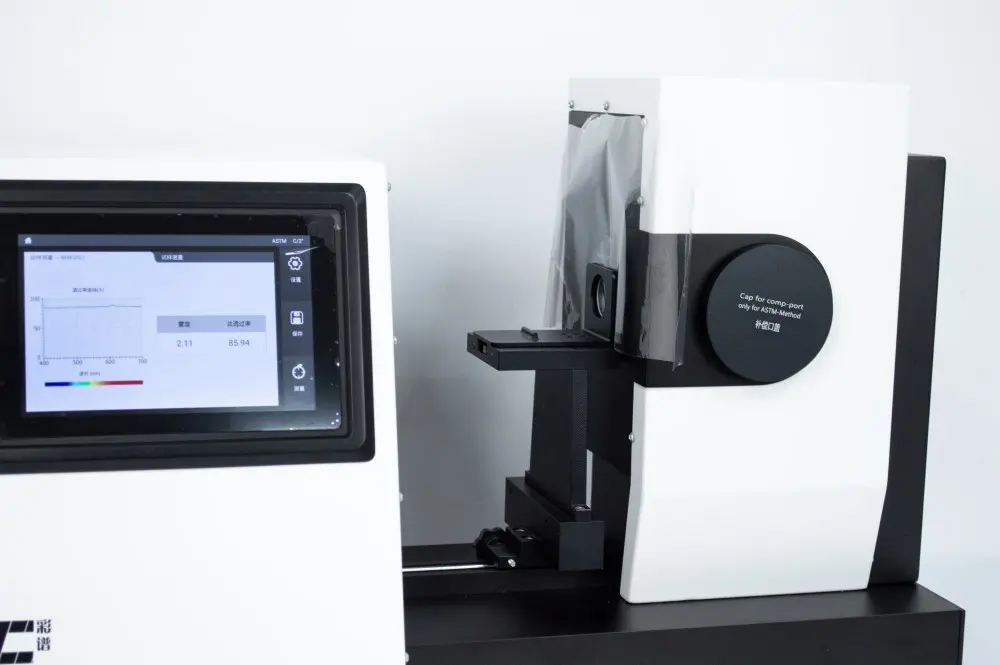

Haze QC Software (standard), 7″ Android Touch Screen.
-
-

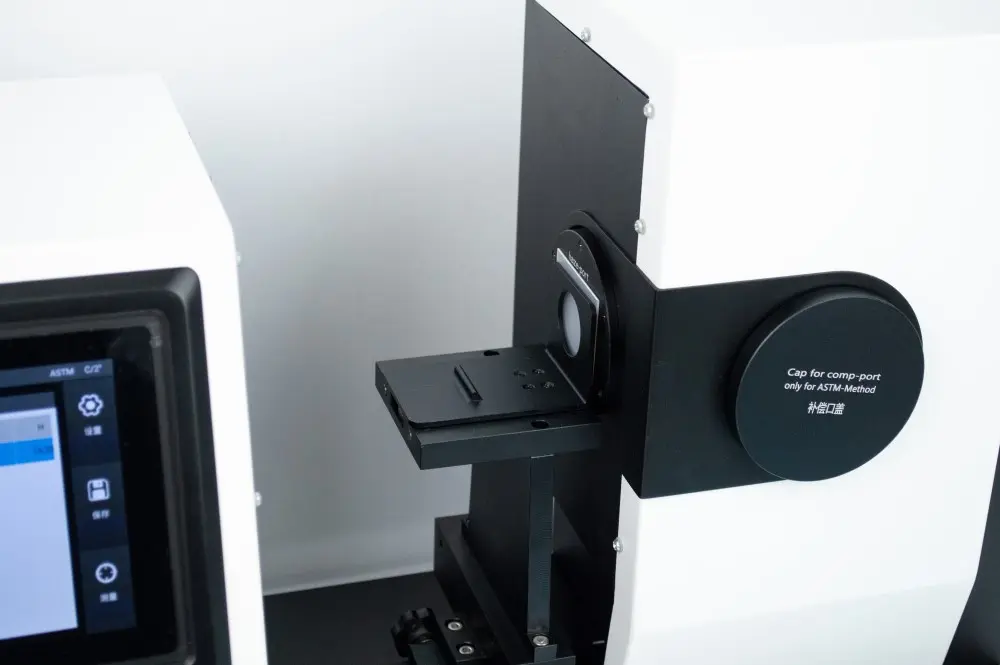

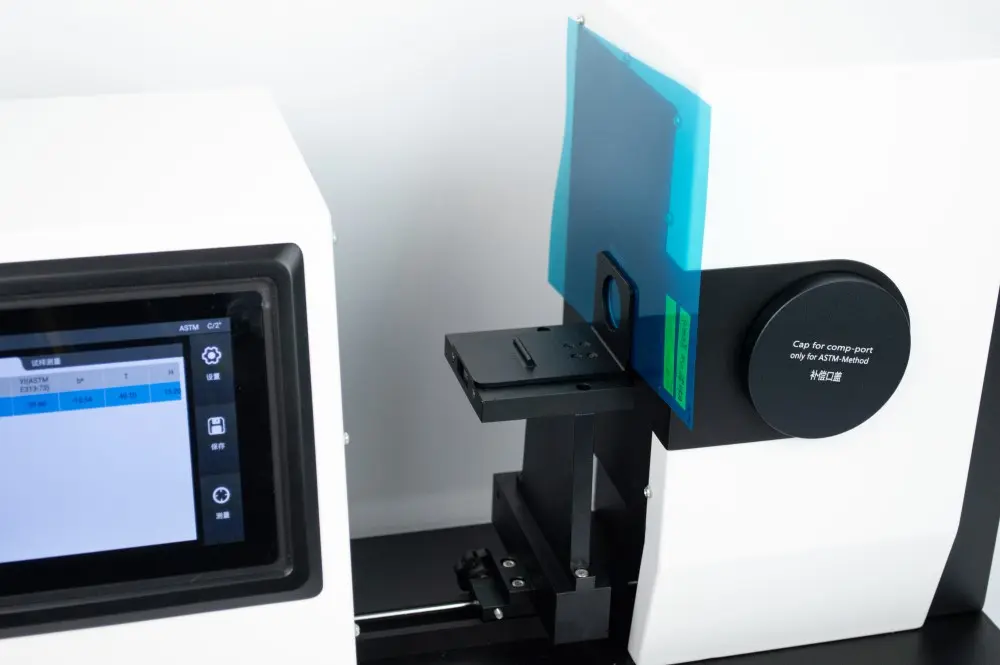

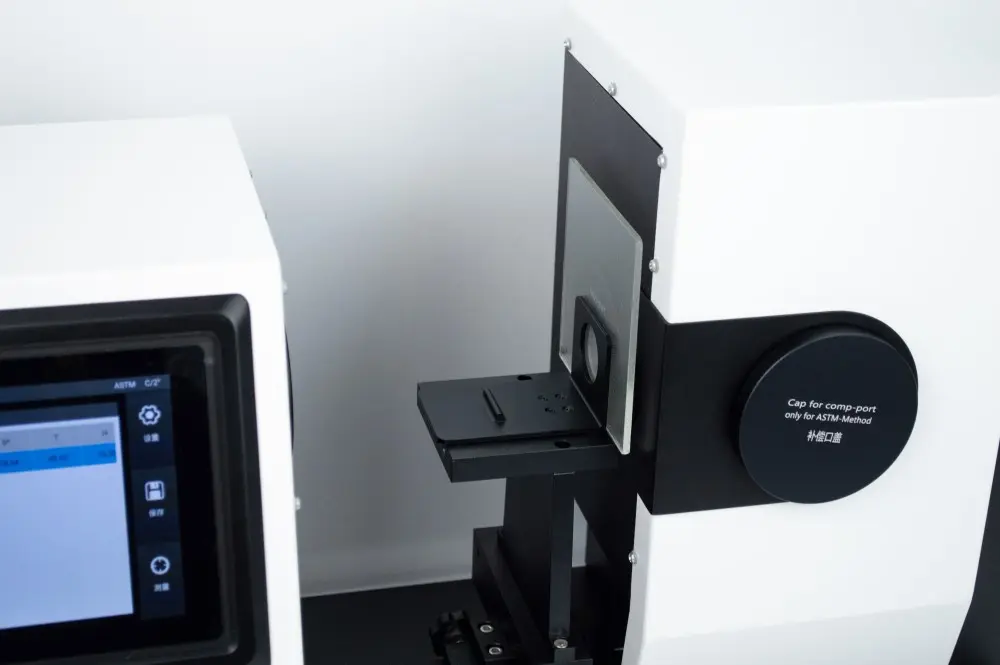

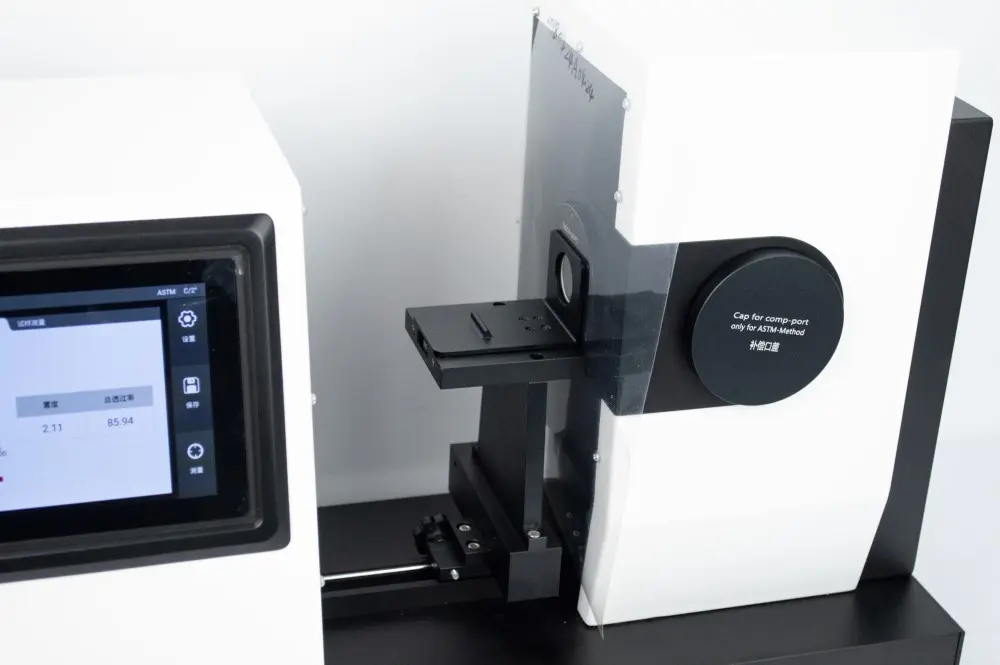

Flexible Sample Handling
-

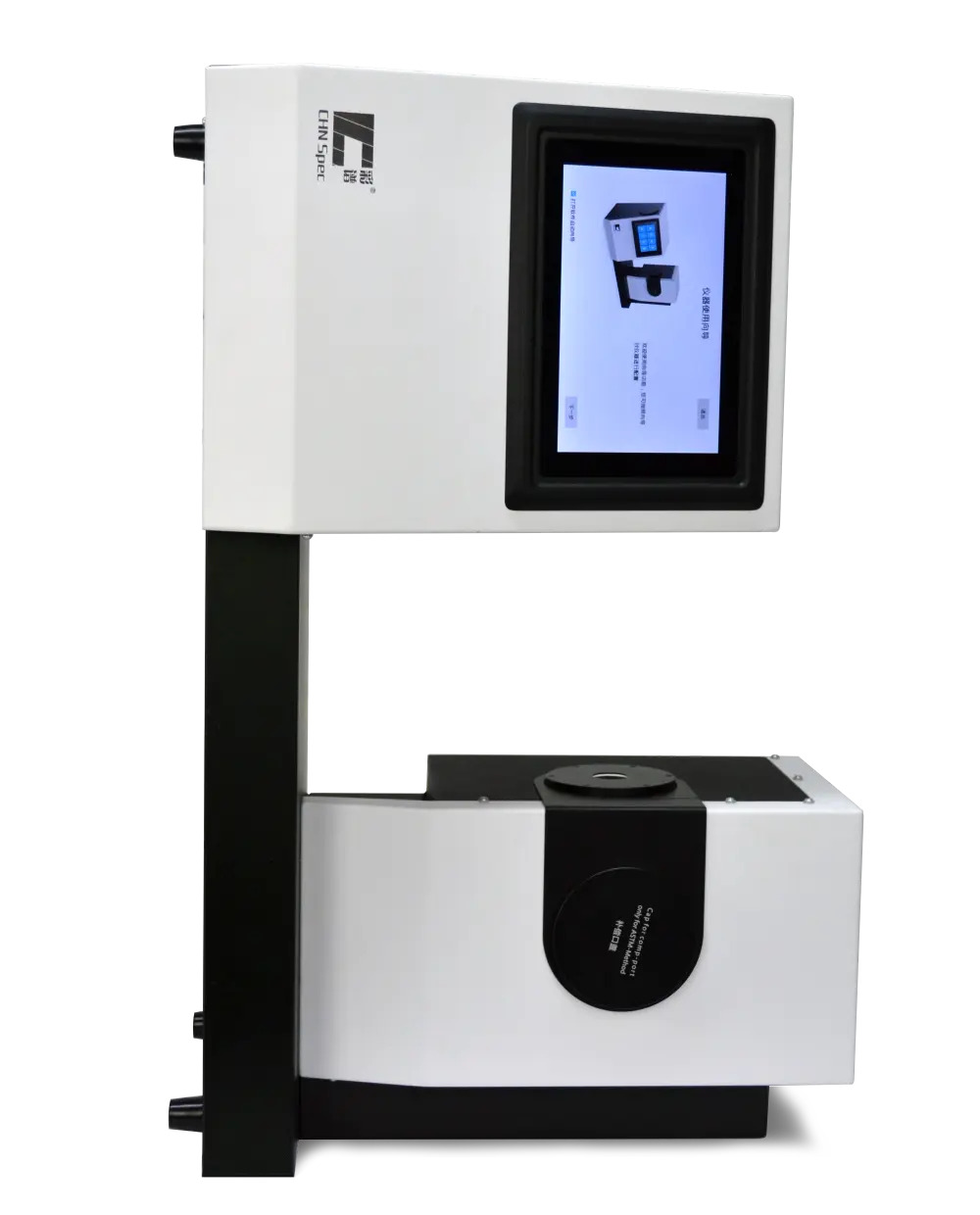

Open measurement area; horizontal/vertical positioning.
-
-
Accessories
-
Abundant fixtures; optional accessories available.
-
Technical Specifications
| Category | Specification |
|---|---|
| Spectral Range | 400–700 nm |
| Wavelength Interval | 10 nm |
| Geometry | 0°/d (diffuse illumination, unidirectional detection) |
| Sample Port | 16.5 mm / 21 mm; 18 mm / 25.4 mm (dual options) |
| Haze Repeatability | Haze <10%: ≤0.05%; Haze ≥10%: ≤0.1%; Transmittance: ≤0.1% |
| Measurement Range | 0–100% Haze/Transmittance |
| Resolution | 0.01% |
| Light Source | Tungsten lamp (CIE-A compliant) |
| Sphere Diameter | 154 mm (integrating sphere) |
| Display | 7-inch Touch Screen (Android OS) |
| Memory | Mass storage for data |
| Interfaces | USB-A, USB-B |
| Power | 220V AC |
| Sample Thickness | ≤145 mm |
| Operating Temp. | 5–40°C (≤80% RH, no condensation) |
| Storage Temp. | -20–45°C (≤80% RH, no condensation) |
| Dimensions (L×W×H) | 598 × 247 × 366 mm |
| Weight | Not specified (typical for benchtop instruments: ~15–25 kg) |
Measurable Parameters & Indices
-
Haze & Clarity: Haze (HAZE), Transmittance (T), Spectral Transmittance, Clarity.
-
Whiteness Indices:
-
ASTM E313-00/73, CIE, ISO 2470/R457, Hunter, Taube Berger, Stensby.
-
-
Yellow Indices (YI):
-
ASTM D1925, ASTM E313-00/73.
-
-
Color Scales:
-
APHA, Pt-Co (Platinum-Cobalt), Gardner, Milm, Tint (ASTM E313-00).
-
-
Color Difference Formulas:
-
ΔEab, ΔECH, ΔEuv, ΔEcmc (2:1/1:1), ΔE94, ΔE00.
-
Included & Optional Accessories
-
Standard: Haze QC management software, power cable.
-
Optional: Custom fixtures, additional calibration tools.
Applications
Ideal for quality control in:
-
Plastics & films (haze/transparency testing).
-
Paints, coatings, & packaging (color consistency).
-
Automotive glass, displays, optical materials.
-
Laboratories requiring ASTM/ISO/JIS compliance.
This instrument combines high precision (0.01% resolution), regulatory compliance, and user-friendly operation (Android touch screen) for rigorous material analysis. For full datasheets or pricing, consult the manufacturer.
