Technical Specifications
-
Conforms to international standards:
ASTM D 1003, ISO 13468, ISO 14782, JIS K 7361, JIS K 7136. -
Open measurement area (no sample size limitations).
-
Unique signal processing technology prevents external light interference.
-
5.0-inch TFT display with optimized user interface.
-
Supports horizontal/vertical measurement for diverse materials.
-
Accessories stored in a drawer for enhanced user experience.
-
Compact size and light weight (easy portability).
-
LED light source (10-year lifespan).
-
No warm-up required; ready for use after calibration.
-
Measurement time: 3 seconds.
-
Three light sources for haze/total transmittance: A, C, D65.
Optional Accessories
-
TH-09/TH-100/TH-110
-
Plastic films/sheets
-
Custom haze standards
-
Apertures
-
Soft film fixture
-
Liquid/sheet material fixture
-
Screen glass fixture
Model Comparison
| Feature | TH-09 | TH-100 | TH-110 |
|---|---|---|---|
| Light Source | LED | LED | LED |
| Illuminants | CIE-A, CIE-C | CIE-A, CIE-C | CIE-A, CIE-C, D65 |
| Standards | ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08, JJF 1301-2011 | ||
| Measured Parameters | HAZE, Transmittance (T) | ||
| CIE Luminosity Function | Y/V (λ) | ||
| Optical Geometry | 0/d | ||
| Aperture Size | 21 mm | 21 mm | 21 mm / 7 mm |
| Measurement Range | 0-100% | ||
| Haze Resolution | 0.01 unit | ||
| Transmittance Resolution | 0.01 unit | ||
| Haze Repeatability | 0.1 unit | 0.08 unit | 0.05 unit |
| Transmittance Repeatability | 0.1 unit | ||
| Sample Thickness | ≤145 mm | ||
| Storage Capacity | 10,000 values | 20,000 values | Mass storage |
| Interface | USB | ||
| Power | DC 12V | ||
| Operating Temperature | 5–40°C (40–104°F) | ||
| Storage Temperature | -20–45°C (-4–113°F) | ||
| Dimensions (L×W×H) | 310 mm × 215 mm × 540 mm | ||
| Instrument Weight | 6 kg | ||
| Standard Accessory | Haze QC software (free) | ||
| Screen Size | 5 inches | 5 inches | 7 inches |
| Integrating Sphere Diameter | 154 mm |

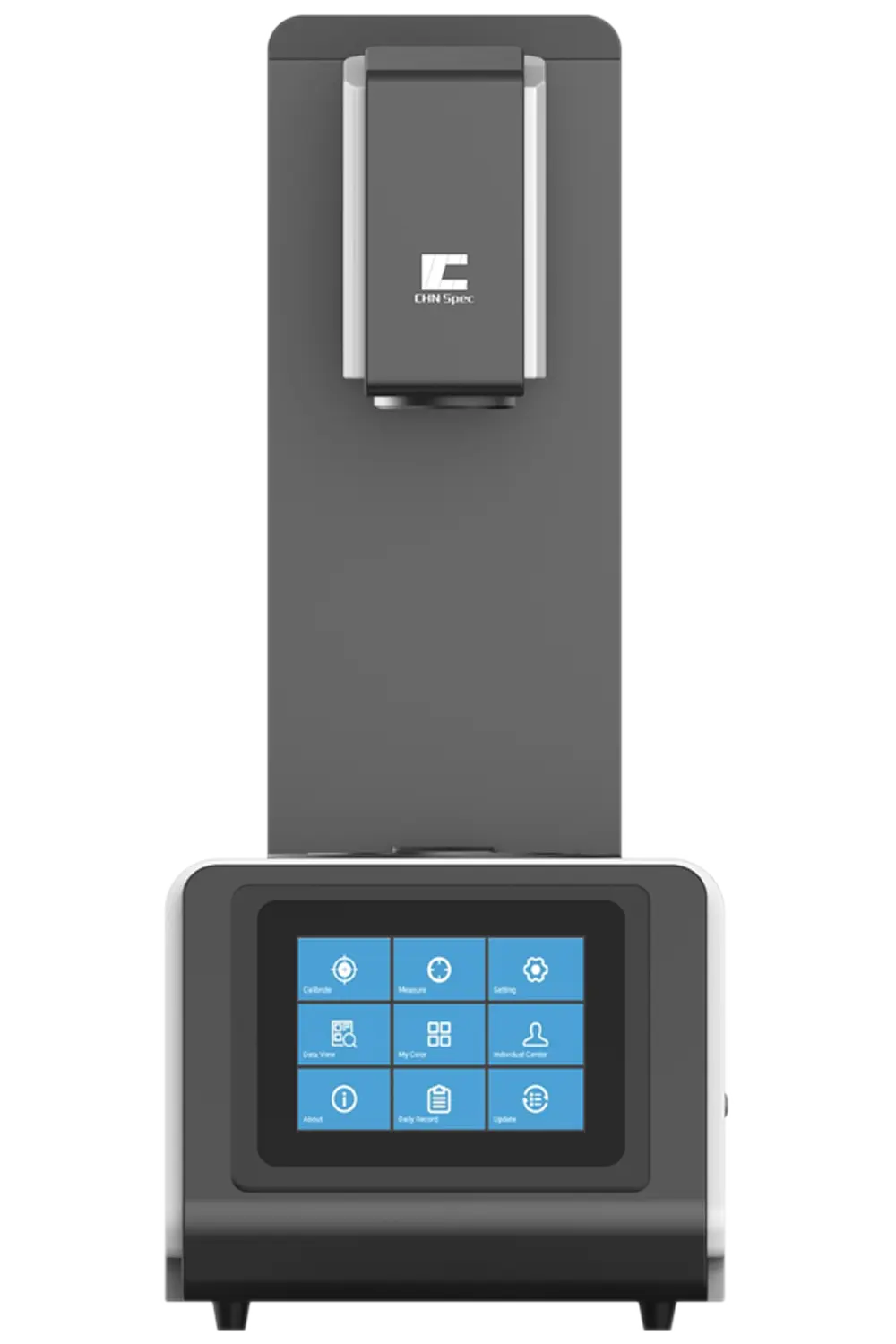

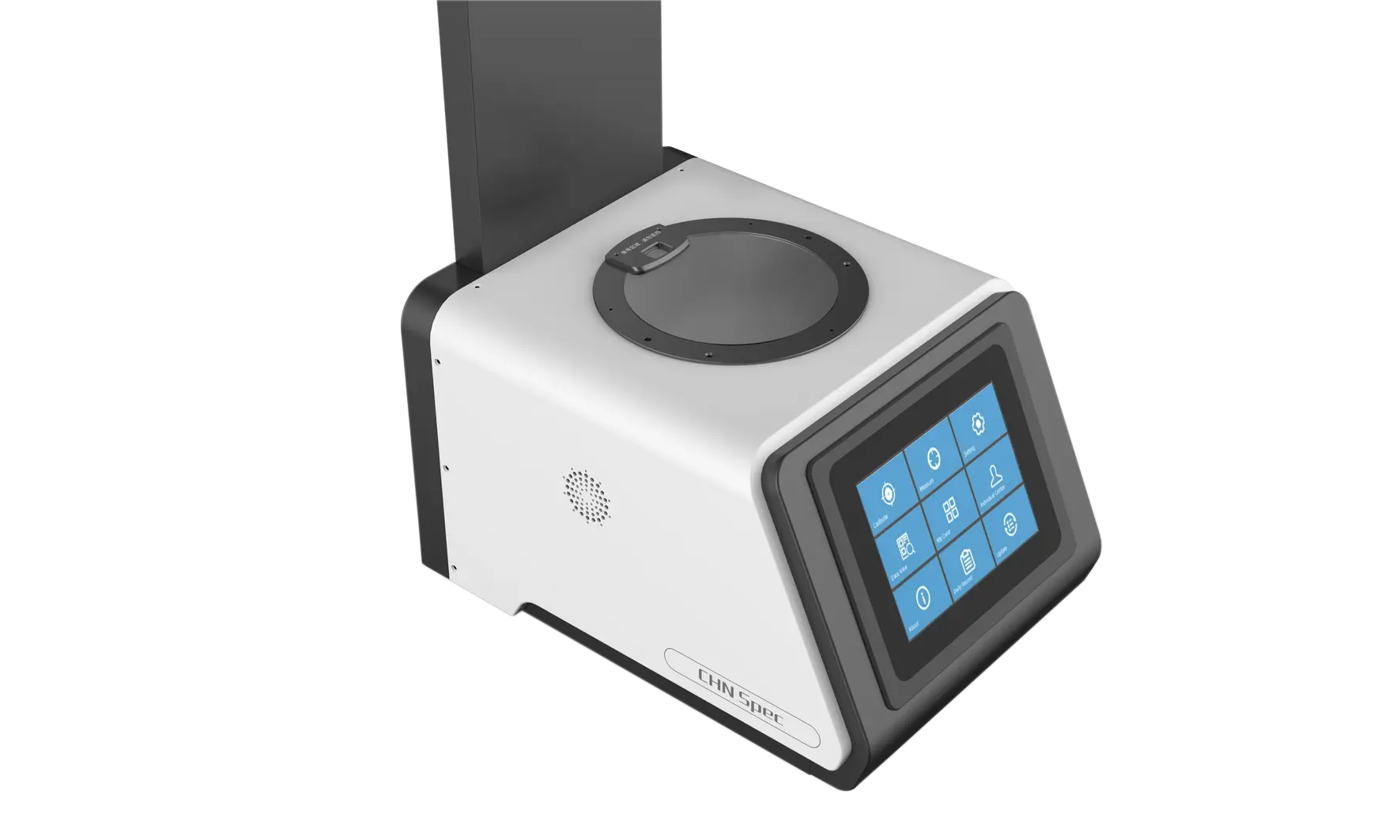

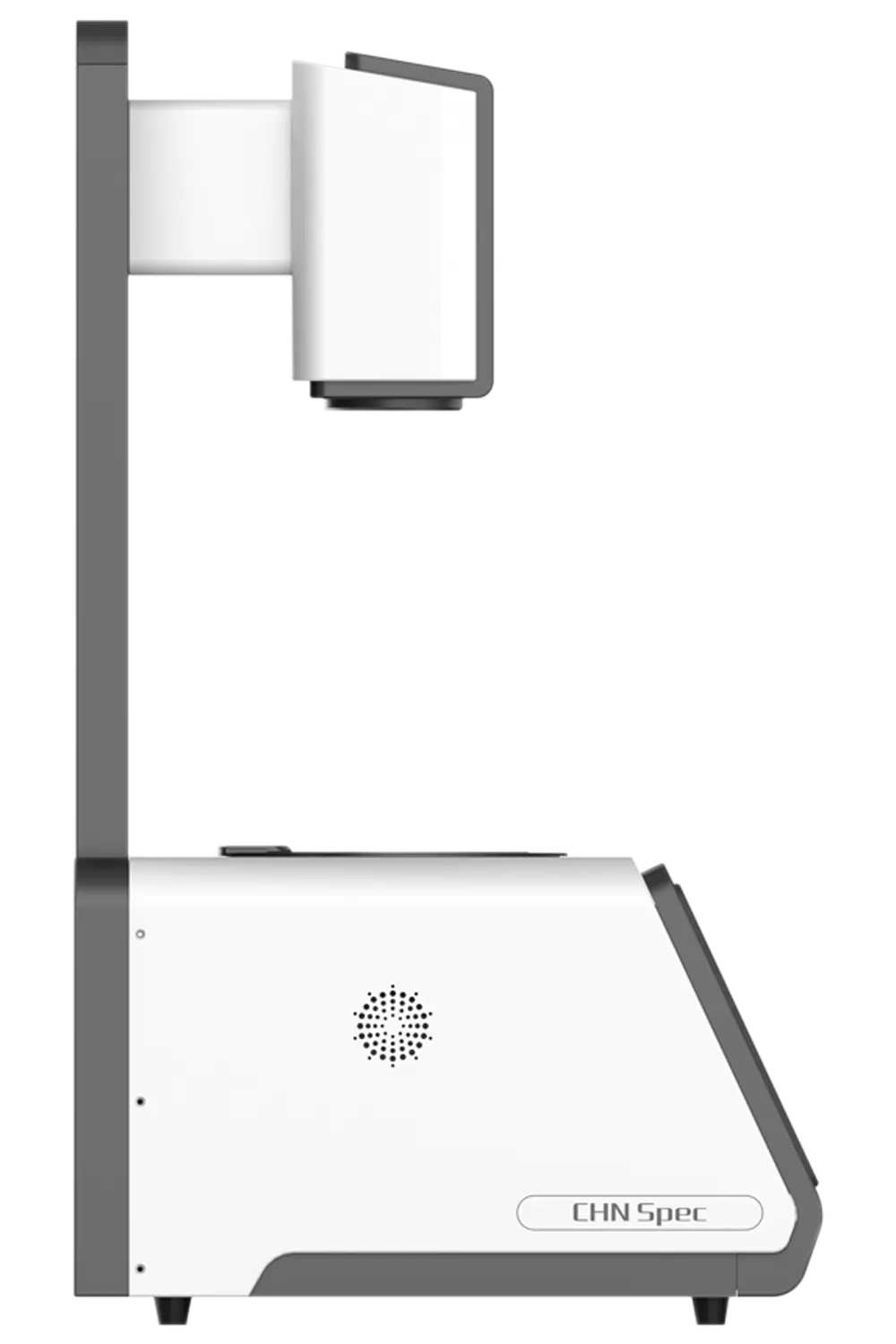

Device Type:
-
TH-09/TH-100: Haze Meter
-
TH-110: Haze Meter
