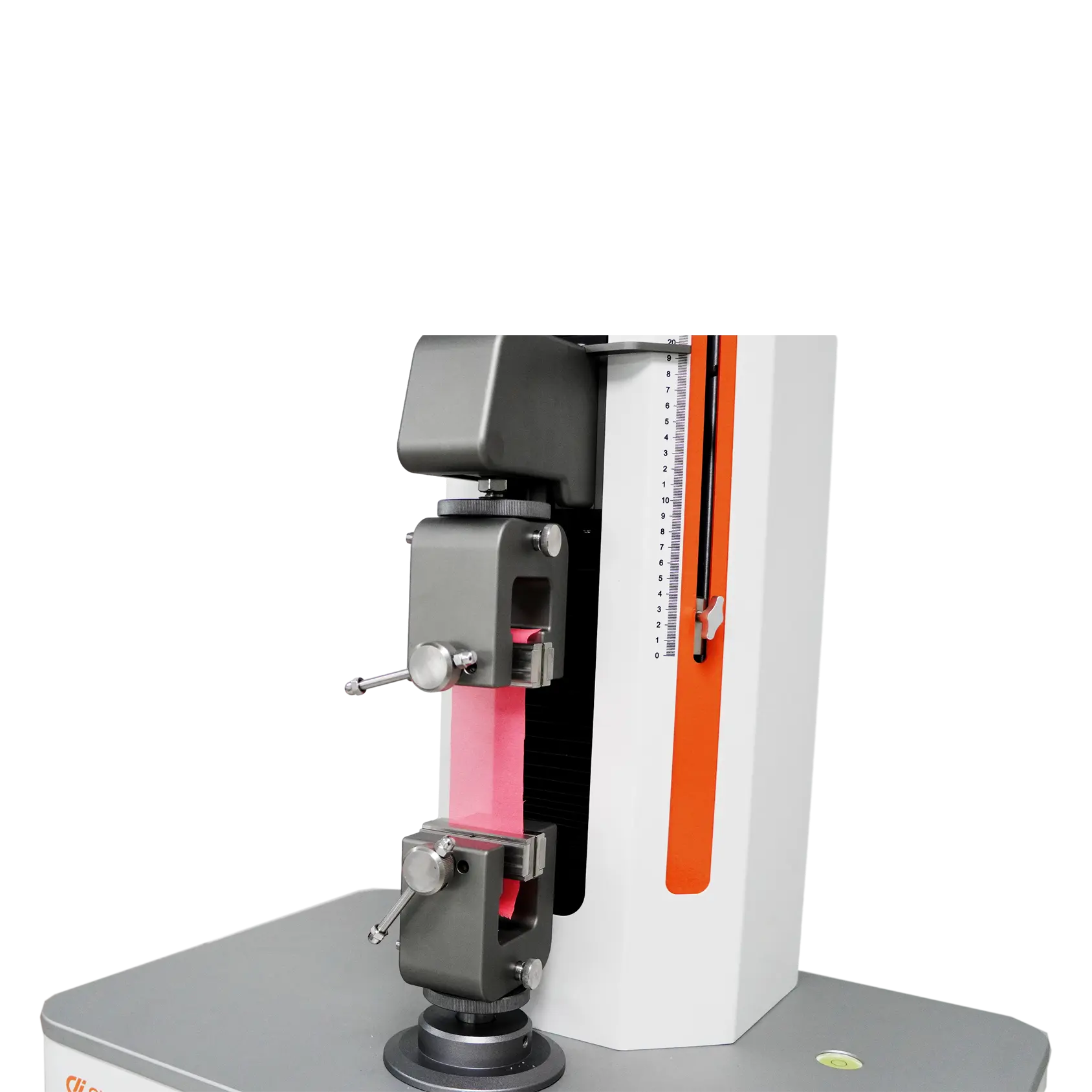

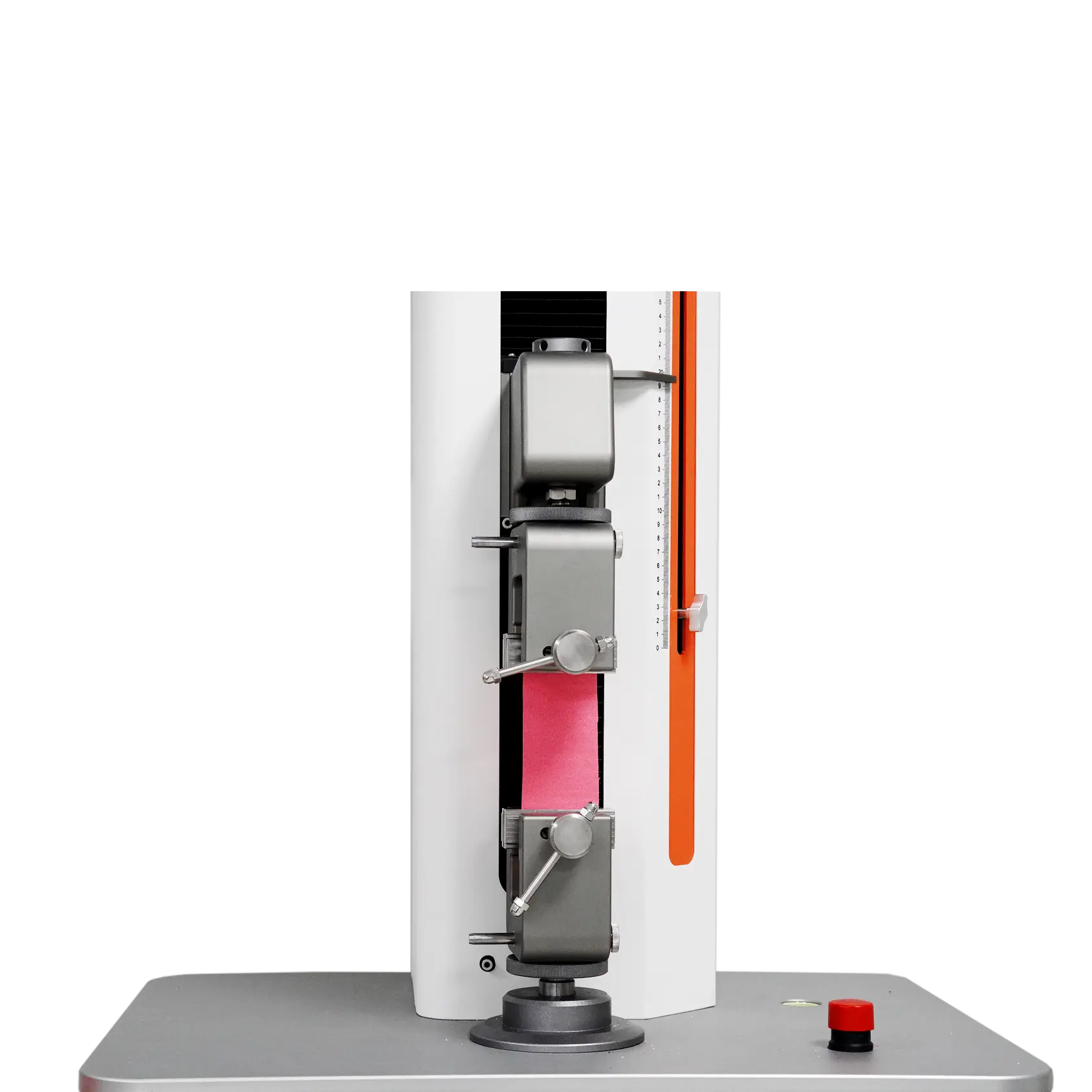

SmartPull: AC Servo-Driven Tensile Tester
Overview
A high-precision tensile testing machine designed for textiles, leather, and footwear. Features AC servo drive and ball screws for exceptional accuracy (±1% force control), supporting tension, compression, bending, tearing, shearing, peeling, and top breaking tests. IoT-enabled via SmarTexLab App.
Key Features & Benefits
-
Precision Engineering
-
AC servo motor + ball screws ensure stable force control (±1% accuracy).
-
Test force range: 0.2–100% FS with ≤1% travel/speed accuracy.
-
Max travel: 800mm (1–500mm/min speed range).
-
-
Safety First
-
Intelligent displacement/torque alarms, overload protection, emergency stop, and travel limiters.
-
-
Multi-Functional Testing
-
Single machine performs 7 test types:
Tension | Compression | Bending | Tearing | Shearing | Peeling | Top breaking
-
-
User-Centric Design
-
Pneumatic grippers: Swap clips in seconds (no sensor change needed for tensile/top break tests).
-
Scratch-resistant surface, side-cutting ergonomics, and tech-forward aesthetics.
-
-
Powerful Software
-
Outputs 10+ parameters: Displacement, max force, elongation, stress, bending stress, speed, etc.
-
Multi-language support with Word/Excel report exports (requires Office 2003–2010).
-
-
IoT Integration
-
Connects to SmarTexLab App → ERP/LIMS for real-time data, remote control, and automated reporting.
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 110V/220V, 50/60Hz |
| Weight | 90 kg (500kg option available) |
| Dimensions (D×W×H) | 630 × 460 × 1470 mm |
| Test Level | Class 1 |
| Travel Accuracy | ≤1% |
| Speed Range | 1–500 mm/min (±1% accuracy) |
| Force Accuracy | ≤1% (0.2–100% FS) |
| Max Travel | 800 mm (without fixture) |
Fixtures & Standards Compliance
Standard Fixtures (Version A):
-
Clamps: 25×25 mm, 25×50 mm, 25×75 mm
-
Standards:
ISO 9073-3, ISO 13934-1/2, ASTM D5034/5035, GB/T 3923.1/2, GB/T 13773.1/2
Optional Fixtures & Standards:
| Fixture | Standards |
|---|---|
| 25×100 mm clamps | ISO 9073-4, GB/T 3917.3 |
| 50×75 mm clamps | ASTM D5587 |
| Leather tearing fixture | ISO 3377-2 |
| Top breaking fixture | ASTM D6797, FZ/T 01030, GB/T 19976 |
| Yarn fixture | ISO 2062 |
| U-type fixture (Ver. C) | ISO 13936-2, ASTM D4964 |
| Linear clamps | ISO 20932-1, ASTM D434, ISO 13936-1 |
(Custom programming available for specialized standards)
Software & Computer Requirements
| Component | Requirement |
|---|---|
| Software (Std.) | Version A: Single-step testing |
| Software (Opt.) | Version C: Multi-step testing |
| CPU | Intel Celeron ≥2GHz |
| RAM | ≥512 MB (1GB+ recommended) |
| Storage | ≥2 GB free space |
| OS | Windows XP/7/8/10 |
| Display | 1024×768 resolution or higher |
| Office Suite | Required for reports (Office 2003–2010) |
Summary: The SmartPull combines laboratory-grade precision (±1% force control), versatile testing capabilities (7 test types), and industrial durability for textiles, leather, and footwear. Its IoT connectivity (SmarTexLab App/ERP/LIMS), safety features, and compliance with 30+ global standards (ISO, ASTM, GB/T) make it ideal for QA labs seeking efficiency, accuracy, and future-proof automation.
