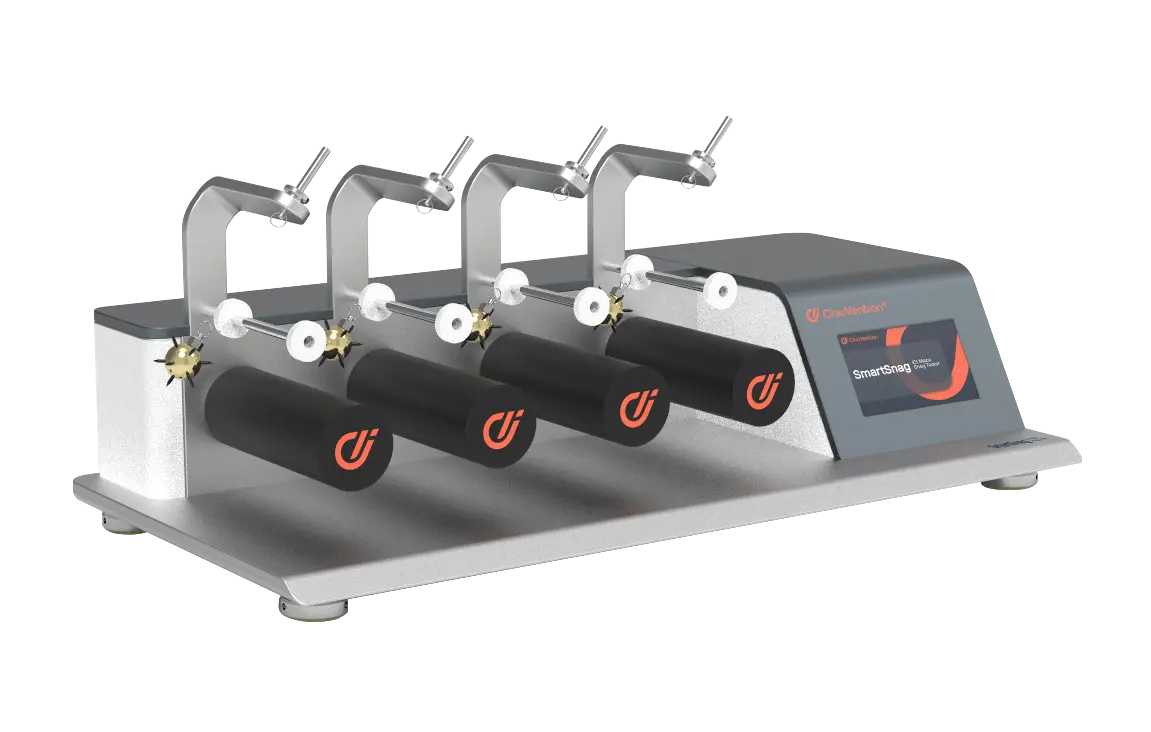

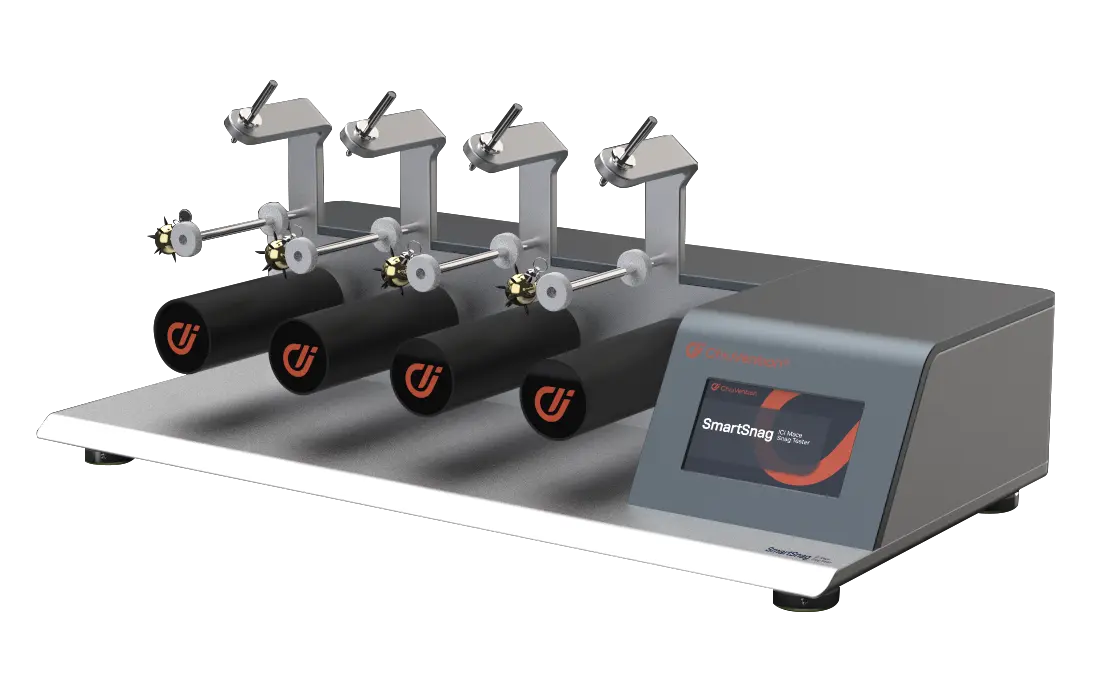

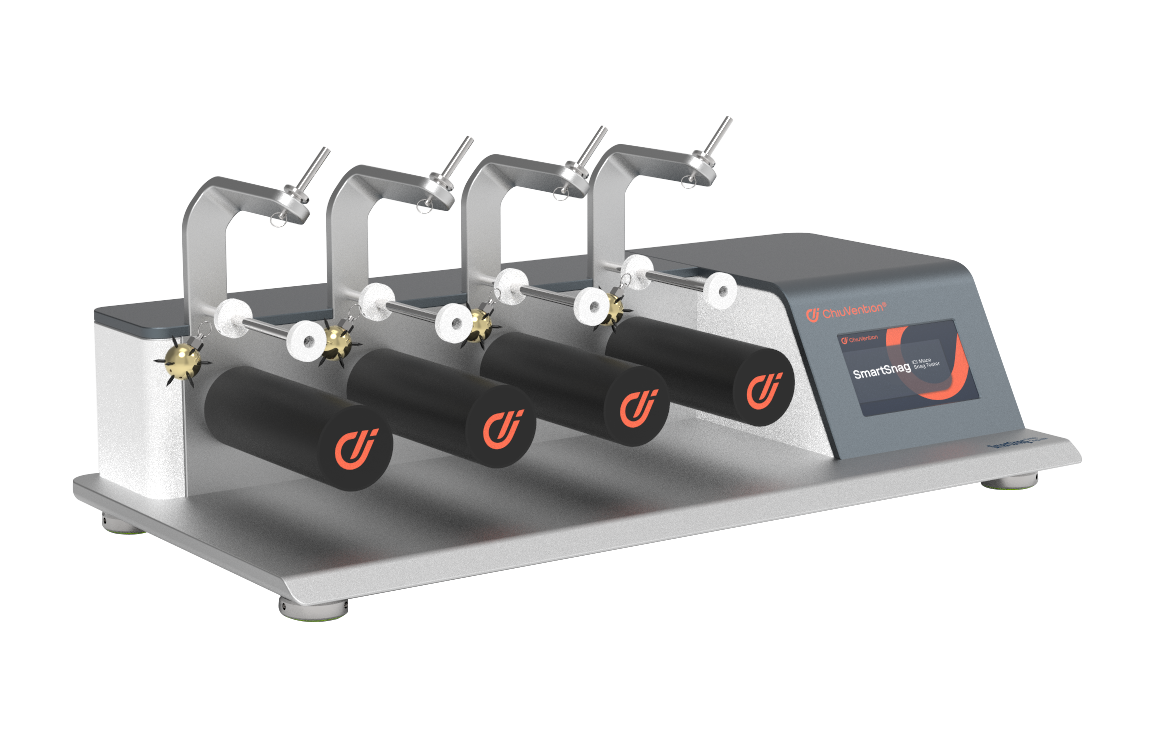

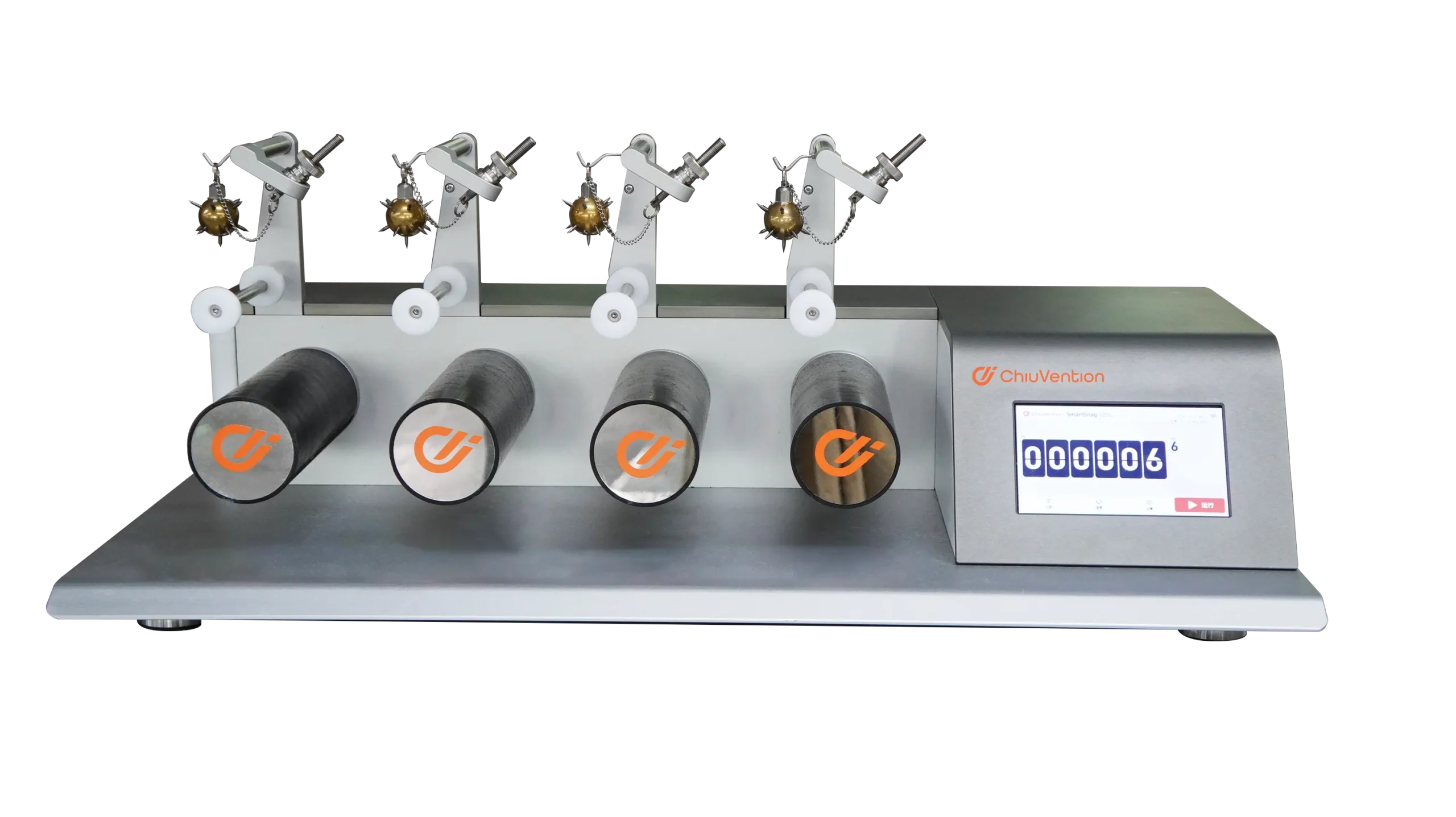

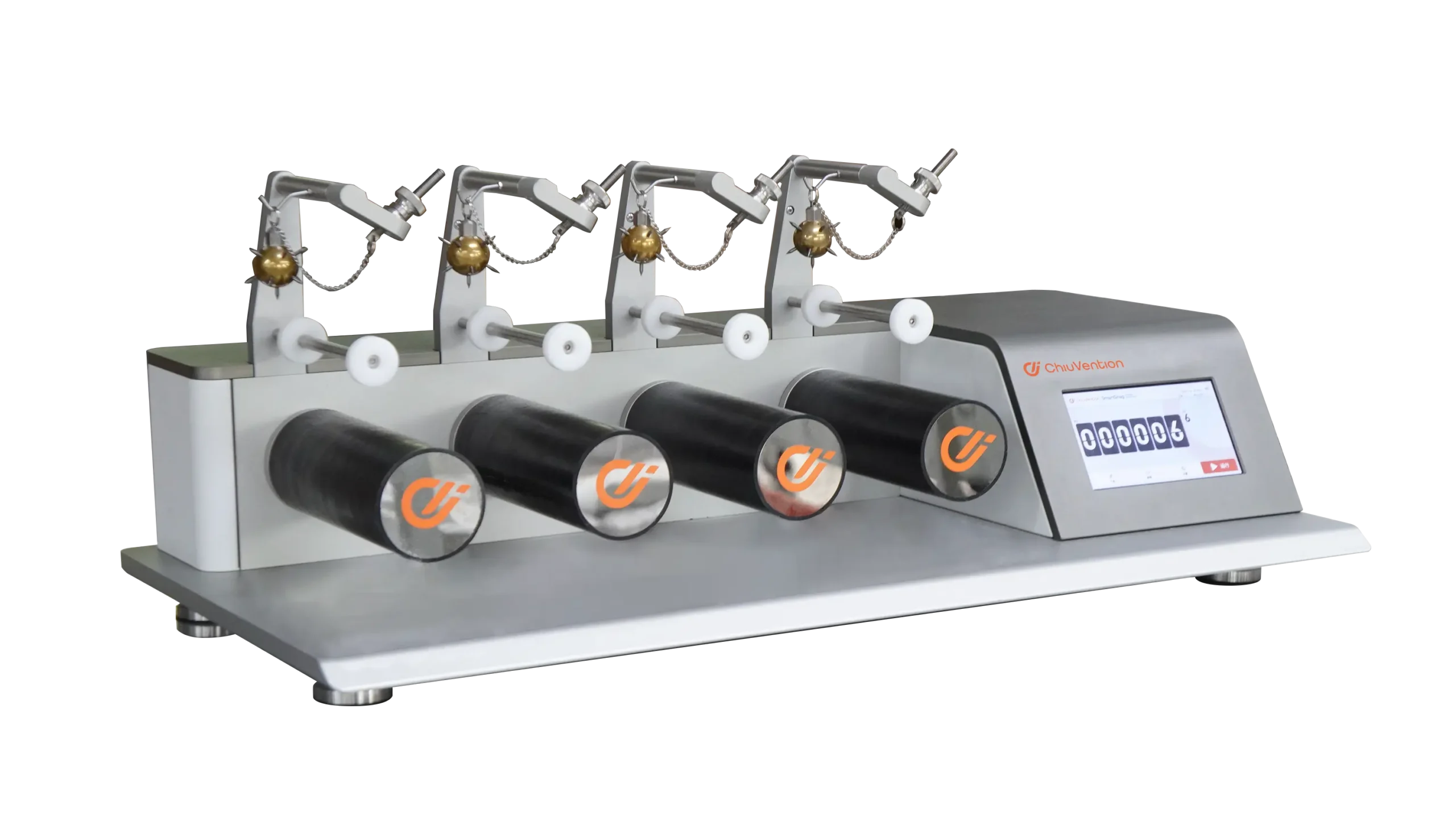

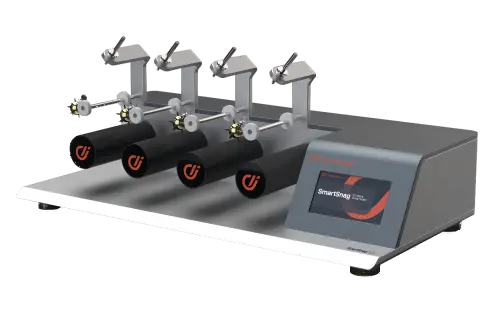

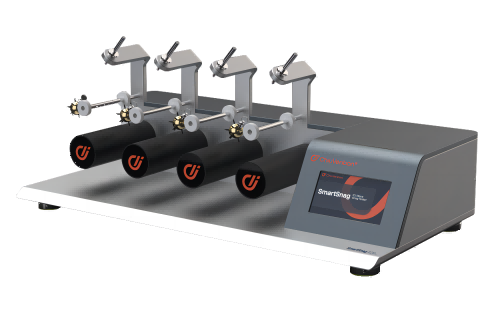

SmartSnag: ICI Mace Snag Tester
Purpose: Evaluates fabric snagging susceptibility (especially outerwear, chemical fibers) in 10 minutes with realistic simulation.
Key Innovations & Benefits
-
Realistic 360° Snag Simulation
-
Spherical nail hammer with tungsten carbide needles ensures random, multi-angle fabric contact.
-
Patented cylinder design for easy felt installation and extended lifespan.
-
-
Precision & Efficiency
-
4 independent stations process multiple samples simultaneously.
-
Servo-driven rotation: (60±2) rpm (adjustable speed).
-
Complete test cycle: 10 minutes.
-
-
Durable & Quiet Operation
-
Hard-anodized aluminum alloy + stainless steel construction.
-
High-precision servo motor operates at ≤60 dB (library-quiet).
-
-
Global Compliance
-
Meets ASTM D3939, GB/T 11047, JIS L1058 standards.
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 110V/220V, 50/60Hz |
| Weight | 62 kg |
| Dimensions (L×W×H) | 900 × 460 × 390 mm |
| Stations | 4 |
| Cylinder Diameter | 82 mm (with rubber) |
| Mace Weight | (160±10) g |
| Felt Thickness | 3.0–3.2 mm |
| Guide Bar Width | 125 mm |
| Hammer-to-Bar Distance | 45 mm |
Included Accessories
| Item | Qty/Details |
|---|---|
| Felt Sleeves | 1 pack (4 pcs) |
| Rubber Rings | 8 pcs |
| Measuring Rod | 1 pc (45 mm) |
| Sampling Board | 1 pc (205×330 mm) |
| Mace | 4 pcs |
| Steel Ruler | 1 pc (200 mm) |
| Wrenches | 8–10 mm open-end + 1.5 mm hex |
Optional Accessories
| Item | Details |
|---|---|
| Tungsten Carbide Points | 1 pack (12 pcs) |
| ASTM/GB Felt Sleeves | 1 pack each (4 pcs) |
| Snagging Standard Photographs | 1 pack (9 pcs) |
| Extra Mace Set | 1 set |
Compliance Standards
-
ASTM D3939: Standard Test Method for Snagging Resistance of Fabrics (Mace Test)
-
GB/T 11047: Textiles – Test method for snagging resistance – Mace method
-
JIS L1058: Testing method for snagging of woven/knitted fabrics
Summary: The SmartSnag delivers lab-accurate snag testing in 10 minutes via patented spherical nail hammers and servo-driven rotation. Its 4-station throughput, rust-proof construction, and compliance with global standards (ASTM/GB/JIS) make it ideal for textile QA labs prioritizing speed and reliability.
