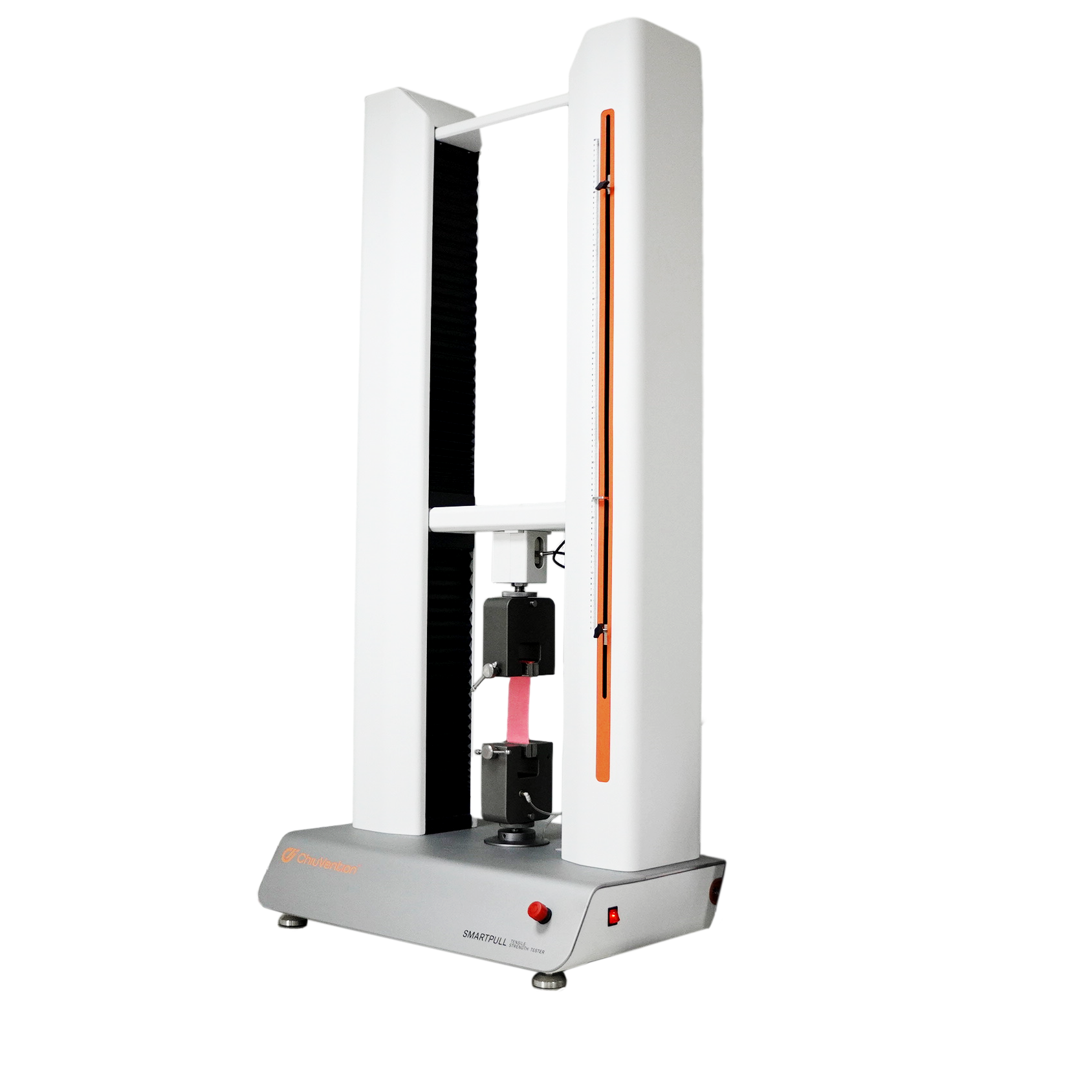

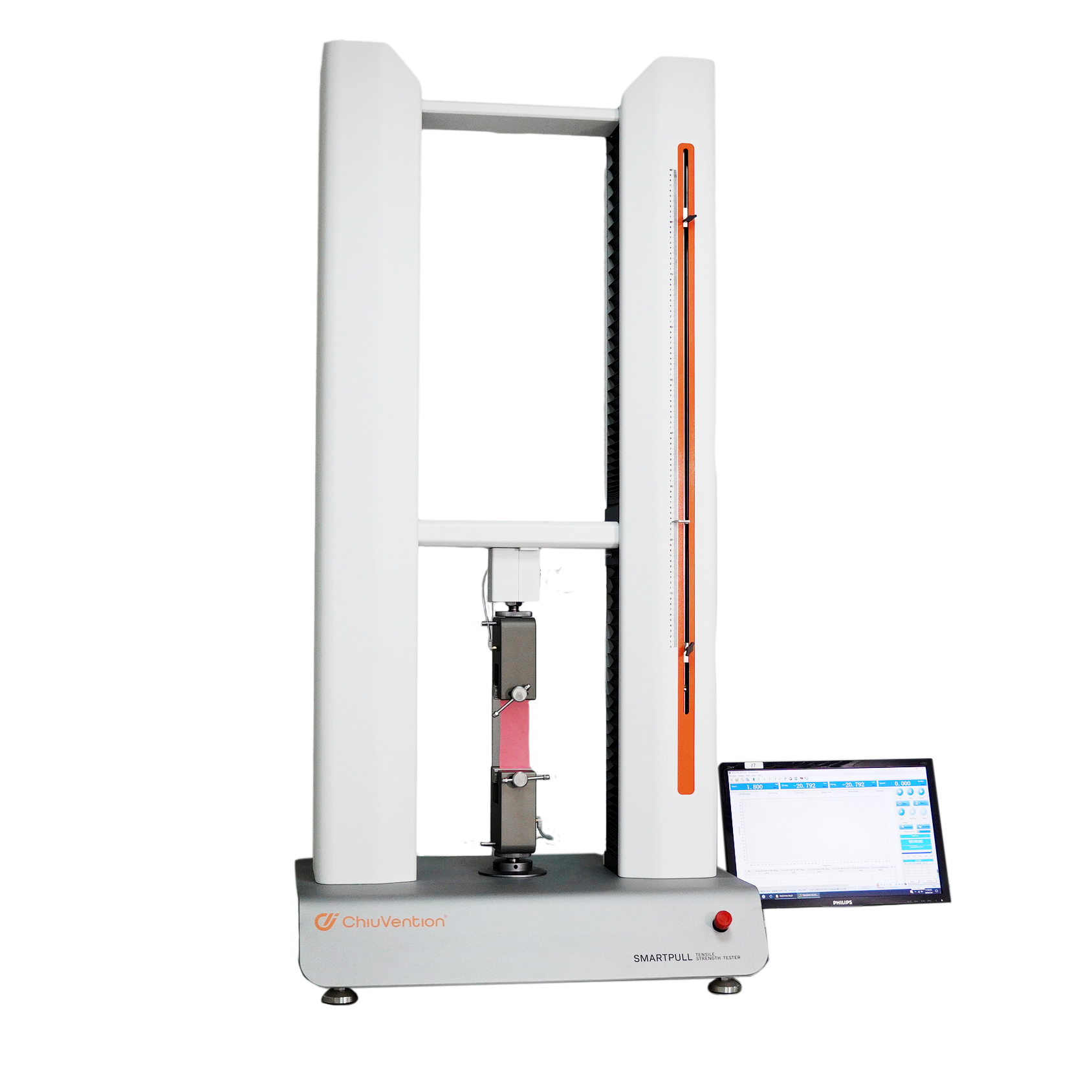

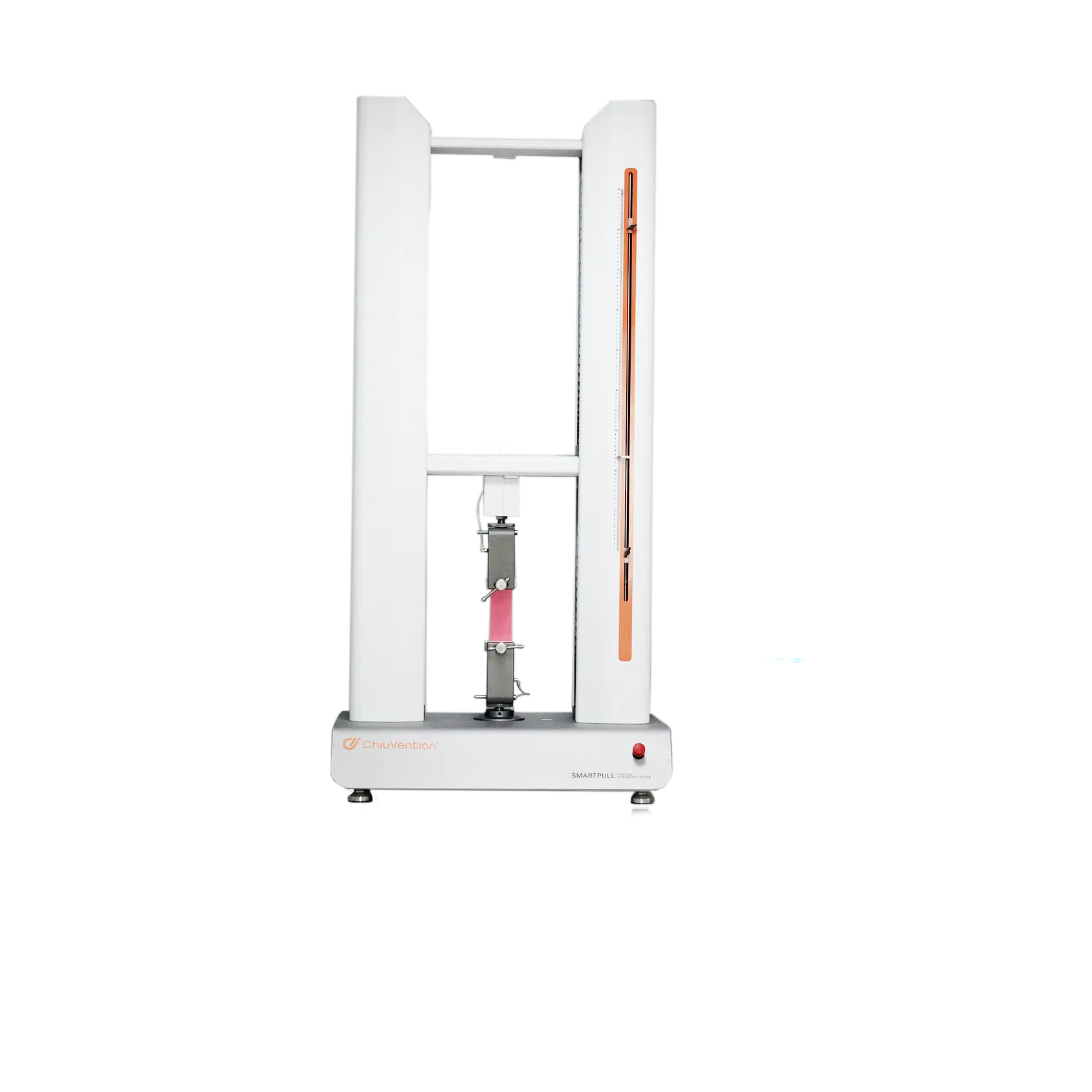

SmartPull: Advanced AC Servo-Driven Tensile Tester
Purpose: Precision testing for textiles, leather, footwear (tension, compression, bending, tearing, shearing, peeling, top-breaking).
Key Innovations
-
Precision Engineering
-
AC servo motor + ball screws: ±1% force accuracy (0.5–100% FS).
-
Constant rate control: 0.5–100% FS.
-
Max travel: 900mm (1–500mm/min speed, ±1% accuracy).
-
-
Safety & Reliability
-
Active displacement/torque alarms, overload protection, emergency stop, and travel limiters.
-
-
Lightweight & Durable
-
160kg (100kg lighter than 1st gen) with scratch-resistant tech-design.
-
Dimensions: 830×600×1730 mm (D×W×H).
-
-
Customizable
-
Optional 5–10KN S-type load cell for expanded tests.
-
Software supports automated repeated testing.
-
-
Smart Software
-
Outputs 10+ parameters: Force, stress, elongation, bending stress, speed, etc.
-
Multi-language + Word/Excel reports (requires Office 2003–2010).
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 110V/220V, 50/60Hz |
| Weight | 160 kg |
| Test Capacity | 1000 kg (10 kN) |
| Test Level | Class 1 |
| Force Accuracy | ±1% |
| Travel Accuracy | ≤1% |
| Speed Range | 1–500 mm/min (±1% accuracy) |
Fixtures & Compliance
Included (Version A):
-

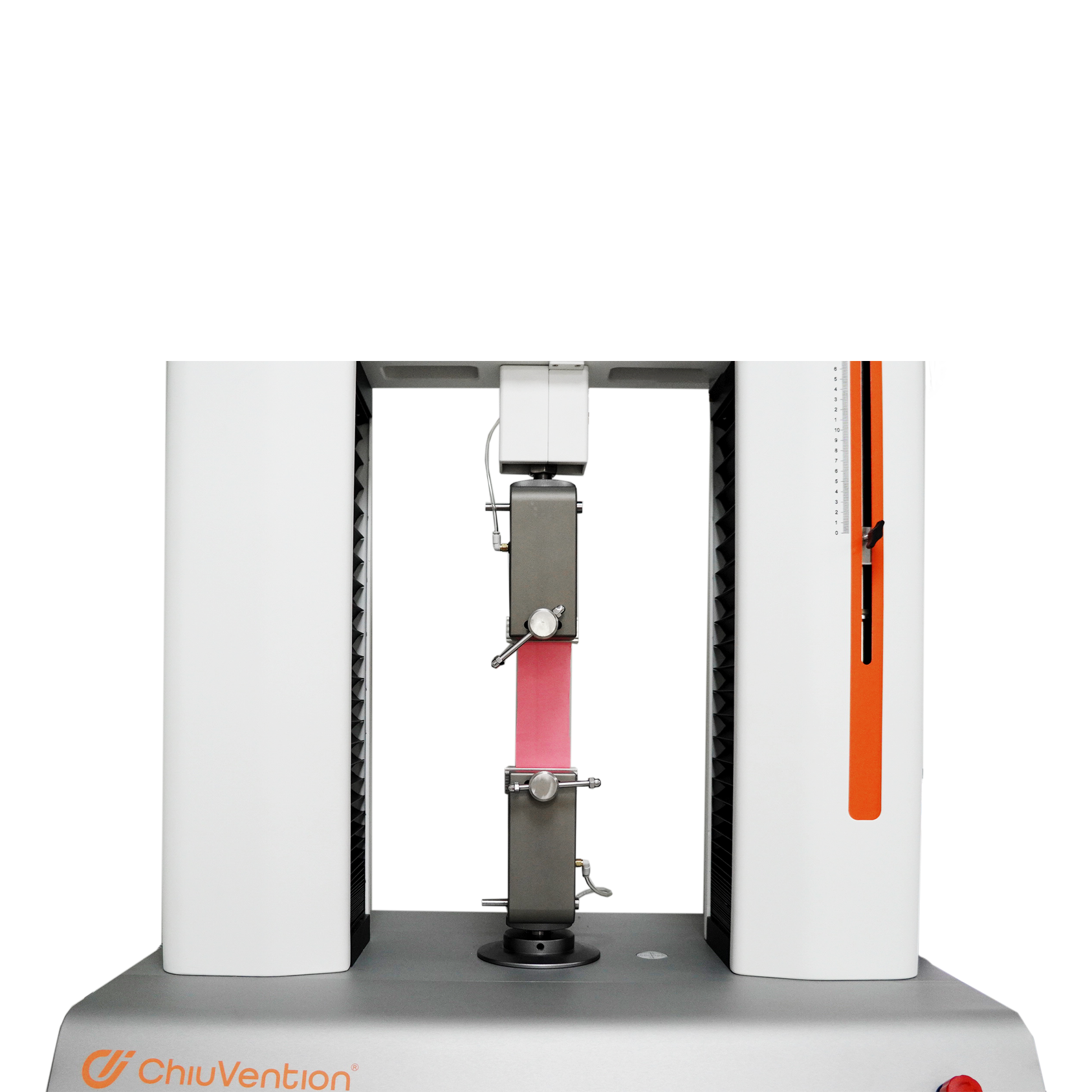

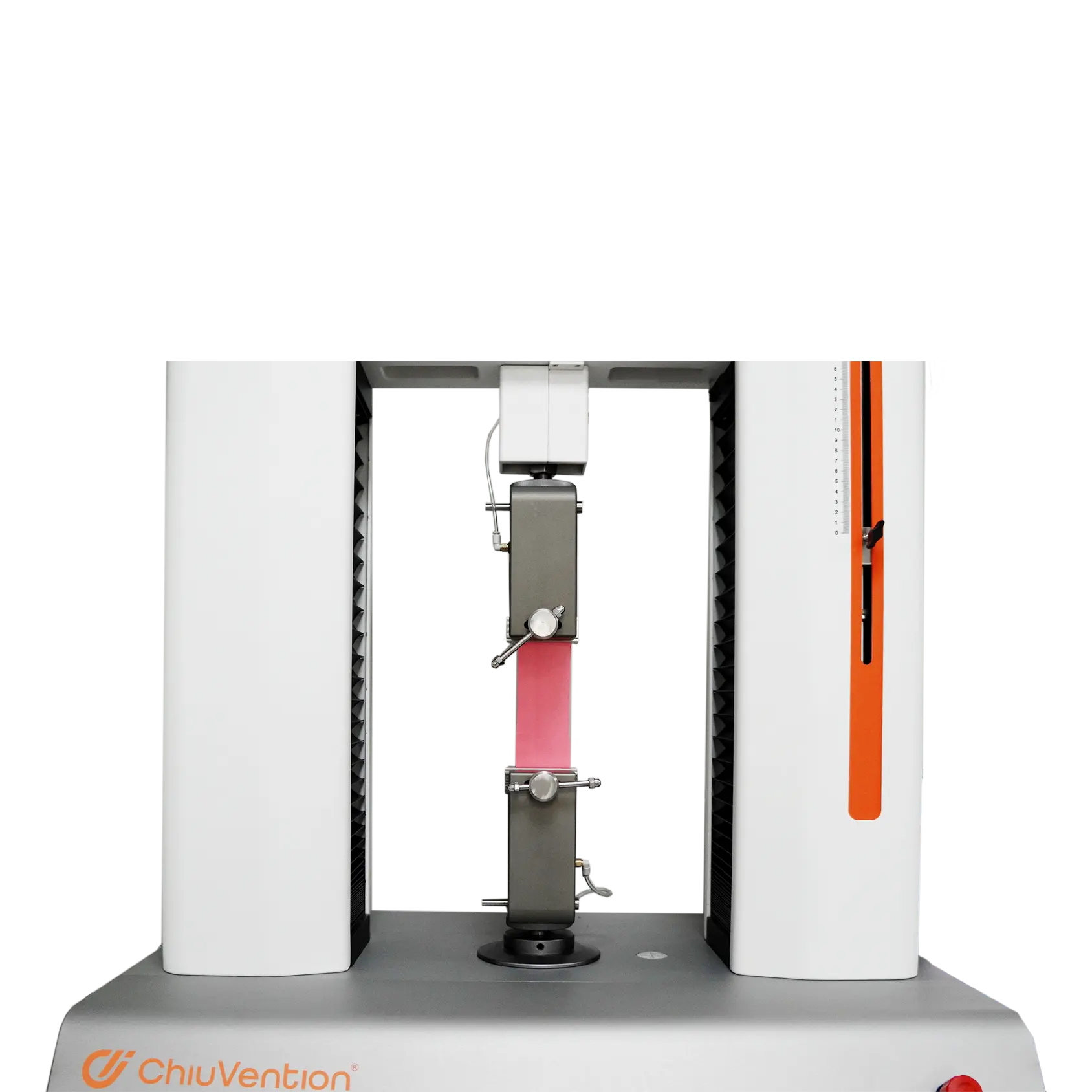

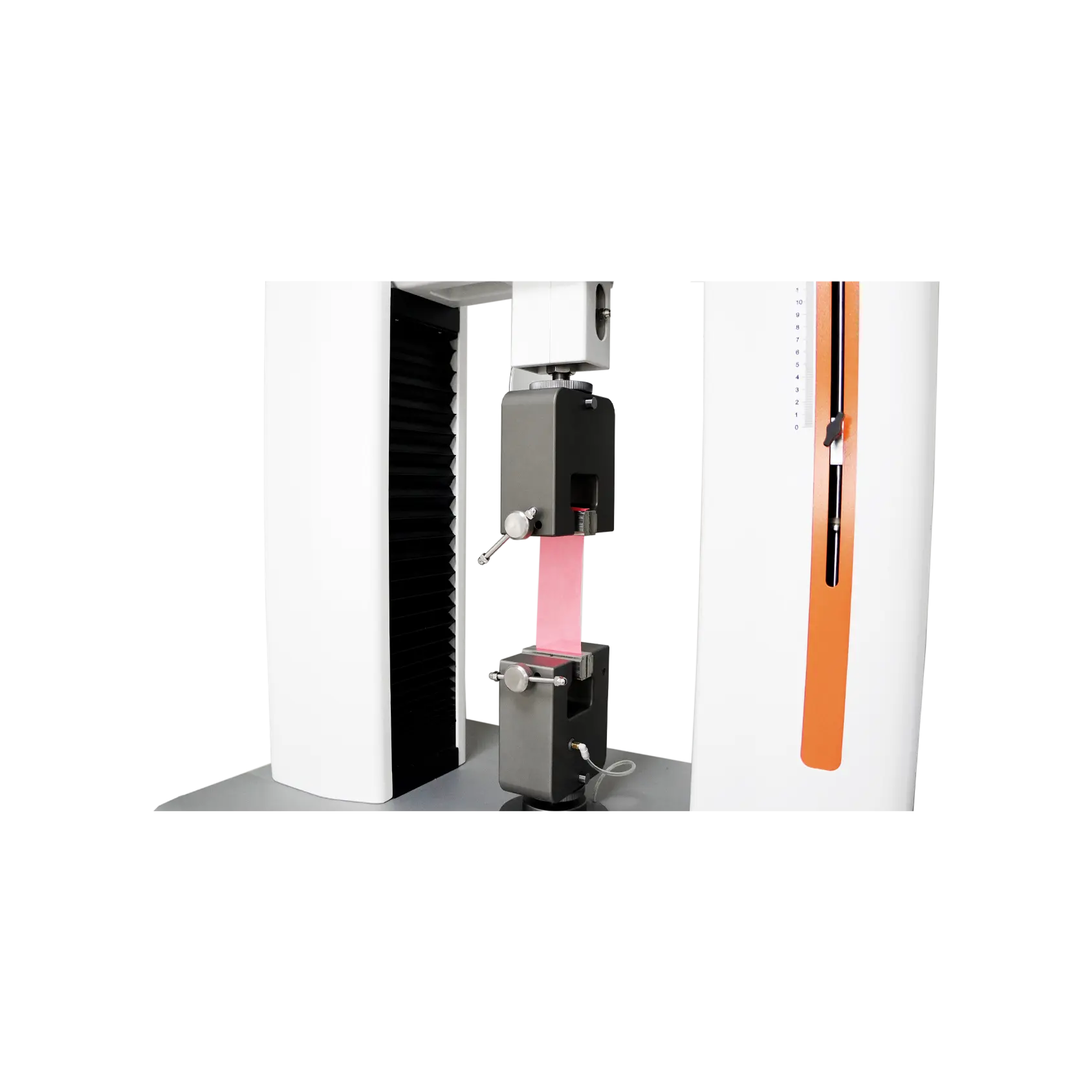

Clamps: 25×25 mm, 25×50 mm, 25×75 mm
-
Standards:
ISO 9073-3, ISO 13934-1/2, ASTM D5034/5035, GB/T 3923.1/2, GB/T 13773.1/2
Optional Fixtures & Standards:
| Fixture | Standards |
|---|---|
| 25×100 mm clamps | ISO 9073-4, GB/T 3917.3 |
| Leather tearing | ISO 3377-2 |
| Top breaking | ASTM D6797, GB/T 19976, FZ/T 01030 |
| U-type (Ver. C) | ISO 13936-2, ASTM D4964 |
| Custom programming available |
Software & Requirements
-
Standard: Version A (single-step tests).
-
Advanced: Version C (multi-step tests).
-
Computer:
-
OS: Windows XP/7/8/10
-
CPU: Intel Celeron ≥2GHz
-
RAM: ≥512 MB (1GB+ recommended)
-
Display: 1024×768+ resolution
-
Summary: The SmartPull delivers lab-grade accuracy (±1% force control), unmatched versatility (7+ test types), and industrial durability at 160kg. Customizable hardware/software, compliance with 20+ global standards (ISO/ASTM/GB), and lightweight design make it ideal for textile/footwear QA labs prioritizing precision and efficiency.
