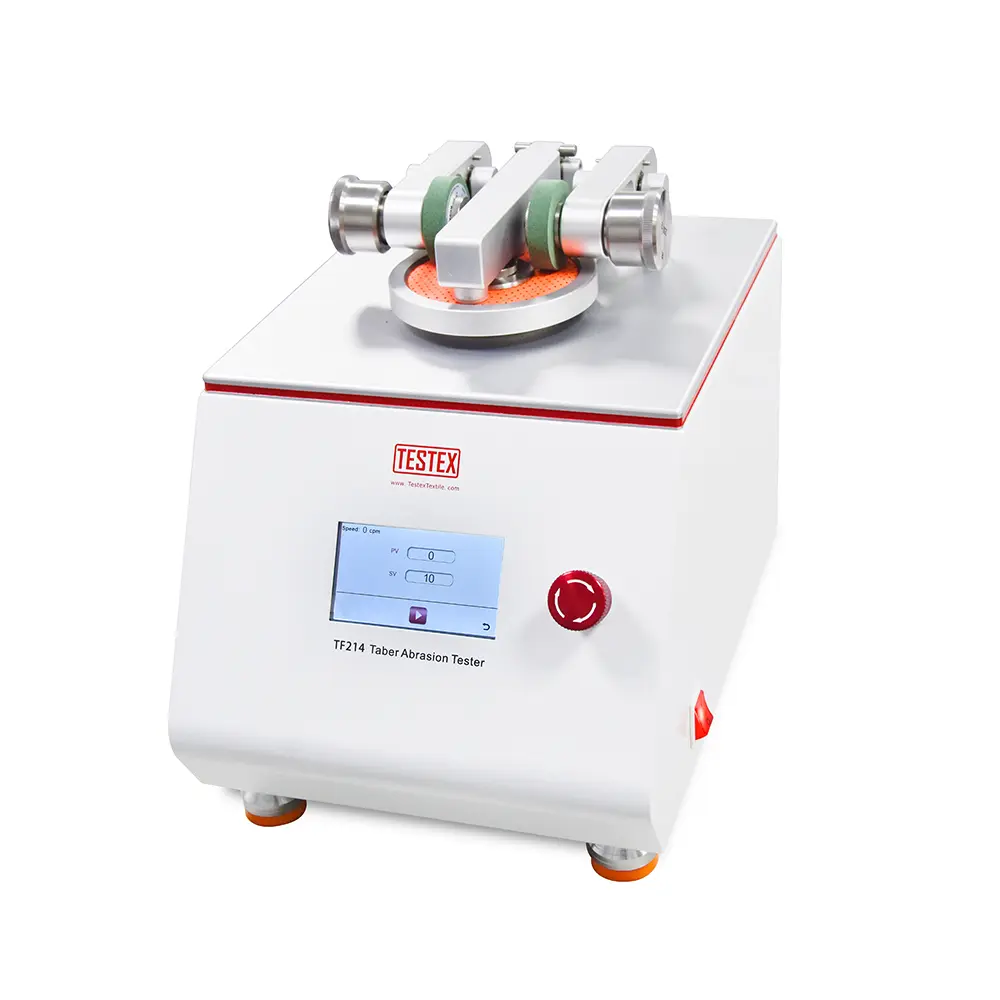

Taber Abrasion Tester (Taber Abraser)
Determines wear resistance of all structures including fabrics, leather, rubber, paper, metals, paints, plated surfaces, coated materials, glass, etc. Uses X-pattern abrasion via rotary abrasive wheels. Includes full range of auxiliary weights and specimen holders. Abrasive wheels/wheel refacer available on request.
Specifications:
• Wear Round Centre Spacing: 52.4 mm
• Gyration Speed: 60 ± 1 rpm or 72 ± 1 rpm (depends on power supply)
• Counter: 0-999,999 times
• Weights: 2 pcs 250 g, 2 pcs 750 g (produces 250 g, 500 g, 1000 g mass on specimen)
Optional Order:
• Grinding Wheel CS-17/CS-10 or others
• Specimen Mounting Card S-36
• Sandpaper S-11
Models:
• TF214A Taber Abrasion Tester – 1 station
• TF214B Taber Abrasion Tester – 2 stations
Standards:
ISO 5470-1, GB/T 1768, ASTM D3884, ASTM D3389, ASTM D4060, ASTM G195
Power: 220/110V 50/60Hz
G. Weight: 41 kg, 55 kg
P. Dimensions:
650 × 640 × 490 mm (L × W × H)
740 × 660 × 540 mm (L × W × H)
