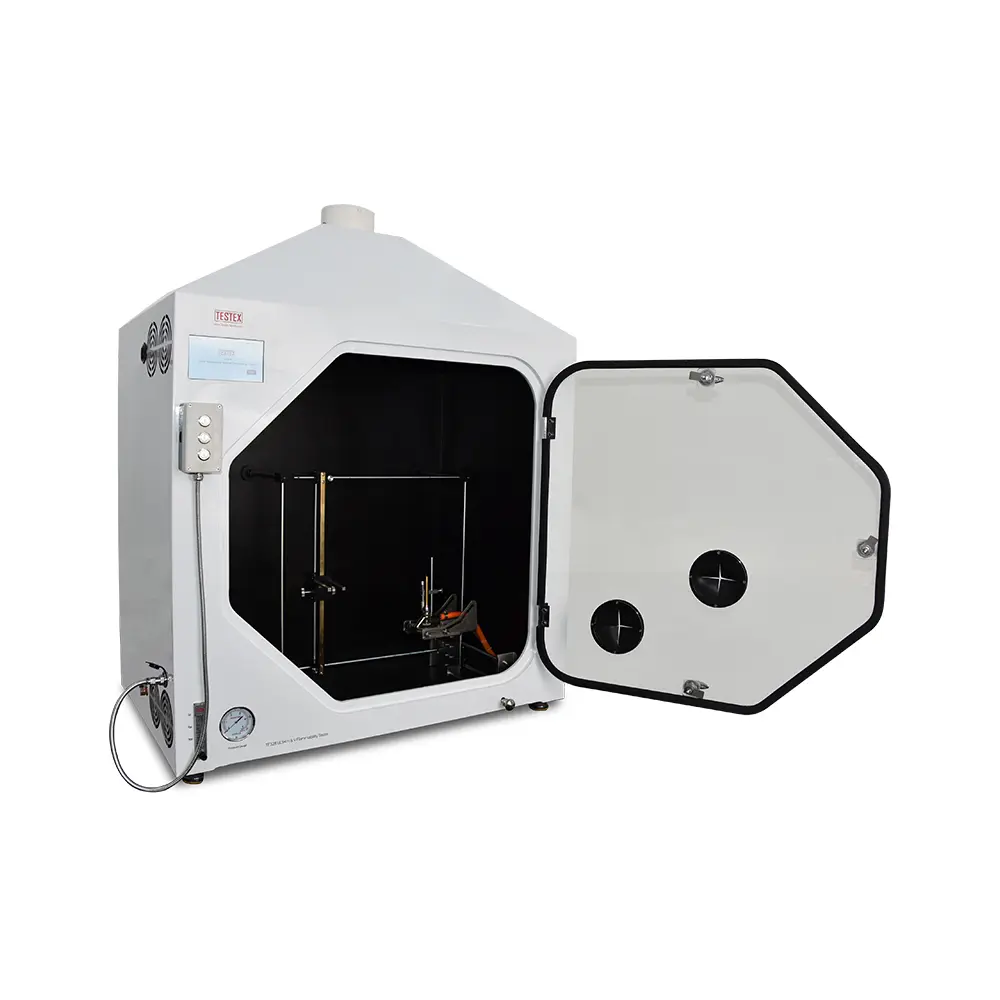

UL94 Horizontal & Vertical Flammability Tester
Used to determine flammability of plastic materials for device/appliance parts. Supplied as a complete system with safety-focused features. Conforms to all five UL 94 horizontal/vertical burner tests and associated ASTM standards.
Specifications and Features:
• Bench-mounted draft-free combustion chamber (0.9 m³ volume) with interior light and exhaust fan for evacuation of combustion products
• Large toughened safety glass door/window for optimal specimen viewing
• Specimen holders
• Fully adjustable horizontal/vertical specimen supports
• ASTM D 5025-compliant burner with angle adjustment (0°/20°/45°) and precision gas control (flow meter, pressure regulator, gauge)
• Two access ports for chamber entry during burner/specimen movement
• Burner wing tip
• Three digital test duration timers
Standards:
UL94-2020 (HB, V-0/V-1/V-2, 5VA/5VB, VTM-0/VTM-1/VTM-2, HBF/HF-1/HF-2), ASTM D635-2018, ASTM D3801-19, ASTM D4804, ASTM D4986, IEC 60695-11-10-2013, IEC 60695-11-20-2015, ISO 9772-2020, ISO 9773-1998, GB/T 2408-2008, GB/T 8332-2008
Optional Standards:
ASTM D5207, IEC 60695-11-3 Method A, IEC 60695-11-4
Standards:
ASTM D3514/D3885/D3886, AATCC 119/120
Power: 220/110V 50/60Hz
G. Weight: 80 kg
P. Dimensions: 790 × 540 × 730 mm (L × W × H)
