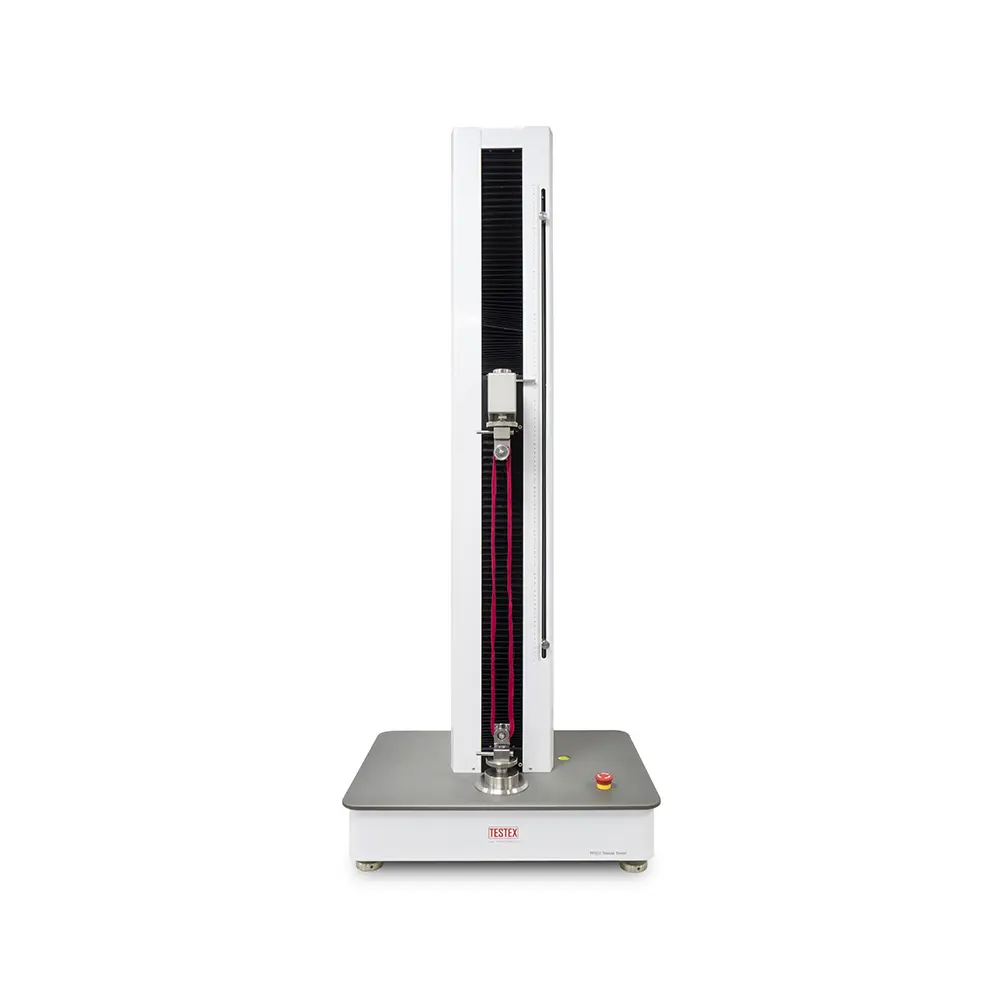

Universal Tensile Tester
Designed to test materials (yarn, fabric, plastic, paper, etc.) in tension, elongation, compression, flexure, burst, shear, peel, and other mechanical properties. Computer-controlled for precise data collection, analysis, and report generation.
Features:
• Higher testing accuracy: AC servo drive and ball screw ensure stable constant force (accuracy ≤1%), guaranteeing reliable/repeatable results.
• Safety guarantee: Intelligent displacement/torque alarm system, overload/emergency stop, and travel limiters ensure safe testing.
• Powerful software: Multilingual support; displays displacement, max force, elongation, stress, speed, and comprehensive test indexes.
• Applicable to multiple standards
Specifications:
• Load cell: 250 kg / 500 kg
• Maximum stroke: 800 mm (excl. clamps)
• Stroke accuracy: ≤1%
• Speed adjustment range: 1–500 mm/min
• Relative error of speed accuracy: ≤1%
• Test force measurement range: 0.2%–100% FS
• Relative error of test force indication: ≤1%
• Software: Included
• Manual grip: Included
• Optional load cell: 5/10/20/30/50/100/150/200 kg
Standards:
ISO 13934-1/2, ISO 13935-1/2, ASTM D5034, ASTM D5035
Computer Configuration (Optional):
• CPU: Intel Celeron ≥2GHz
• Memory: ≥512MB (1GB recommended)
• Hard disk: >2GB space
• Display: ≥1024×768 resolution
• Printer: OS-compatible (for reports)
• OS: Windows XP/7/8/10
• Microsoft Office: 2003/2007/2010 (for Word/Excel reports)
Power: 220/110V 50/60Hz
G. Weight: 130 kg
P. Dimensions: 810 × 670 × 1650 mm (L × W × H)
