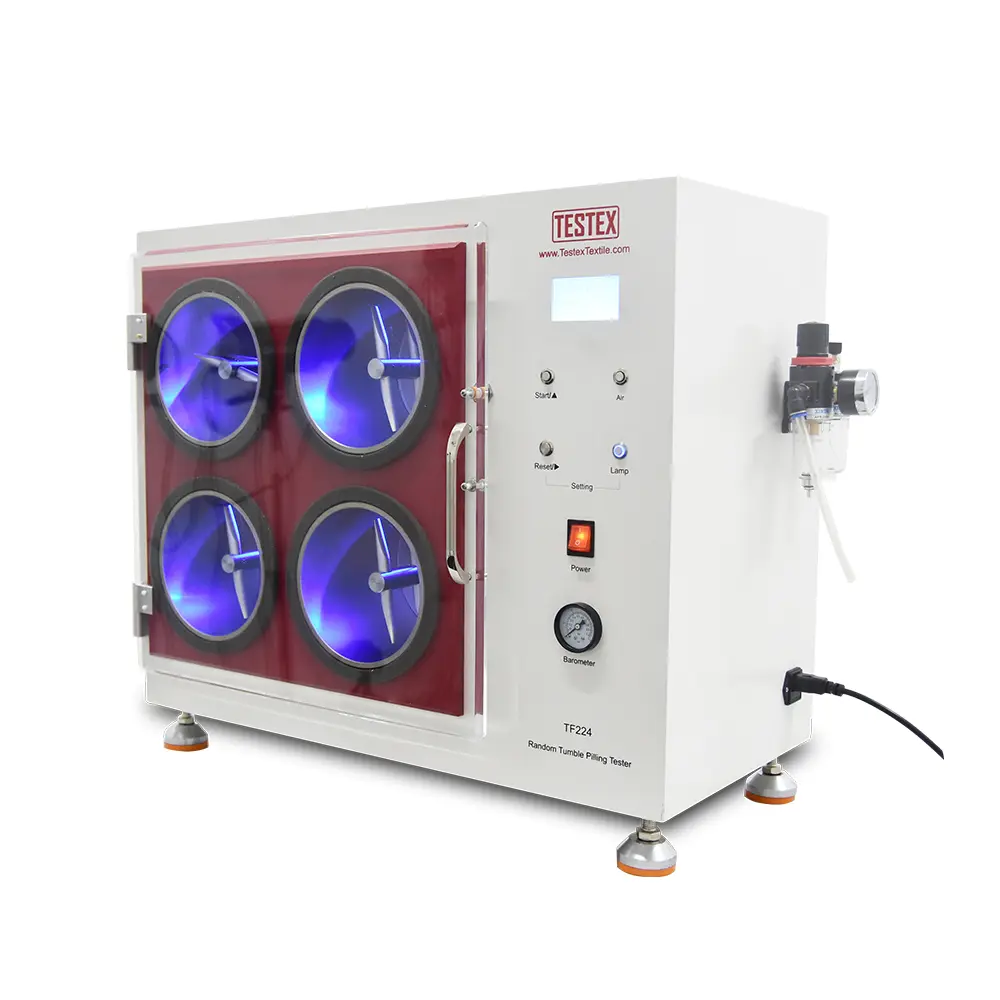

TF224A/B Random Tumble Pilling Tester
Description: The TF224A/B Random Tumble Pilling Tester determines the pilling and fuzzing characteristics of textile fabrics. Stainless steel impellers rotate within individually lit aluminum chambers, tumbling test fabrics against cork liners for a pre-determined time, controlled by a timer and audible alarm. Compressed air is injected to assist tumbling action. Available with 2 (TF224A) or 4 (TF224B) test chambers. A laboratory-standard compressed air supply is required.
Specifications:
- Number of Test Chambers: 2 (TF224A), 4 (TF224B)
- Test Chamber Size: Diameter 146 ± 1 mm
- Rotation Speed: 1200 r/min
- Power Supply: 220/110V, 50/60 Hz
- Gross Weight: 76 kg (TF224A), 118 kg (TF224B)
- Dimensions:
- TF224A: 890 x 500 x 660 mm (L x W x H)
- TF224B: 940 x 490 x 1010 mm (L x W x H)
Optional Accessories:
- Cork Liner (Pack of 50)
- Cotton Sliver (Pack of 9 m)
- ASTM D3512 Photographic Standards
Standards:
- ASTM D3512
Models:
- TF224A: Random Tumble Pilling Tester – 2 stations
- TF224B: Random Tumble Pilling Tester – 4 stations
