Product Features
-
Adopts D/8 geometry (Diffused Illumination, 8° viewing) with SCI for enhanced measurement accuracy
-
Utilizes spectral sensor for reflectance data (superior to colorimeters)
-
Auto Calibration capability
-

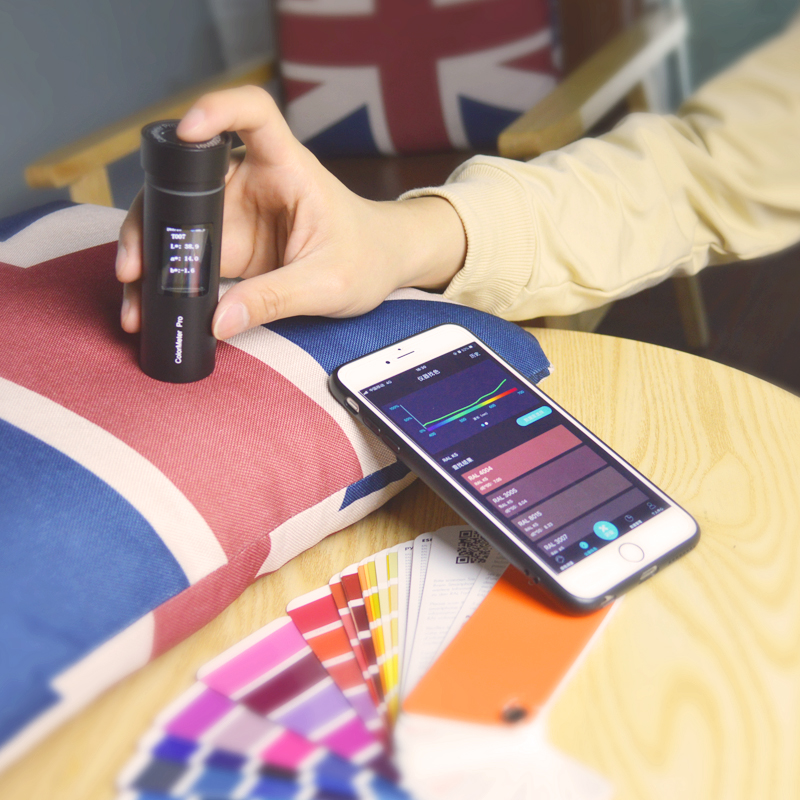

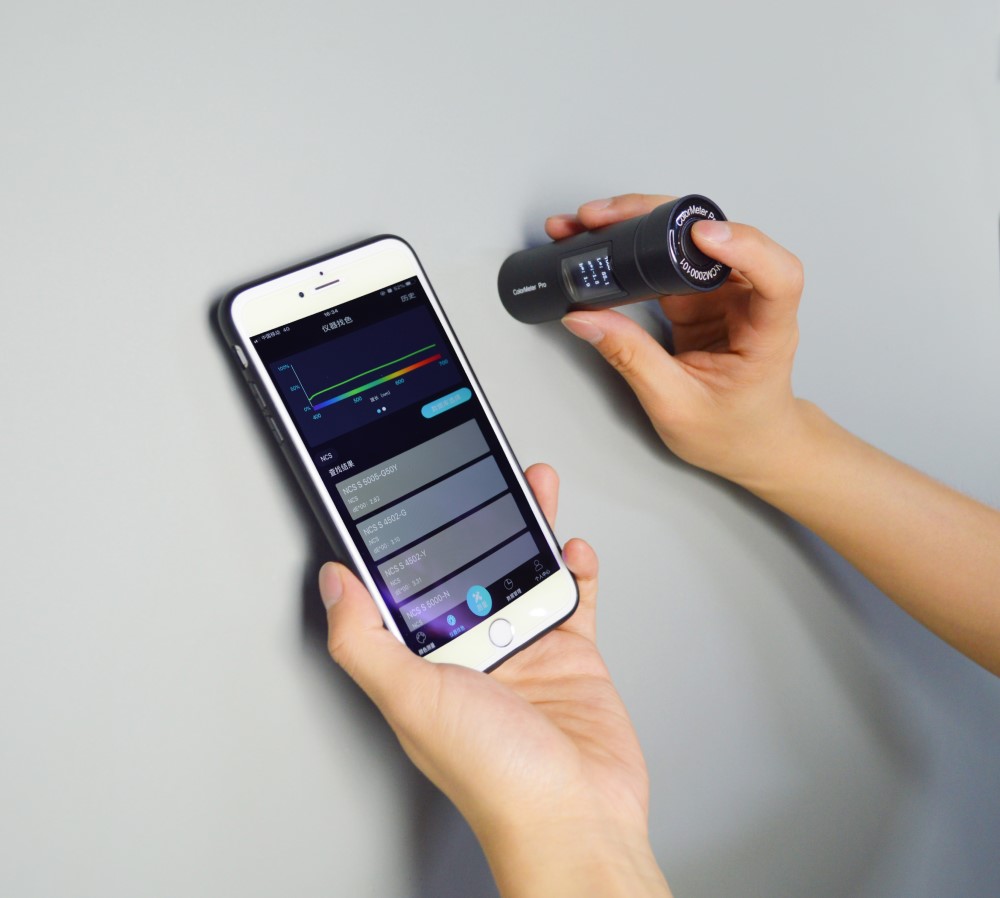

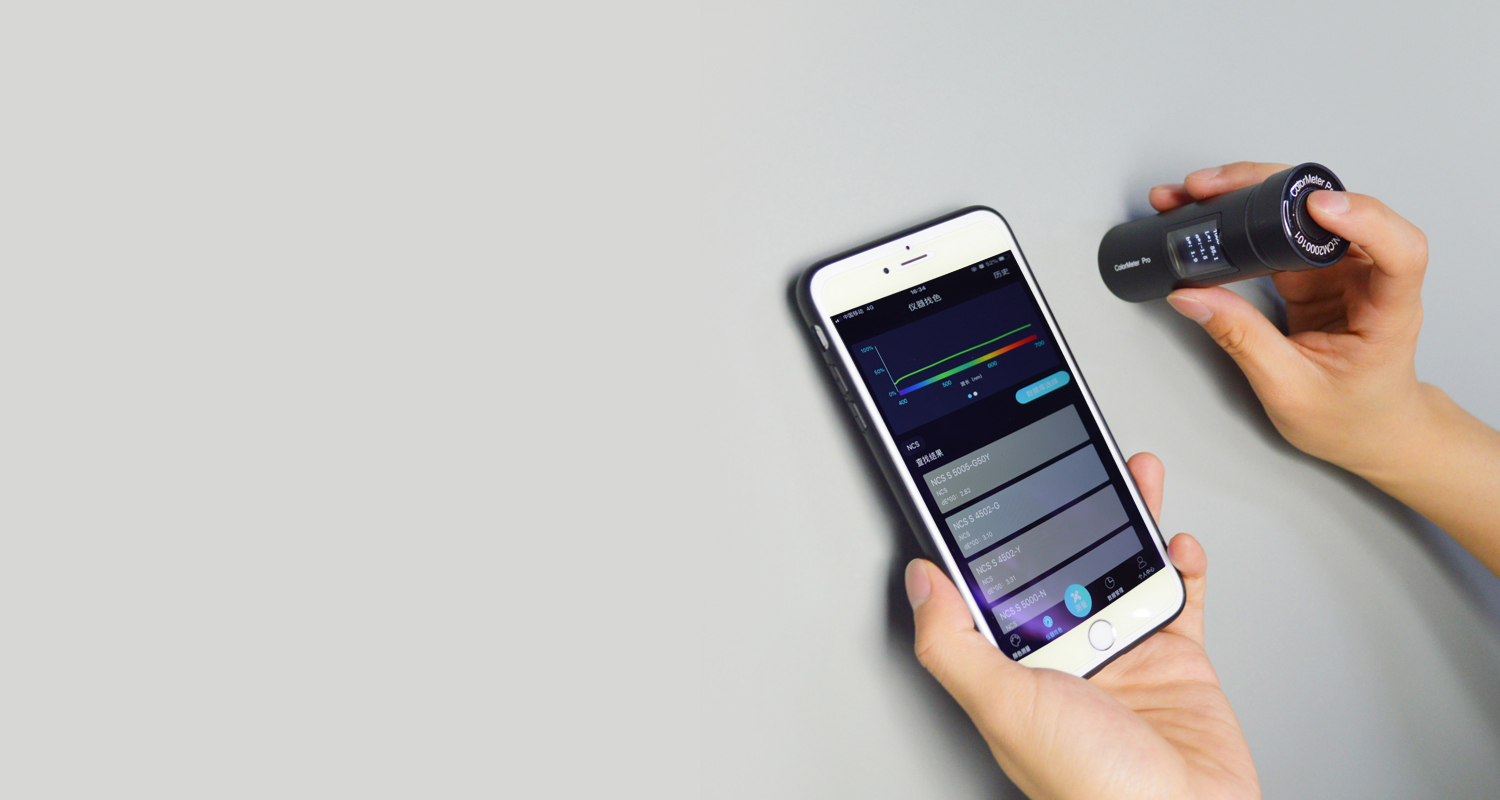

Operates standalone or via ColorMeter Pro/MAX app
-
Cloud database with editable background data
-

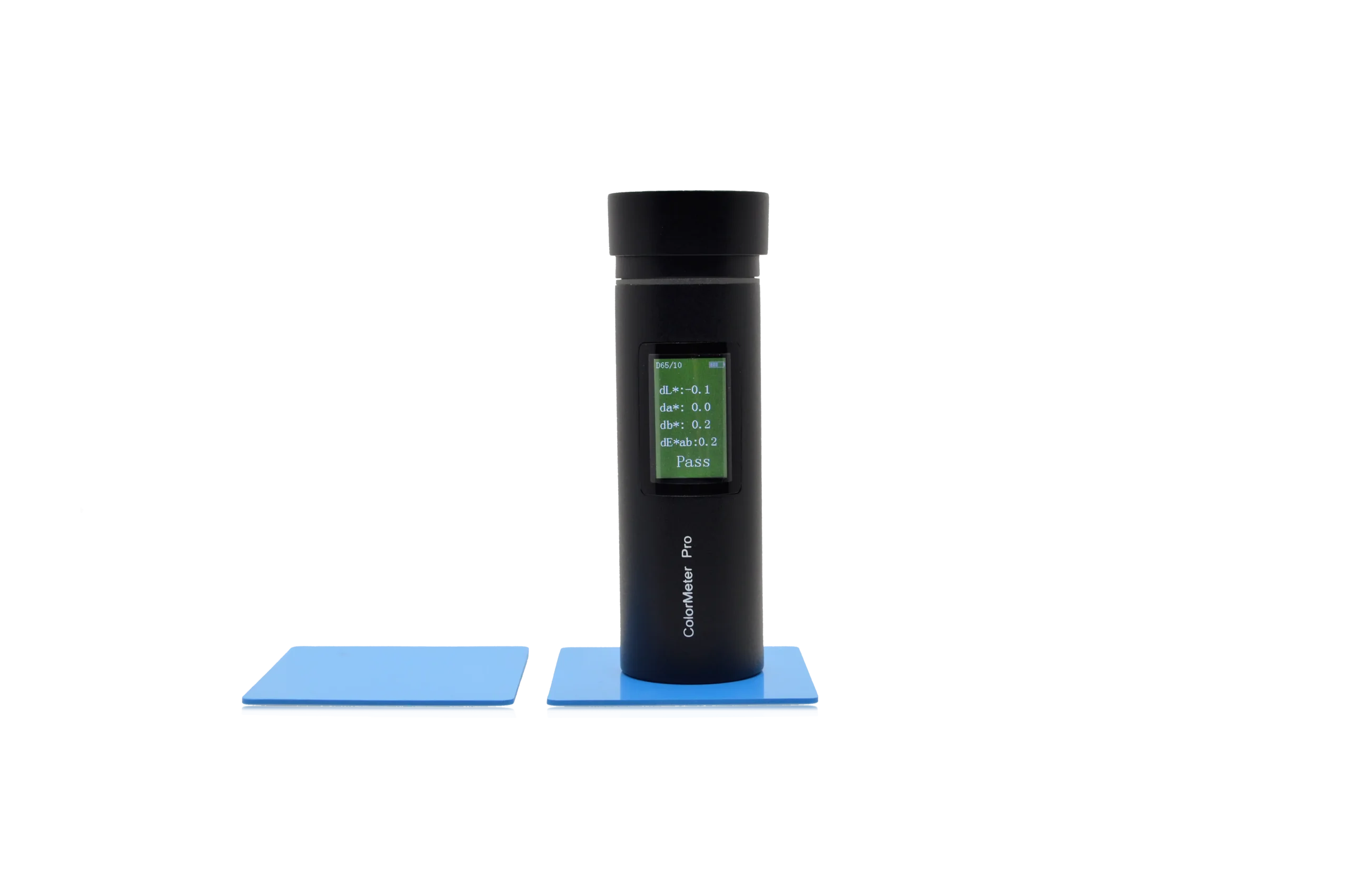

Supports color matching and custom color uploads
Models
| Feature | ColorMeter Pro | ColorMeter MAX |
|---|---|---|
| Measurement Time | 1.5s | 1s |
| Repeatability | ΔE≤0.1* | ΔE≤0.05* |

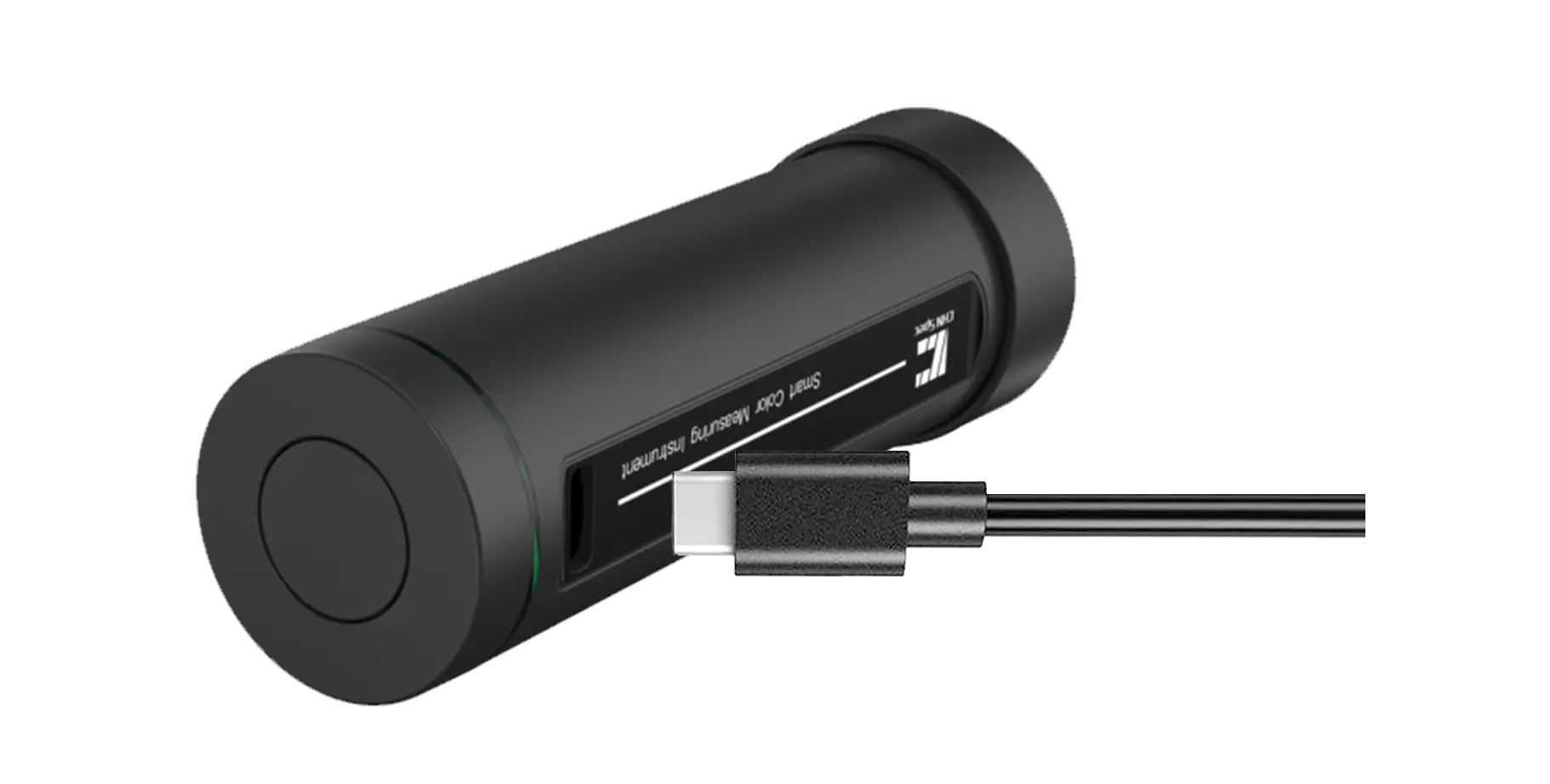

| Interface | USB (charging only) | USB |
| Battery | 4.2V/500mAh | 4.2V/760mAh |
| 5,000 tests | 10,000 tests |
Technical Data
-
Geometry: D/8, Specular Component Included (SCI)
-
Color Spaces & Indices:
CIE-Lab, △Eab, Reflectance curve, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB
Color Difference (ΔEab, ΔEcmc, ΔE94, ΔE*00)
Whiteness Index (ASTM E313-00, E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby)
Yellowness Index (ASTM D1925, ASTM E313-00, E313-73)
Blackness Index (My, dM), Staining Fastness, Color Fastness
Tint (ASTM E313-00), Color Density CMYK(A,T,E,M)
Metamerism Index Milm, Munsell, Opacity, Color Strength -
Light Source: Full Wavelength Balanced LED
-
Test Aperture: 8mm
-
Wavelength Range: 400-700nm
-
Wavelength Interval: 10nm
-
Observer Angles: 2° and 10°
-
Screen: 1.14-inch IPS Full Color (135*240 resolution)
Operational Specifications
-

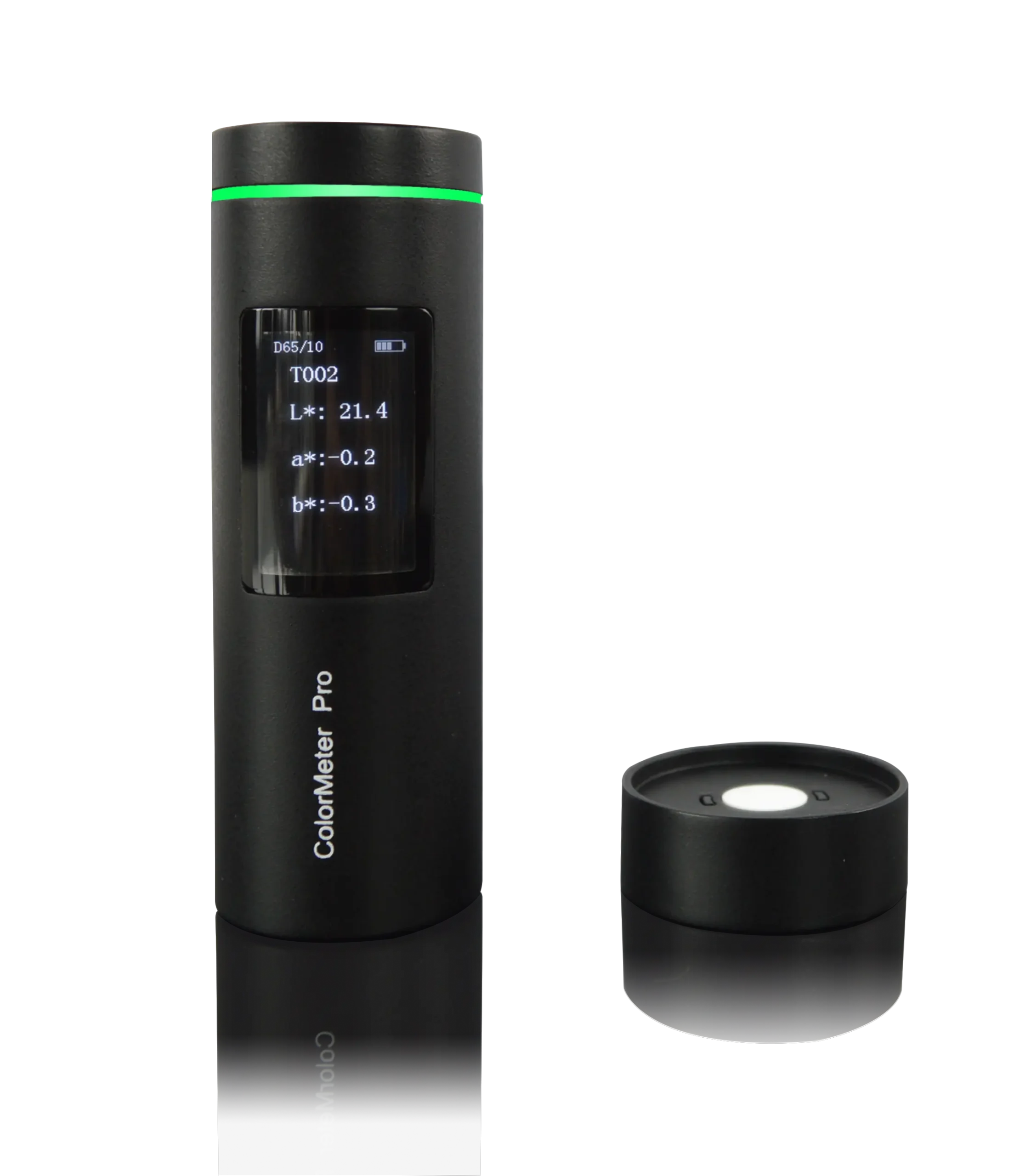

Auto Calibration: Supported
-
Cloud Database: Editable measurement backgrounds
-
Software Support:
Android, iOS, Windows (SE version not supported) -
Language: English, Chinese
-
Illuminants:
A, B, C, D50, D55, D65, D75, F1-F12,
CWF, U30, U35, DLF, NBF, TL83, TL84
Physical Specifications
-
Weight: ≈90g
-
Size: Diameter 31mm × Height 102mm
*Repeatability measured via 30 white tile tests at 5-second intervals post-calibration.
