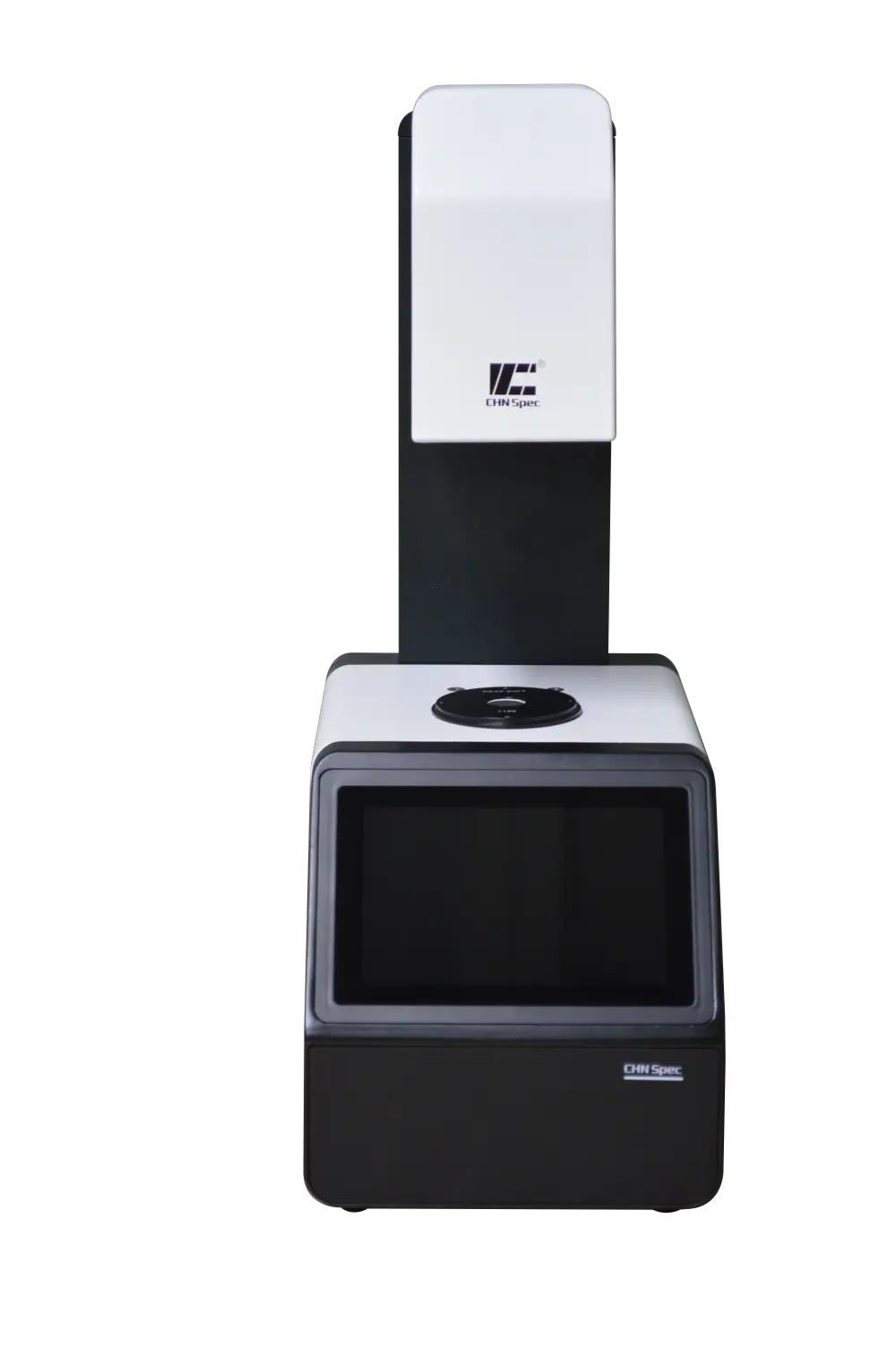

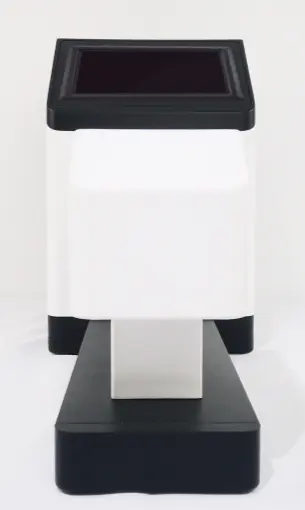

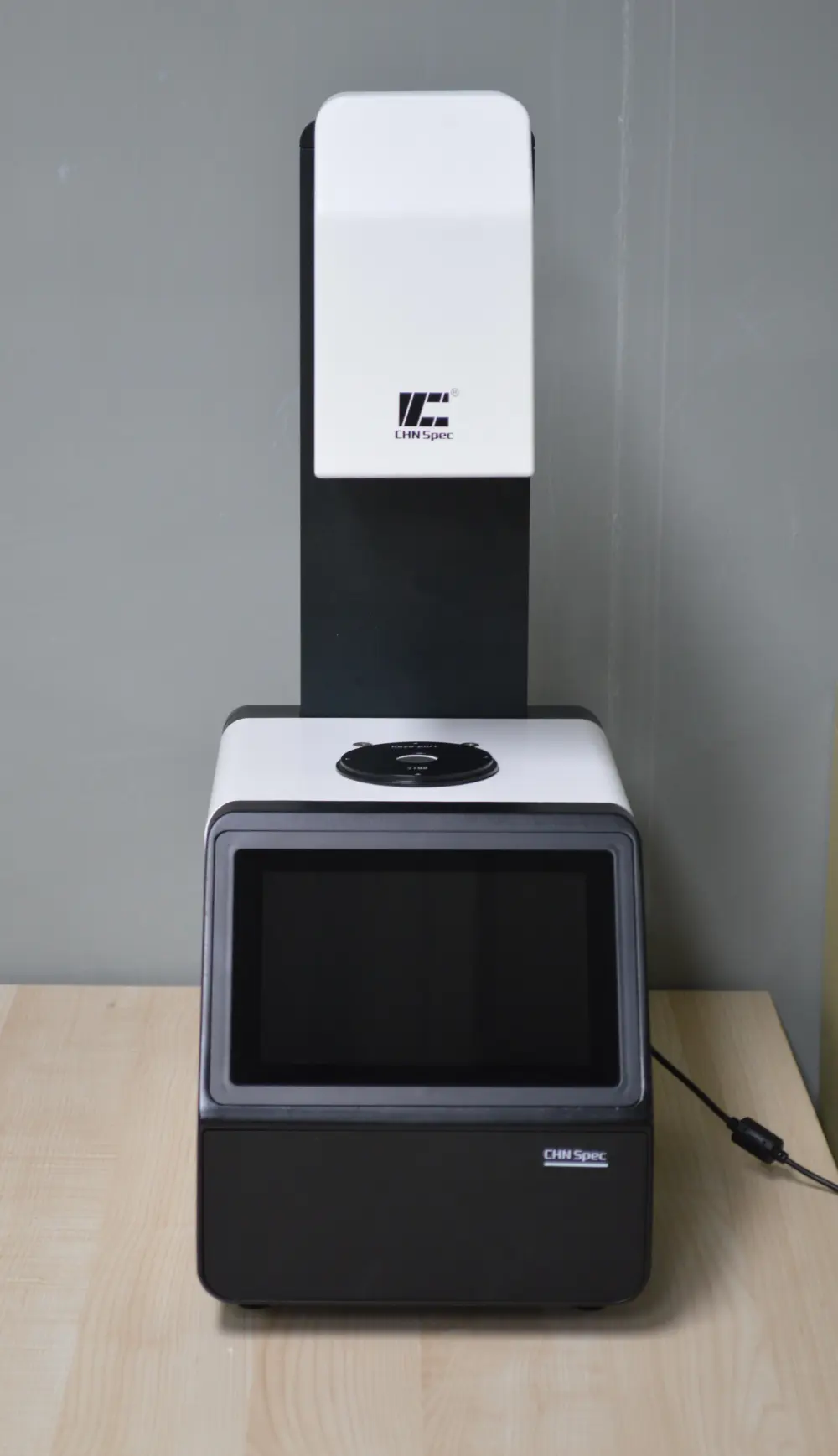

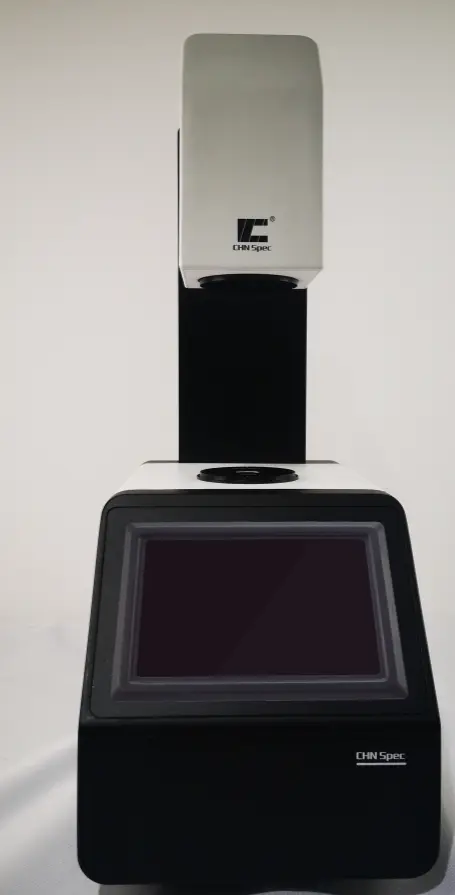

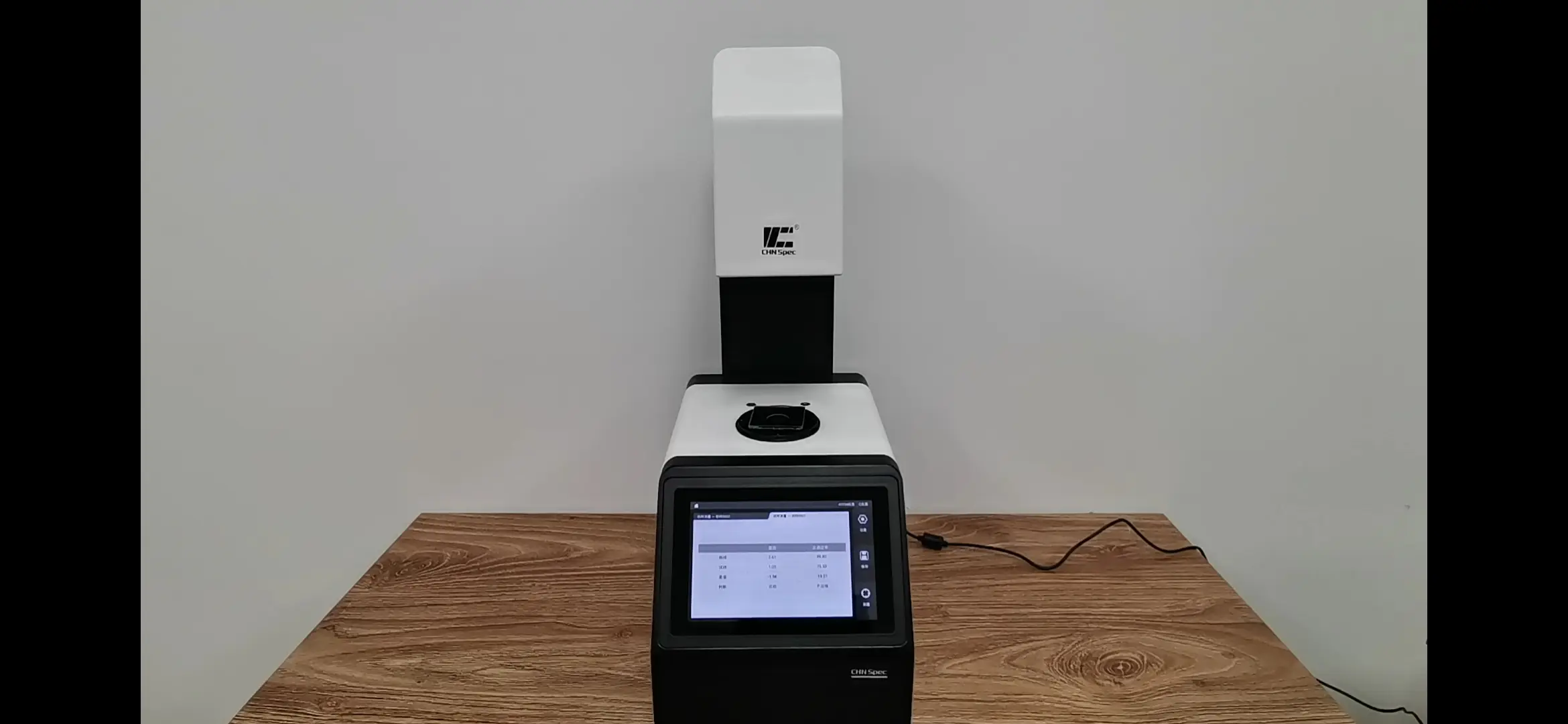

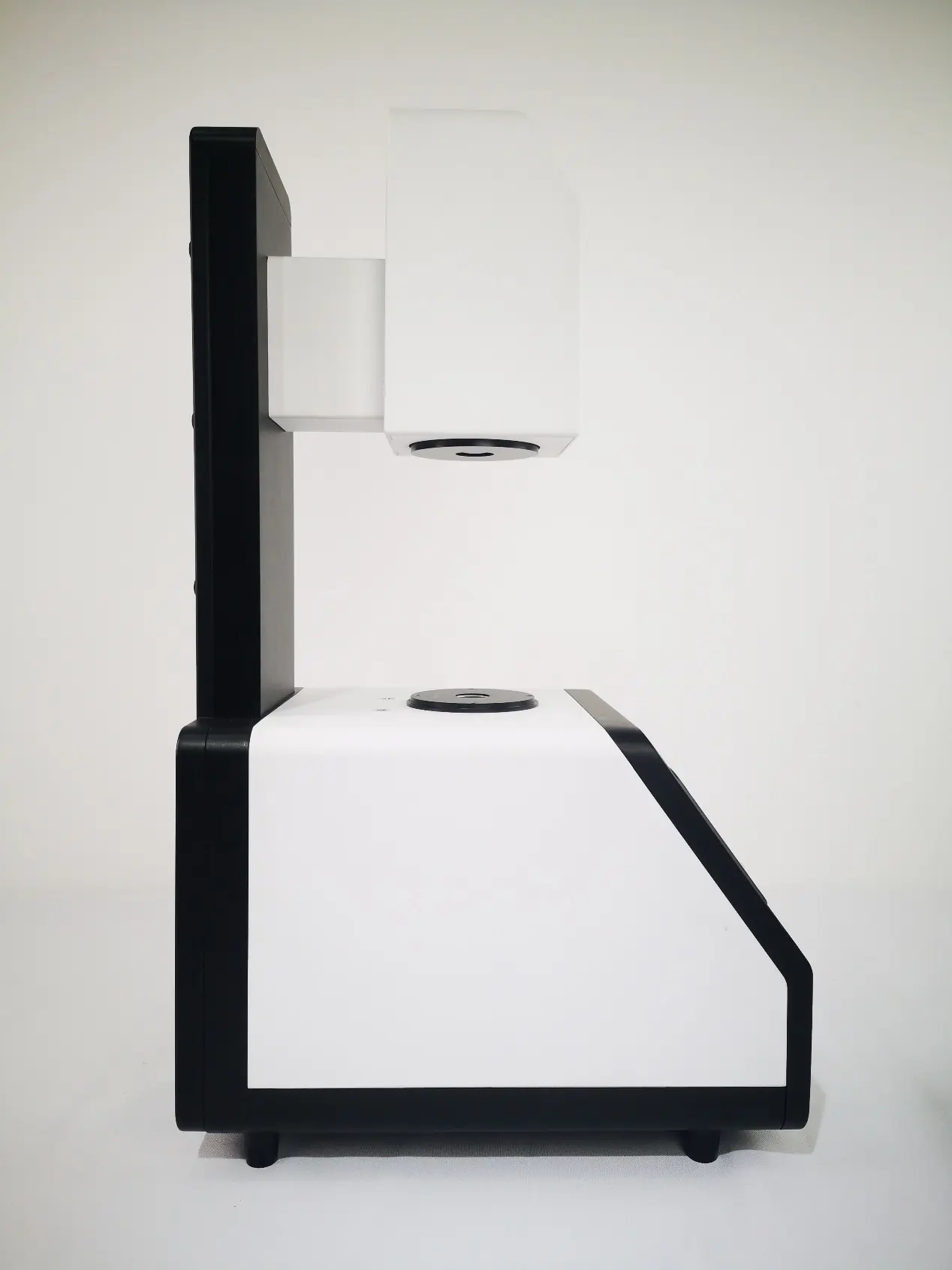

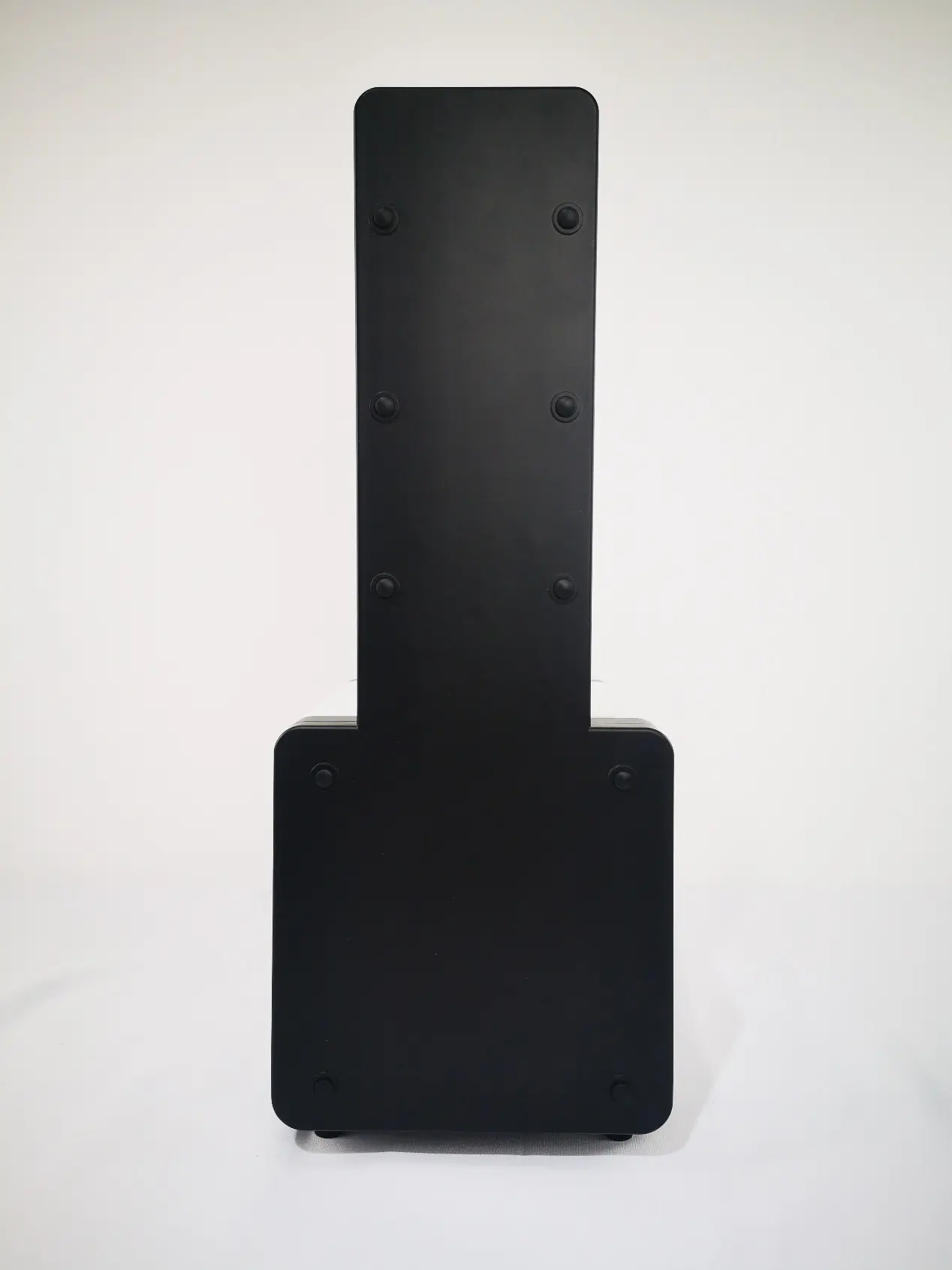

Haze Meter (TH-09, TH-100, TH-110)
Product Features:
• Conforms to: ASTM D1003, ISO 13468, ISO 14782, JIS K 7361, JIS K 7136
• Open measurement area (no sample size limit)
• Signal processing technology blocks external light interference

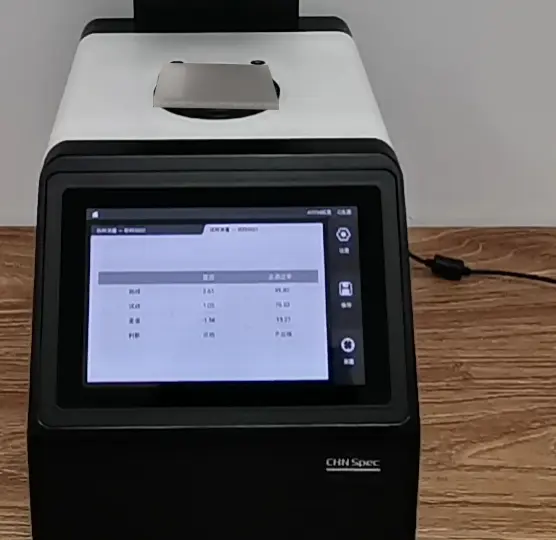

• 5.0-inch TFT display with intuitive interface
• Horizontal/vertical measurement capability
• Accessory storage drawer
• Compact, lightweight design for portability
• LED light source (10-year lifespan)
• Instant use after calibration (3-second measurement)
• Light sources: A, C, D65 for haze/transmittance
Optional Accessories:
• Film Plastic Sheet
• Custom Haze Standards
• Apertures
• Soft Film Fixture (Liquid/Sheet Material)
• Screen Glass
Specifications:
| Parameter | TH-09 | TH-100 | TH-110 |
|---|---|---|---|
| Illuminants | CIE-A, CIE-C | CIE-A, CIE-C | CIE-A, CIE-C, D65 |
| Light Source | LED | LED | LED |
| Spectral Response | CIE Luminosity function Y/V (λ) | ||
| Test Aperture Size | 21 mm | 21 mm | 21 mm / 7 mm |
| Haze Repeatability | 0.1 | 0.08 | 0.05 |
| Memory | 10,000 values | 20,000 values | Mass storage |
| Screen Size | 5 inches | 5 inches | 7 inches |
Common Parameters:
-
Standards: ASTM D1003/D1044, ISO 13468/14782, JIS K 7105/K 7361/K 7136, GB/T 2410-08, JJF 1301-2011
-
Measurement: Haze, Transmittance (T)
-
Geometry: 0/d
-
Measurement Range: 0-100%
-
Resolution: 0.01 unit (haze/transmittance)
-
Transmittance Repeatability: 0.1 unit
-
Sample Thickness: ≤145 mm
-
Interface: USB
-
Power: DC12V
-
Working Temp: 5–40°C (40–104°F)
-
Storage Temp: -20–45°C (-4–113°F)
-
Size: 310 × 215 × 540 mm (L×W×H)
-
Weight: 6 kg
-
Standard Accessory: Haze QC Software
-
Sphere Diameter: 154 mm
